FCA716/FCA726180° INDUSTRIAL-GRADE INCLINOMETER WITH 0.01° ACCURACY

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: TL735-TTL

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 169

Packaging Details: carton box with sponge

Delivery Time: 5 days for samples

Payment Terms: T/T,paypal

Supply Ability: 5000/month

Get Best Price
Contact Now
Specifications
Highlight:

IP67 MEMS Gyro Sensor

,

5G Antenna MEMS Gyro Sensor

,

Low Drift MEMS Gyroscope Sensor

Power Supply:
DC9~36V
Output Optional:
TTL / RS232 / RS485 Optional
Protection Grade:
IP67
Measure Range:
±10~±180°
Anti-vibration:
10grms、10~1000Hz
Weight:
≤150g( Without Cable )
Power Supply:
DC9~36V
Output Optional:
TTL / RS232 / RS485 Optional
Protection Grade:
IP67
Measure Range:
±10~±180°
Anti-vibration:
10grms、10~1000Hz
Weight:
≤150g( Without Cable )
Description

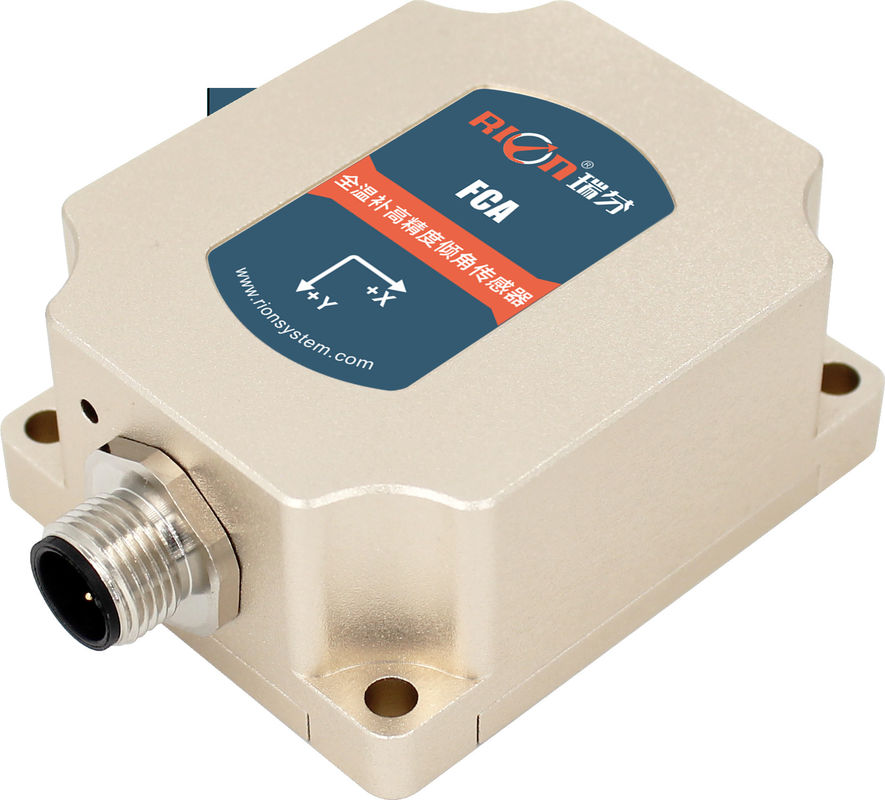

FCA716/FCA726180° INDUSTRIAL-GRADE INCLINOMETER WITH 0.01° ACCURACY

FCA716/FCA726180° INDUSTRIAL-GRADE INCLINOMETER WITH 0.01° ACCURACY



APPLICATION

 Single / dual axis inclination measurement

 Range ±1 ~ ±180 ° optional

 Accuracy: 0.008°

 DC 9 ~ 36V wide voltage input

 Wide temperature operation -40 ~ + 85 ℃

 Resolution 0.001 °

 IP67 protection grade

 High vibration resistance> 100g

 Aviation connector


 APPLICATION

 Bridge and dam monitoring                         Wind turbine wind tower tilt monitoring

Engineering vehicle leveling                         Angle control of medical equipment

 Railway gauge and gauge leveling              Attitude navigation of underground drilling rigs

 Geological equipment tilt monitoring            Mining machinery, oil drilling equipment

 Pitch angle measurement of directional satellite communication antennas


 GENERAL DESCRIPTION

FCA716/FCA726 is a small volume high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts RS485 / RS232 serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane.The product integrates the latest technology MEMS tilting unit, the measuring range up to ± 180 °, and the full-scale accuracy is 0.01 °, which can easily achieve dual-axis and single-axis tilt measurement.The product belongs to a real industrial grade

product, with reliable and stable performance, good scalability, and multiple output options. It

 is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.


▶ SPECIFICATIONS

FCA716/FCA726180° INDUSTRIAL-GRADE INCLINOMETER WITH 0.01° ACCURACY 0FCA716/FCA726

CONDITION

PARAMETERS

UNIT

Measure range



±10

±30

±60

±90

±180

°

Measure axis



X  Y

X  Y

X  Y

X  Y

X

Axis

Resolution



0.001

0.001

0.001

0.001

0.001

°

Measure accuracy

MAXE

Room temp.

0.01

0.01

0.015

0.02

0.02

°

RMSE

Room temp.

0.008

0.008

0.008

0.009

0.009

°

Zero Temp.coefficient

-4085℃

±0.0005

±0.0005

±0.0005

±0.0005

±0.0005

°/℃

Sensitivity Temp-coefficient

-4085℃

≤0.01

≤0.01

≤0.01

≤0.01

≤0.01

%/℃

Power on time



0.5

0.5

0.5

0.5

0.5

S

Response frequency

20Hz

Interface

TTL / RS232 / RS485 optional

Communication protocol

RION 68 protocol / MODBUS RTU protocol optional

EMC

According to EN61000 and GBT17626

MTBF

98000 hours/times

Insulation Resistance

≥100

Shockproof

100g@11ms,3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms,101000Hz

Protection grade

IP67

Cables

Standard configuration 2m, M12 Aviation plug with PVC shielded cable, cable weight ≤120g

Weight

≤150g( without cable )


 ELECTRONIC CHARACTERISTICS

FCA716/FCA726180° INDUSTRIAL-GRADE INCLINOMETER WITH 0.01° ACCURACY 1PARAMETERS

CONDITION

MIN

STANDARD

MAX

UNIT

Power supply

Standard

9

12

24

36

V

Working current

No load



21

12



mA

Working temperature



-40



+85

Store temperature



-40



+85


FCA716/FCA726180° INDUSTRIAL-GRADE INCLINOMETER WITH 0.01° ACCURACY 2

FCA716/FCA726180° INDUSTRIAL-GRADE INCLINOMETER WITH 0.01° ACCURACY 3

FCA716/FCA726180° INDUSTRIAL-GRADE INCLINOMETER WITH 0.01° ACCURACY 4
