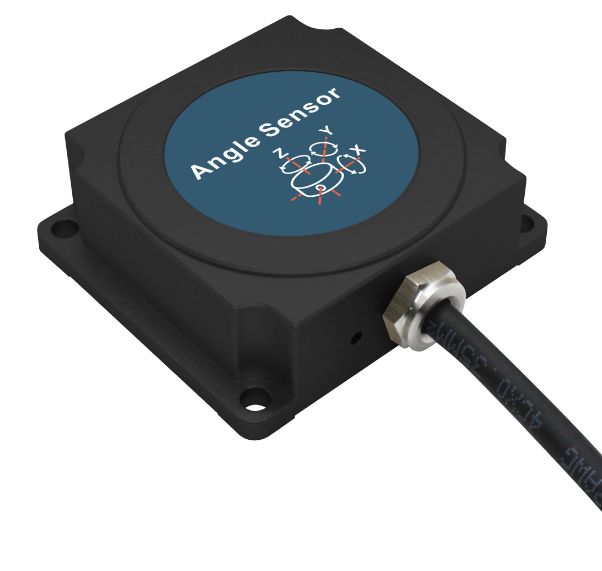

TL725P IMU GYRO FOR FARM MACHINERY REAL TIME ANGULAR RATE OUTPUT

Name: TL725P IMU GYRO FOR FARM MACHINERY REAL TIME ANGULAR RATE OUTPUT
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: TL725P
Price: 43 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: TL725P

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 43

Packaging Details: carton box with sponge

Delivery Time: 5 days for samples

Payment Terms: L/C, T/T

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Ratings & Reviews

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      MEMS Three Axis GYRO, 5G Antenna Three Axis GYRO, Billboards MEMS Gyroscope Sensor


Three-axis Attitude:	Azimuth ±180°, Roll Angle±180°, Pitch Angle±90	Bandwidth:	>100Hz
Nonlinear:	0.1% Of FS	Startup Time:	500ms
Current:	35mA(12V)	Vibration:	5g~10g

Three-axis Attitude:	Azimuth ±180°, Roll Angle±180°, Pitch Angle±90
Bandwidth:	>100Hz
Nonlinear:	0.1% Of FS
Startup Time:	500ms
Current:	35mA(12V)
Vibration:	5g~10g

Description

TL725P IMU GYRO FOR FARM MACHINERY REAL TIME ANGULAR RATE OUTPUT

TL725P IMU GYRO FOR FARM MACHINERY REAL TIME ANGULAR RATE OUTPUT

▶ MAIN FEATURE

★ Horizontal azimuth attitude angle output

★ Real time angular rate output

★ Long lifespan, strong stability

★ Forward axis acceleration

★ All solid state

★ Compact and lightweight design

★ RS232/RS485 output options

★ DC5-12V or DC9-36V power supply

▶ APPLICATION

★ Automated agricultural machinery

★ Precision agriculture

★ Combination Harvesters

★ Farming machine

TL725P		PARAMETERS
Three-axis attitude		Azimuth ±180°, Roll angle±180°, Pitch angle±90
Bandwidth		>100Hz
Nonlinear		0.1% of FS
Three-axis gyroscope	Gyro Range	250°/s
	Angle random walk coefficient (allan)	0.25°/sqrt(h)
	Bias stability mg (10s smooth)	8.5°/h
Three-axis acceleration	Range	±4g
	Resolution	0.001g
	Accuracy	1mg
	Bias instability°/h (allan)	0.05mg
	Speed random walk coefficient (allan)	0.015m/s/sqrt(h)
	Bias stability°/h(10s average)	0.15mg
Startup time		500ms
Input voltage		+9~36V
Current		35mA(12V)
Working temp.		-40 ~ +80℃
Storage temp.		-40 ~ +85℃
Vibration		5g~10g
Shock		200g pk, 2ms, ½sine
Working life		10 Year
Output frequency		1Hz~200Hz Settable
Output signal		RS232 / RS485 / (Optional)
MTBF		≥98000 Hours/times
Insulation resistance		≥100MΩ
Shockproof		100g@11ms/3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms/10～1000Hz
Protection grade		IP67
Cable		Standard 1 m 4 pin shield wire
Weight		≤135g (including 1 meter cable)
