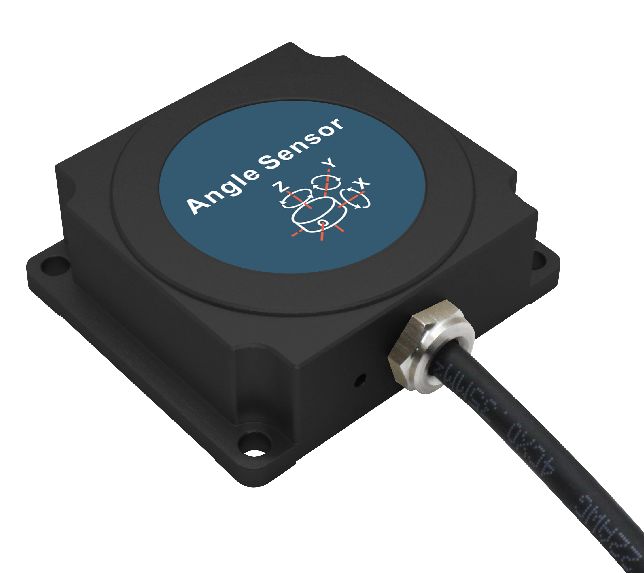

TL725P-CAN2.0A/B IMU GYRO FOR FARM MACHINERY CAN2.0A/B OUTPUT OPTIONAL

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: TL725P-C2/C3

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 43

Packaging Details: carton box with sponge

Delivery Time: 5 days for samples

Payment Terms: paypal T/T

Supply Ability: 5000/month

Get Best Price
Contact Now
Specifications
Highlight:

Drone MEMS Gyroscope Sensor

,

IP67 Waterproof MEMS Gyroscope Sensor

,

MEMS 3 Axis Gyroscope Sensor

Three-axis Attitude:
Relative Heading ±180°, Roll Angle ±180°, Pitch Angle ±90°
Bandwidth:
>100Hz
Nonlinear:
0.1% Of FS
Startup Time:
250ms
Input Voltage:
+9~36V
Current:
35mA(12V)
Three-axis Attitude:
Relative Heading ±180°, Roll Angle ±180°, Pitch Angle ±90°
Bandwidth:
>100Hz
Nonlinear:
0.1% Of FS
Startup Time:
250ms
Input Voltage:
+9~36V
Current:
35mA(12V)
Description
TL725P-CAN2.0A/B IMU GYRO FOR FARM MACHINERY CAN2.0A/B OUTPUT OPTIONAL

TL725P-CAN2.0A/B IMU GYRO FOR FARM MACHINERY CAN2.0A/B OUTPUT OPTIONAL





▶ MAIN FEATURE

★ Horizontal relative heading and attitude angle output

★ Real-time angular rate output

★ Long life and strong stability

★ Forward axis acceleration

★ Compact and lightweight design

★ CAN2.0A/B output optional

★ All solid state

★ Light weight

★ DC9~36V power supply



APPLICATION

★ Automated agricultural machinery

★ Precision agriculture

★ Combination Harvesters

★ Farming machine



SPECIFICATIONS

TL725P-C2/C3 PARAMETERS
Three-axis attitude

relative heading ±180°, Roll angle ±180°,

Pitch angle ±90°

Bandwidth >100Hz
Nonlinear 0.1% of FS
Accelerometer accelerometer range ± 2g, ± 4g, ± 8g, ± 16g can be set
Acceleration resolution 0.001g
Acceleration accuracy 1mg
Bias instability (allan) 0.05mg
Speed random walk coefficient (allan) 0.015m/s/sqrt(h)
Zero bias stability (10s mean) 0.15mg
Gyro Gyro Range 250 °/s, 500 °/s can be set
Angular random walk coefficient (allan) 0.25°/sqrt(h)
Zero bias stability (10s smooth) 8.5°/h
Startup time 250ms
Input voltage +9~36V
Current 35mA(12V)
Working temp -40 ~ +80℃
Storage temp -40 ~ +85℃
Vibration 5g~10g
Impact 200g pk, 2ms, ½sine
Working life 10 years
Output frequency 1Hz~200Hz Settable
Output signal CAN 2.0A / CAN2.0B(Optional)
MTBF ≥50000 Hours/times
Insulation resistance ≥100 MΩ
Shockproof 100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cable Standard 1 m 4 pin shield wire
Weight ≤135g (including 1 meter standard cable)

TL725P-CAN2.0A/B IMU GYRO FOR FARM MACHINERY CAN2.0A/B OUTPUT OPTIONAL 0

TL725P-CAN2.0A/B IMU GYRO FOR FARM MACHINERY CAN2.0A/B OUTPUT OPTIONAL 1

TL725P-CAN2.0A/B IMU GYRO FOR FARM MACHINERY CAN2.0A/B OUTPUT OPTIONAL 2
