Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: TL720D-232
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $60.00/Pieces >=1 Pieces
Packaging Details: Carton
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 1000 Piece/Pieces per Month
Usage: |
Attitude Sensor |
Output: |
RS485 |
Power Supply: |
9~36V |
Heading Range: |
±180 |
Current: |
40(5V) |
Azimuth Accuracy (°/min): |
<0.2 |
Weight: |
152g |
Working Temp.(℃): |
-40 ~ +80 |
Usage: |
Attitude Sensor |
Output: |
RS485 |
Power Supply: |
9~36V |
Heading Range: |
±180 |
Current: |
40(5V) |
Azimuth Accuracy (°/min): |
<0.2 |
Weight: |
152g |
Working Temp.(℃): |
-40 ~ +80 |
Agriculture vehicle angle sensor vehichle yaw angle sensor
General Description
TL720D is a high-precision gyroscope developed by RION- TECH based on the latest MEMS inertial measurement platform.
It outputs the horizontal azimuth angle of the object in real time by performing dynamic attitude algorithm on the angular rate of the gyroscope; angular rate; forward axis body acceleration. The product integrates RION-TECH patented inertial navigation algorithm. Through the multi-model data fusion of the attitude angle, the short-term drift of the gyroscope can be solved to the greatest extent.

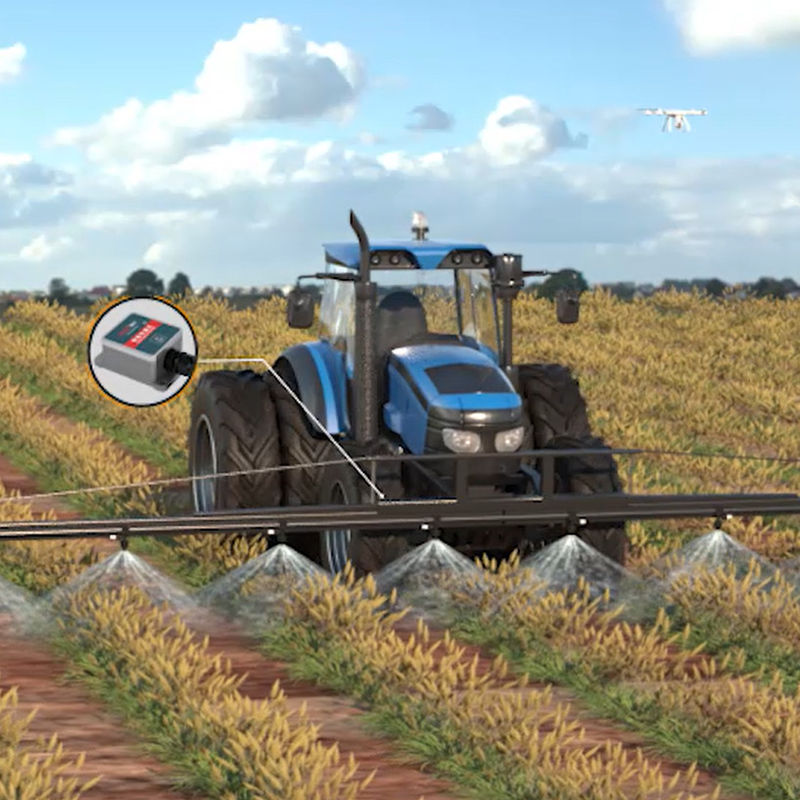

This product is specially used for automated agricultural machinery, precise operation and efficiency, and is an essential component of a new generation of automated precision agricultural control.
● Azimuth angle output
● Strong vibration resistance
● Light weight
● Long life,strong stability
● Cost-effective
● All solid state
● Compact & light design
● RS232/RS485 output optional
● DC5V power supply
● AGV truck
● Platform stability
● Auto safety system
● electricity commercial vehicle
● Industrial control
● Robot
● Car Navigation
● Turck-mounted satellite antenna equipment
TL720D | Parameters | |
Mesure range | Azimuth Angle (±180) | |
Acquisition bandwidth | >100Hz | |
Resolution | 0.01° | |
Azimuth accuracy | <0.1°/m | |
Position accuracy | <2mm/m (Converted according to the angle) | |
Nonlinear | 0.1% of FS | |
Gyro Angular Velocity Range | 250°/s | |
Pitch measurement range | ±90° | |
Pitch measurement accuracy | 0.25°(1σ) | |
Roll measurement range | ±180° | |
Roll measurement accuracy | 0.25°(1σ) | |
Accelerometer | Accelerometer range | ±4g |
Acceleroemter resultuion | 0.001g | |
Acceleroemter accurac | 5mg | |
Bias instability (allan) | 0.05mg | |
Speed random walk coefficient (allan) | 0.015m/s/sqrt(h) | |
Bias stability (10s average) | 0.15mg | |
Gyro | Bias instability (allan) | 5.0°/h |
Angle random walk coefficient (allan) | 0.30°/sqrt(h) | |
Bias stability(10s average value) | 10°/h | |
Starting time | 200mS | |
Input Voltage | 9~36VDC / 5VDC (Optional) | |
Current | 30mA(12V) | |
Working Temp. | -40℃ ~ +80℃ | |
Storage Temp | -40℃ ~ +85℃ | |
Vibration | 5g~10g | |
Impact | 200g pk,2ms,½sine | |
Working life | 10 years | |
Output rate | 1Hz~100Hz can set | |
Output signal | RS232 or RS485 | |
MTBF | ≥50000 hours /times | |
Insulation resistance | ≥100 Megohm | |
Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | |
Anti-vibration | 10grms,10~1000Hz | |
Protecting | IP67 | |
Weight | ≤135g (including 1 meter standard cable) |
Dimension
