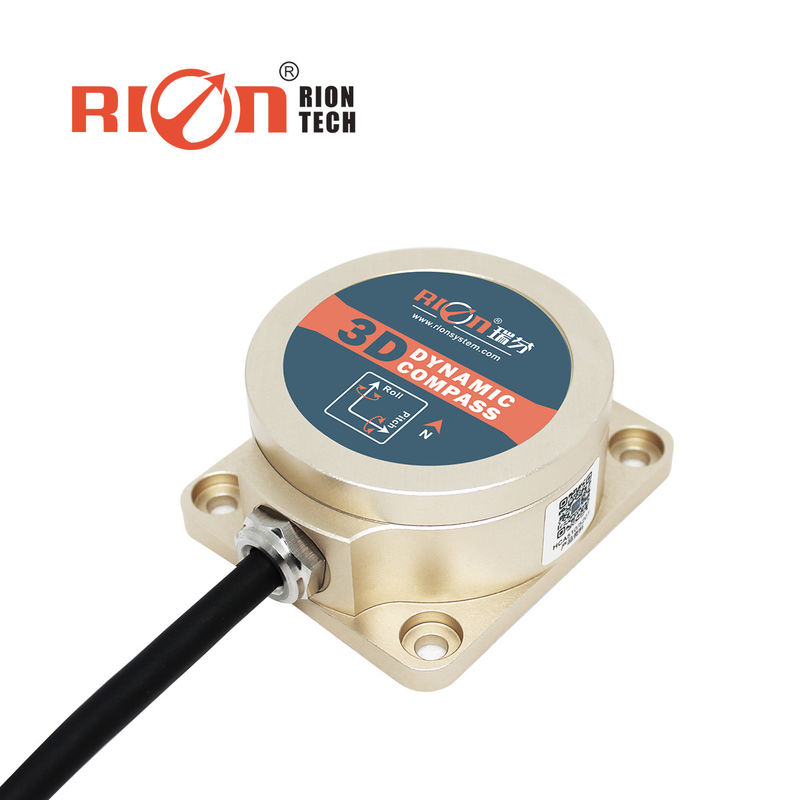

HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HCM385B-485

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $445.00/Units

Packaging Details: 1pcs compass sensor in each box with safe sponge inside , 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 1000 Unit/Units per Month compass sensor are avaliable

Get Best Price
Contact Now
Specifications
Highlight:

Magnetic Heading Finder Sensor

,

Tilt Calibration Finder Sensor

,

Tilt Calibration Magnetic Heading Sensor

Usage:
Heading Finder
Theory:
Magneitc Heading Finder
Output:
RS485
Best Heading Accuracy:
0.5deg
Pitch Range:
+/-85deg
Weight:
130g
Output Frequency:
20Hz
Production:
IP67
Usage:
Heading Finder
Theory:
Magneitc Heading Finder
Output:
RS485
Best Heading Accuracy:
0.5deg
Pitch Range:
+/-85deg
Weight:
130g
Output Frequency:
20Hz
Production:
IP67
Description
HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration

HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration





Products Desc.

HCM380B/HCM385B-MP is a cost-effective 3D electronic compass. It adopts 24-point calibration method, which has stronger anti-interference and easy operation, and uses high-precision accelerometer for tilt compensation, so that it can provide high-precision heading information at any tool surface at roll within ±180 °For fixed interference, it can still provide high-precision measurement data, RS232, RS485, TTL multiple communication interface methods are optional.

The product integrates a three-axis magnetometer and a three-axis accelerometer, with high resolution and strong anti-noise capability. It is a high-performance, high-stability product with small size and low power consumption; It is widely used in many fields such as handheld devices, mobile devices, antenna stabilization, vehicles, and system integration. The product can be ordered with a sealed package or a circuit board.


Application :


★ Marine Navigation Mapping

★ Infrared Imager

★ ROV Underwater Robot Navigation

★ GPS Integrated Navigation

★ Oceanographic Tester

★ Map Complementary Plotter

★ Antenna Servo Control


Main Feature


★ Heading Accuracy: 0.5°

★ Roll Measure Range:±180°

★ Tilt Resolution: 0.1°

★ Tilt Accuracy: <0.2°(Full Range)

★ Working Temp.: -40℃~+85℃

★ Size : L57×W49×H25.5mm

★ With Hard And Soft Magnetic Calibration

★ RS232/RS485/TTL Output






HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration 0HCM380B/HCM385B-MP PARAMETERS
Heading Best heading Accuracy 0.5°
Resolution 0.1°
Tilt Pitch accuracy 0.1°<15°(Measure Range)
0.1°<30°(Measure Range)
0.1°<60°(Measure Range)
0.2°<85°(Measure Range)
Pitch range ±85°
Roll accuracy 0.1°<15°(Measure Range)
0.1°<30°(Measure Range)
0.1°<60°(Measure Range)
0.2°<180°(Measure Range)
Roll range ±180°
Resolution 0.1°
Calibration Hard Magnetic Calibration Available
Soft Magnetic Calibration Available
Magnetic Filed Interference Calibration Method 24 calibration points
physical properties Dimension L57×W49×H25.5mm
Weight 130g(not include cable)
RS232/RS485/TTL Direct lead cable
Interface features Start Delay <50ms
Max Output Rate 20Hz/s
Communication Rate 2400~115200baud
Output Format Binary High Performance Protocol
Power Power Voltage DC+5V
Current(Max) 30mA
Ideal Current 26mA
Sleep Mode TBD
Environment Working Temp. -40℃~+85℃
Storage Temp. -40℃~+85℃
Anti-Shock Performance 100g
Protection IP67
Electromagnetic Compatibility According to EN61000 and GBT17626
MTBF ≥98000 Hour/Time
Insulation Resistance ≥100 MΩ
Anit-Impact 100g@11ms, Axial Direction (Half Sinusoid)
Anti--Shock 10grms,10~1000Hz





HCM380B single board cable wire connection :

Cable Color

Definition

BLACK RED YELLOW GREEN

GND

Power negative

DC 5V

Power positive

TTL/RS232(RXD)

Or RS485(D-)

TTL/RS232(TXD)

Or RS485(D+)



HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration 1HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration 2

HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration 3
