Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: TL720D-232-AGM
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $60.00/Pieces >=1 Pieces
Packaging Details: Carton
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 1000 Piece/Pieces per Month
Usage: |
Guide Farm Vehicle |
Output: |
RS232 |
Power Supply: |
9~36V |
Azimuth Accuracy (°/min): |
<0.2 |
Output Rate: |
5Hz,15Hz,25Hz,50Hz,100Hz Can Set |
Weight: |
152g |
Usage: |
Guide Farm Vehicle |
Output: |
RS232 |
Power Supply: |
9~36V |
Azimuth Accuracy (°/min): |
<0.2 |
Output Rate: |
5Hz,15Hz,25Hz,50Hz,100Hz Can Set |
Weight: |
152g |

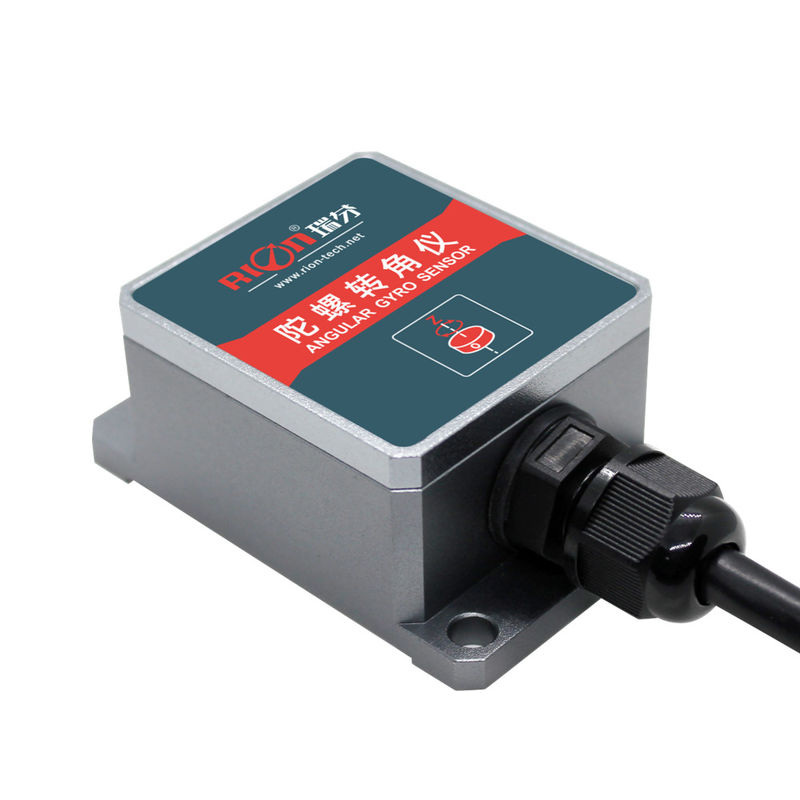

dynamic angular rate sensor for farm vehicle heading attitude meter to guide farm car navigation
General Description
TL720D is specially used for robot car, AVG vehicle azimuth orientation, attitude control and other related applications, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
.● Azimuth angle output
● Long life,strong stability
● Compact & light design
● RS232/RS485 output optional
● DC 9~36V power supply
● AGV truck
● farm vehicle
● electricity commercial vehicle
● Platform stability
● Auto safety system
| TL720D | Parameters | |
| Mesure range | Azimuth Angle (±180) | |
| Acquisition bandwidth | >100Hz | |
| Resolution | 0.01° | |
| Azimuth accuracy | <0.1°/m | |
| Position accuracy | <2mm/m (Converted according to the angle) | |
| Nonlinear | 0.1% of FS | |
| Gyro Angular Velocity Range | 250°/s | |
| Pitch measurement range | ±90° | |
| Pitch measurement accuracy | 0.25°(1σ) | |
| Roll measurement range | ±180° | |
| Roll measurement accuracy | 0.25°(1σ) | |
| Accelerometer | Accelerometer range | ±4g |
| Acceleroemter resultuion | 0.001g | |
| Acceleroemter accurac | 5mg | |
| Bias instability (allan) | 0.05mg | |
| Speed random walk coefficient (allan) | 0.015m/s/sqrt(h) | |
| Bias stability (10s average) | 0.15mg | |
| Gyro | Bias instability (allan) | 5.0°/h |
| Angle random walk coefficient (allan) | 0.30°/sqrt(h) | |
| Bias stability(10s average value) | 10°/h | |
| Starting time | 200mS | |
| Input Voltage | 9~36VDC / 5VDC (Optional) | |
| Current | 30mA(12V) | |
| Working Temp. | -40℃ ~ +80℃ | |
| Storage Temp | -40℃ ~ +85℃ | |
| Vibration | 5g~10g | |
| Impact | 200g pk,2ms,½sine | |
| Working life | 10 years | |
| Output rate | 1Hz~100Hz can set | |
| Output signal | RS232 or RS485 | |
| MTBF | ≥50000 hours /times | |
| Insulation resistance | ≥100 Megohm | |
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
| Protecting | IP67 | |
| Weight | ≤135g (including 1 meter standard cable) | |
Dimension
