Usage: |
Attitude Sensor |
Output: |
RS485 |
Power Supply: |
9~36V |
Heading Range: |
±180 |
Current: |
40(5V) |
Azimuth Accuracy (°/min): |
<0.2 |
Output Rate: |
5Hz,15Hz,25Hz,50Hz,100Hz Can Set |
Weight: |
152g |
Working Temp.(℃): |
-40 ~ +80 |
Usage: |
Attitude Sensor |
Output: |
RS485 |
Power Supply: |
9~36V |
Heading Range: |
±180 |
Current: |
40(5V) |
Azimuth Accuracy (°/min): |
<0.2 |
Output Rate: |
5Hz,15Hz,25Hz,50Hz,100Hz Can Set |
Weight: |
152g |
Working Temp.(℃): |
-40 ~ +80 |

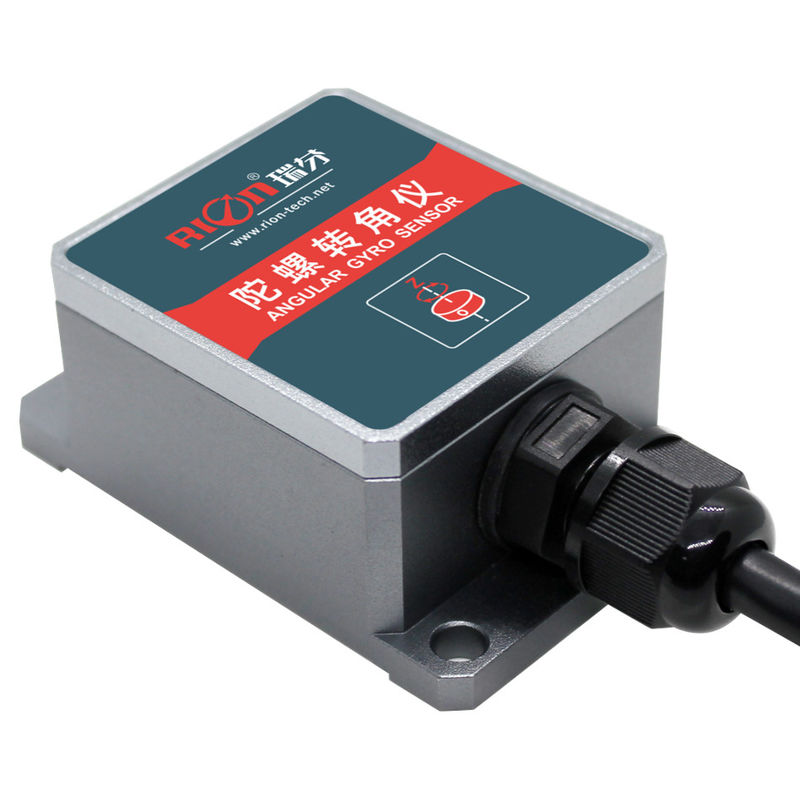

Attitude sensor for commercial vehicle accurate pitch roll sensor for electrical vehicle
General Description
TL720D is RION company newly developed Small volume IMU dynamic attitude sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product inernal integrated RION’s Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .
This product is specially used for robot car, AVG vehicle azimuth orientation, attitude control and other related applications, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
.● Azimuth angle output ● Strong vibration resistance ● Light weight
● AGV truck
● Platform stability
● Auto safety system
● electricity commercial vehicle
● Industrial control
● Robot
● Car Navigation
● Turck-mounted satellite antenna equipment
| TL720D |
Parameters | |
| Mesure range | Azimuth Angle (±180) | |
| Acquisition bandwidth | >100Hz | |
| Resolution | 0.01° | |
| Azimuth accuracy | <0.1°/m | |
| Position accuracy | <2mm/m (Converted according to the angle) | |
| Nonlinear | 0.1% of FS | |
| Gyro Angular Velocity Range | 250°/s | |
| Pitch measurement range | ±90° | |
| Pitch measurement accuracy | 0.25°(1σ) | |
| Roll measurement range | ±180° | |
| Roll measurement accuracy | 0.25°(1σ) | |
| Accelerometer | Accelerometer range | ±4g |
| Acceleroemter resultuion | 0.001g | |
| Acceleroemter accurac | 5mg | |
| Bias instability (allan) | 0.05mg | |
| Speed random walk coefficient (allan) | 0.015m/s/sqrt(h) | |
| Bias stability (10s average) | 0.15mg | |
| Gyro | Bias instability (allan) | 5.0°/h |
| Angle random walk coefficient (allan) | 0.30°/sqrt(h) | |
| Bias stability(10s average value) | 10°/h | |
| Starting time | 200mS | |
| Input Voltage | 9~36VDC / 5VDC (Optional) | |
| Current | 30mA(12V) | |
| Working Temp. | -40℃ ~ +80℃ | |
| Storage Temp | -40℃ ~ +85℃ | |
| Vibration | 5g~10g | |
| Impact | 200g pk,2ms,½sine | |
| Working life | 10 years | |
| Output rate | 1Hz~100Hz can set | |
| Output signal | RS232 or RS485 | |
| MTBF | ≥50000 hours /times | |
| Insulation resistance | ≥100 Megohm | |
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
| Protecting | IP67 | |
| Weight | ≤135g (including 1 meter standard cable) | |
Dimension
