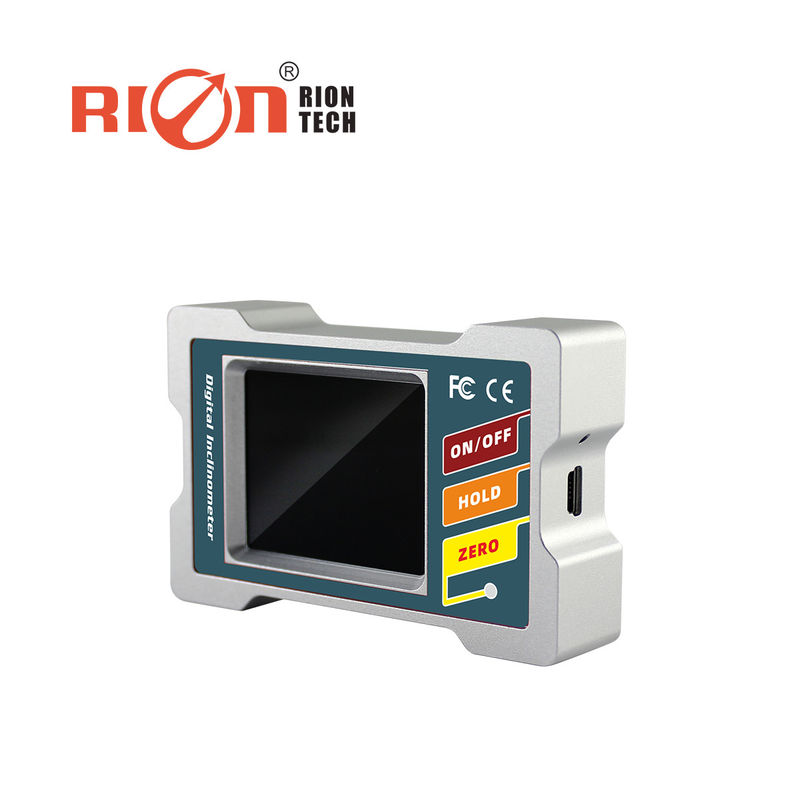

Dual Axes High Accuracy Digital Inclinometer RHOS

Dual Axes High Accuracy Digital Inclinometer RHOS
Features Gallery Product Description Request A Quote
Theory: MEMS
Usage: Magnetic Sensor
Output: Digital Sensor
Measuring Range: +/-90deg Or +/-180deg Optional
Accuracy: 0.05deg
Repeatability: 0.05deg
Resolution: 0.01deg
User Can Calibrate By Himself: Yes
Night Vision Fours Colors Screen: Yes
°/mm Dual Units Switch Funciton: Yes
Data Hold On Function: Yes
Both Sides And Bottom Can Measure: Yes
Working Temperature: -20 ~ +65C
Port: Shenzhen
High Light:

dual axes High Accuracy Digital Inclinometer


RHOS High Accuracy Digital Inclinometer


digital slope meter dual axis

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, RHOS
Model Number: DMI420-90
Payment & Shipping Terms
Packaging Details: 1pcs in wooden box with safe sponge inside
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 30000 Unit/Units per Month
Product Description

DMI4* Stable Performance Single/dual axes Smart Level Sensor With Strong Scalability Accuracy Adjustable

General Description

  DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industy angle controling and measuring.Thecore of this product is using the micro-mechanical control principle, dual-core measurement unit,can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI420 is a uniaxial 360deg measurement, resolution 0.01 °,accuracy <0.1 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI420 (SMI420) with the use of separate measurement, used in combination with the Division LCA series tiltsensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI420 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !



  • Accuracy:0.05°
  • Repeatability:0.05° Resolution:0.01°
  • Measuring range:±180°
  • Fast response
  • Data hold on function
  • Absolute/Relative measurement can switch
  • Both sides and bottom can measure
  • Double benchmark strong magnet installation
  • Working Temperature : -20°~ +65°C
  • Auto-angle interleaved compensation function
  • Auto temperature drift compensation
  • User can calibrate by himself
  • Built-in rechargable industy battaries
  • Night vision fours colors screen
  •  IP54protection class
  • °/mm Dual units switch funciton
  • 100g High anti-impact


Application :

  • Road slope
  • Machinery installation
  • Piping installation
  • Industrial platform
  • Turntable testing
  • Cloud deck angle detection
  • Production jig
  • Medical instruments
  • Building construction Automobile four-wheel testing

Dual Axes High Accuracy Digital Inclinometer RHOS 0


Parameter :


PARAMETERSDual Axes High Accuracy Digital Inclinometer RHOS 2 DMI410 DMI420
Angle measure range ±180 ° ±90 °
Length measure range 0~±999.9mm/m 0~±999.9mm/m
Measure axis Single axis Dual axis
Angle measure accuracy 0.05 °(full range) 0.05 °(full range)
Angle measure resolution 0.01° 0.01°
Length measure accuracy 0.9mm/m(full range) 0.17mm/m(full range)
Length measure resolution 0.17mm/m 0.1mm/m
LCD visible area size L40*W32mm
Working temperature -10℃~ +70℃
Working humidity 85℃
Power supply 3.7V Charging Lithium battery
Ideal charging time 3h
Battery continuous working time 8h(±0.5)
Data output signal Standard 5Pin USB connector
Anti-vibration 10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance 10grms,10~100Hz
Weight 125g
Waterproof level IP54
Material Metal aluminum
Size L83*W53*H19.2mm


Product & Packing Photos :

Dual Axes High Accuracy Digital Inclinometer RHOS 4


Dual Axes High Accuracy Digital Inclinometer RHOS 6



Dual Axes High Accuracy Digital Inclinometer RHOS 8



Dual Axes High Accuracy Digital Inclinometer RHOS 10Dual Axes High Accuracy Digital Inclinometer RHOS 12Dual Axes High Accuracy Digital Inclinometer RHOS 14Dual Axes High Accuracy Digital Inclinometer RHOS 16


Our Company & Workshop View :

Dual Axes High Accuracy Digital Inclinometer RHOS 18Dual Axes High Accuracy Digital Inclinometer RHOS 20

Dual Axes High Accuracy Digital Inclinometer RHOS 22


Certificates & Test Reports :


 Dual Axes High Accuracy Digital Inclinometer RHOS 24


We can offer :

  •  Reliable high quality products and services
  •  Perfect whole system application solution
  •  Strong technical support before or after sales service
  •  Extend strong sales teams & distributors global
  •  OEM products as buyer's requests

 Our main products :

  • Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
  •  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
  • 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
  • 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
  • Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
  • High performance MEMS Mini AHRS ( Attitude Heading Reference System )
  • Other Agent Products PNI...etc

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .


Payment ways :

T/T, WU or Paypal;


Delivery methods & Time :

DHL takes 3-5days ,  Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;


Quality Policy :

We gurantee 1 year in free charge .


Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
