Name: DMI820 HCA High Precision Digital Inclinometer MM Measuring Touch Screen
Brand: RION
SKU: DMI820-15
Price: 438.00 USD
Availability: InStock
Rating: 4.5 (106 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1 Year

Customized Support: OEM

Digital Inclinometer Measuring Range: +/-15deg , +/-30deg Optional

Accuracy: <0.005deg @+/-15deg (full Range) , <0.01deg@+/-30deg (full Range)

MM Measuring Range: 267~577mm

MM Measuring Accuracy: 0.1mm@267mm(range), 0.2mm@577mm(range)

Product Size: L105*W73*H27.1mm

Resolution: 0.001°

Repeatability: <0.003°

LCD: 64 True Colors Night Vision Display Screen

Power Supply: 3.7V Charging Lithium Battery

Working Temp.: -10 ~ 70C

High Light:

MM High Precision Digital Inclinometer

High Precision Digital Inclinometer HCA

DMI820 Precision Digital Inclinometer

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: DMI820-15

Payment & Shipping Terms

Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 5 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 3000 per month

Gallery

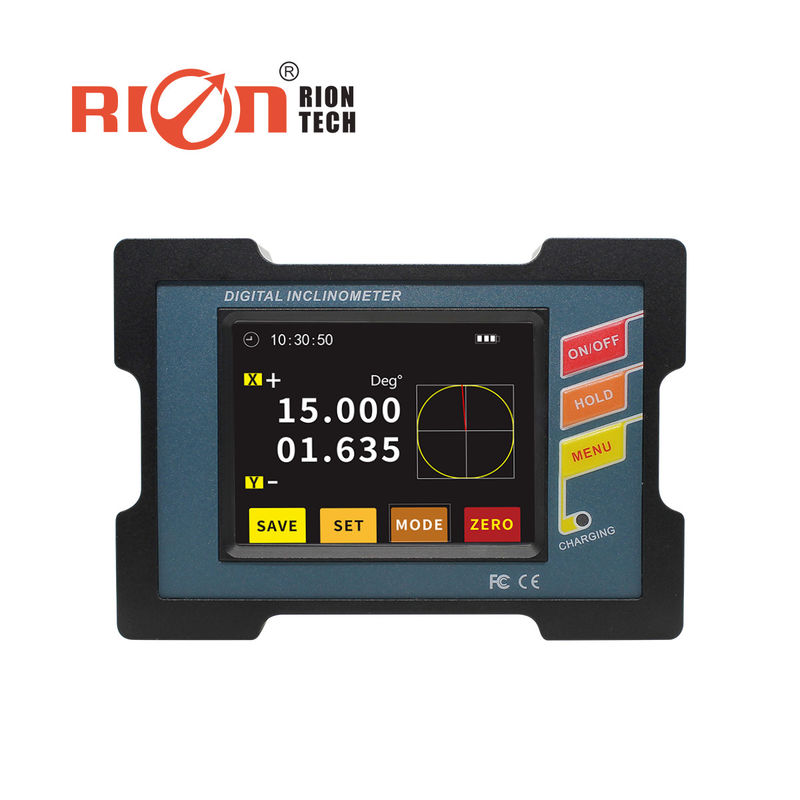

DMI820 HCA High Precision Digital Inclinometer MM Measuring Touch Screen

Product Description

DMI820 High Reliable MEMS Digital Inclinometer Touch Screen Inclinometer Industry Grade mm Inclinometer Factory

Production implementation standard reference

● Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101) ● Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level ●The Academy of metrology and quality inspection Calibrated in accordance to: JJF1119-2004 Electronic Level calibration Specification ● Software development reference standard: GJB 2786A-2009 military software development General requirements ● Product environmental testing standards: GJB150 ● Electromagnetic anti-interference test standards: GB / T 17626 ● Version:Ver.09 ● Date:2014.4.17

DMI820 High Reliable MEMS Digital Inclinometer Touch Screen Inclinometer Industry Grade mm Inclinometer Factory

General Description

DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI820 is a uniaxial 90deg measurement, resolution 0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI820 (SMI820) with the use of separate measurement, used in combination with the Division HCA series tilt sensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI820 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Key Features

●Best accuracy:<0.003°

●Repeatability:0.003°

●Angle resolution:0.001° ●Maximum measuring range:±90°

●User can set the alarm value by himself

● Data store function ●Absolute/Relative measurement can switch

●Both sides and bottom can measure ●Double benchmark strong magnet installation

●Working Temperature : -10°～ +70℃ ●Auto-angle interleaved compensation function

●Auto temperature drift compensation ●User can calibrate ZERO by himself

●Built-in rechargable industry batteries ●Night vision fours colors screen

●IP54 protection class ●°/mm/m Dual units switch function

● Filter frequency optional ●Three kinds of measurement mode selectable (radian, angle, mm)

Application

●Building construction

●Automobile four-wheel testing ●Road slope

●Machinery installation

●Piping installation

●Industrial platform ●Turntable testing

●Pan unit angle detection

●Production jig

●Medical instruments

Specification

Parameters	DMI820-15	DMI820-30	DMI820-30
Angle measuring range	DMI820:±15 °	DMI820:±30 °
MM measuring range	267mm	577mm
Measuring aixs	Dual axis	Dual axis
Best angle accuacy	<0.005 °(Full measuring range)	<0.01° (Full measuring range)
Resolution	0.001°	0.001°
MM measuring accuracy	0.1mm	0.2mm
Three measuring mode	radian, angle, mm measuring can be selected
MM measuring resolution	0.02mm
LCD	64 true colors night vision display screen
LCD visible area size	L57.6*W43.2mm
Working temperature	-10°～ +70℃
Working humidity	85%RH
Power supply	3.7VCharging Lithium battery
Ideal charging time	3~4 hours
Battery sustainable charging times	11 hours
Equipped with PC software	RION software
Data output signal	USB1.0
Connector plug in	Standard 5Pin USB connector
Shock resitance	10g@11ms,3Times/Axis(half sinusoid)
Shock impact	10grms,10～100Hz
Weight	300g
Protection	IP54
Enclosure material	Metal
Size	L107W75H27.1mm

Packing & Delivery

Order information

Item No.	Description
DMI820-15	Standard dual-axis digital display inclinometer ±15°
DMI820-30	Standard dual-axis digital display inclinometer ±30°

Company Profie

Shenzhen RION Technology, located in Shenzhen, a city overflowing with charms and miracles, is a high-tech enterprise specializing in developing, research, manufacture and sales of inclinometer, tilt switch, accelerometer, electronic compass, inertial attitude instrument etc. Based on the philosophy of specialization and marketization, RION engages itself in providing reliable service of sensor developing, sensor solution and customized developing&test solution. ISO9001 Quality Assurance System involves fully in factory production and management and ensures the best products and solution to be offered, winning satisfaction and reputation from customer. RION’s main products include inclinometer, digital inclinometer, tit switch, 3D electronic compass, accelerometer, inertial measurement unit(IMU) etc. And RION’s products could find suitable application in automobile, ship, plane, machinery, metallurgy, electric power, textile, railway, dam monitoring, armarium, petroleum drilling, coal mining, offshore exploration, precise surveying and mapping etc. Taking the opportunity of Chinese reform and open, RIONer, propelled by the Spirit of dedication, innovation and determination, turn RION into a leading manufacturer of position sensor out fo nothing. In 2008, RION set foot in international market, promoted its own brand toward the whole world and is becoming a flagship against many Chinese sensor companies on the way to globalization. In next 10 years, RION will always pivot at the trinity-design, quality and market-orientation, and develop itself into a creative, reliable and reputable sensor brand for the world.

Solar Photovoltaic Exhibition (Shanghai)

Certificates

FAQ

Q: How to choose suitable products before ordering? A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price. Q: What's kind of payment methods ? A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible. Q: How about lead time for order ? A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay. Q: How about quality inspection before shipment ? We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment . Q: What's the transportation methods ? A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder . Q: How about after-sale service ? A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible. Q: How about product warranty and repair service? A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a rea
