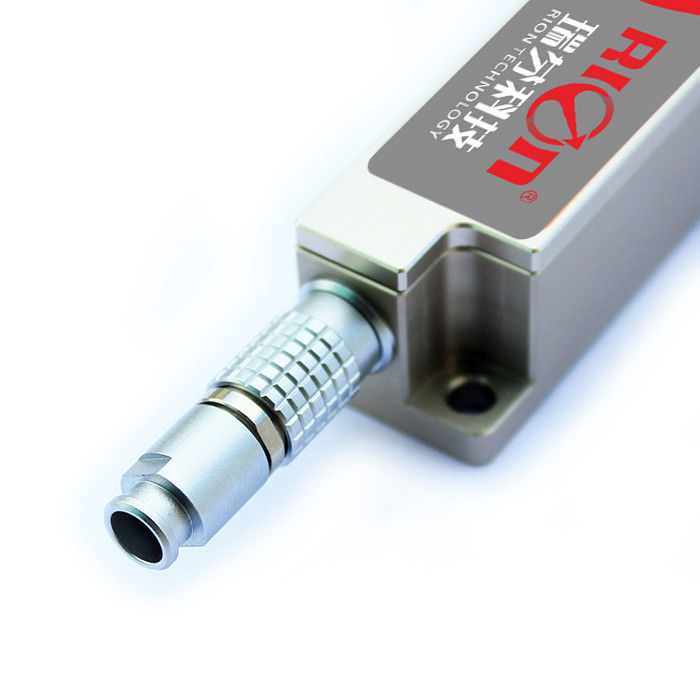

HCM375 30mA Aluminum 3D Digital Compass Roll Pitch Angle Tilt Sensor

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HCM375

Payment & Shipping Terms

Minimum Order Quantity: 1 Units

Price: $438.00/Units

Packaging Details: cartons

Delivery Time: 7 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 3000 pcs per month

Get Best Price
Contact Now
Specifications
Highlight:

30mA 3D Digital Compass

,

Aluminum 3D Digital Compass

,

roll pitch angle 3d tilt sensor

Case Material:
Aluminum
Size:
L110 X W19.5 XH19.5mm
Best Heading Accuracy:
0.3deg
Roll Range:
+/-180deg
Pitch Range:
+/-180deg
Working Temperature:
-40C ~+85C
Storage Temperature:
-40C ~+100C
Production:
IP67
Case Material:
Aluminum
Size:
L110 X W19.5 XH19.5mm
Best Heading Accuracy:
0.3deg
Roll Range:
+/-180deg
Pitch Range:
+/-180deg
Working Temperature:
-40C ~+85C
Storage Temperature:
-40C ~+100C
Production:
IP67
Description
HCM375 30mA Aluminum 3D Digital Compass Roll Pitch Angle Tilt Sensor

HCM375 30mA Aluminum 3D Digital Compass Roll Pitch Angle Tilt Sensor



Products Desc.

The HCM370B/HCM375 B-N is a high-precision three-dimensional compass with high resolution, strong noise immunity and stable temperature offset. It uses advanced hard and soft iron calibration algorithms and uses high-precision accelerometers for tilt compensation, so that its roll angle can provide high-precision heading information at any tool face of 360 °. In the environment with fixed interference, this product can still maintain a high measurement accuracy.

Long strip volume with a width of only 1.95 CM. Reaching IP67 waterproof grade, it is more suitable for drilling measurement. It has the characteristics of small size and low power consumption, and can be quickly and conveniently integrated into various products. The product can be ordered with complete packaging products or circuit boards.

This product integrates a three-axis magnetic field sensor and a three-axis acceleration sensor, calculates the course data in real time through an industrial single-chip microcomputer with high reliability and strong anti-interference capability, and uses a three-axis accelerometer to compensate the course for a wide range of tilt angles, which is a product with high performance and stability. With small size and low power consumption, it is widely used in handheld devices, mobile devices, antenna stabilization, vehicles, system integration and many other fields.



Main Feature



★ Heading Accuracy: 0.5°

★ Roll Measure Range:±180°

★ Tilt Resolution: 0.1°

★ Tilt Accuracy: <0.2°(Full Range)

★ Working Temp.: -40℃~+85℃

★ Dimension: L111.5×W19.5×H19.5mm

★ With Hard And Soft Magnetic Calibration

Application:

★ Satellite antenna search satellite

★ Marine navigation surveying and mapping

★ GPS integrated navigation

★ Antenna servo control

★ Infrared imager

★ Laser range finder

★ Map for plotter

★ Oceanography measurement instruments





HCM370B / HCM375B-N Parameter
Heading Heading Accuracy 0.5°
Resolution 0.1°
Compass inclination parameter Pitch Accuracy 0.1°<15°(Measure Range)
0.1°<30°(Measure Range)
0.1°<60°(Measure Range)
0.2°<85°(Measure Range)
Pitch Range ±85°
Roll Accuracy 0.1°<15°(Measure Range)
0.1°<30°(Measure Range)
0.1°<60°(Measure Range)
0.2°<180°(Measure Range)
Roll Range ±180°
Resolution 0.1°
Calibration Hard Magnetic Calibration Available
Soft Magnetic Calibration Available
Magnetic Filed Interference Calibration Method

Rotate 360° Horizontally;

Vertical Rotation(Optional)

Physical properties PCBA size L76×W16.5×H9.3mm
PCBA weight ≤ 10g (excluding terminal wire)
PCBA terminal line 30cm terminal wire
Housing package size L111.5×W19.5×H19.5mm
Housing package weight ≤ 85g (excluding cable)
Housing connector cable Standard 1 m 5 PIN aerial connector cable
Output interface RS232/RS485/TTL (Optional)
Interface Start Delay <50ms
Max Output Rate 20Hz/s
Communication Rate 2400 to 115200baud (default 9600)
Output Format Binary High Performance Protocol
Power Supply Power Voltage (Default)DC+5V
Current(Max) 30ma
Ideal Current 26ma
Sleep Mode TBD
Environment Working Temp. -40℃~+85℃
Storage Temp. -40℃~+85℃
Anti-Shock Performance 100g
  Protection Level IP67
Electromagnetic compatibility According TO EN61000 and BT17626
MTBF ≥98000 Hour/Time
Insulation Resistance ≥100MΩ
Anit-Impact 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-Shock 10grms,10~1000Hz

































































































HCM375 30mA Aluminum 3D Digital Compass Roll Pitch Angle Tilt Sensor 0

HCM375 30mA Aluminum 3D Digital Compass Roll Pitch Angle Tilt Sensor 1

HCM375 30mA Aluminum 3D Digital Compass Roll Pitch Angle Tilt Sensor 2



FAQ
Q:  How to choose suitable products before ordering?



A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price.

Q:  What's kind of payment methods ?

A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible.

Q: How about lead time for order ?

A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay.

Q:  How about quality inspection before shipment ?

We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment .

Q: What's the transportation methods ?

A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder .

Q:  How about after-sale service ?

A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible.

Q: How about product warranty and repair service?

A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a reasonable fee according to the actual situation.

Q:  Are the samples available free of charge?

A: At first time co-operation, we need charge related cost for samples , because our products belong to the Industry grade and with high quality , thus the cost is much more expensive than the average consumer goods. If we work closely together with each other more times in future, we will consider applying for free samples according to your specific requirements and sending them to you, thanks for your understanding .

Wish a pleasant cooperation with you !
