Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: AKF390B-V1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $235.00/Pieces
Packaging Details: cartons
Delivery Time: 7 days for samples
Payment Terms: T/T, PAYPAL
Supply Ability: 3000/month
Theory: |
MEMS |
Brand: |
Accelerometer Sensor |
Measuring Range: |
Max +/-40G |
Accelerometer Output: |
0-5V |
Power Supply: |
9-36V |
Working Temperatur: |
-40°C ~ +85°C |
Weight: |
Product Net Weight: 82g |
Measuring Range: |
2g~40g |
Theory: |
MEMS |
Brand: |
Accelerometer Sensor |
Measuring Range: |
Max +/-40G |
Accelerometer Output: |
0-5V |
Power Supply: |
9-36V |
Working Temperatur: |
-40°C ~ +85°C |
Weight: |
Product Net Weight: 82g |
Measuring Range: |
2g~40g |

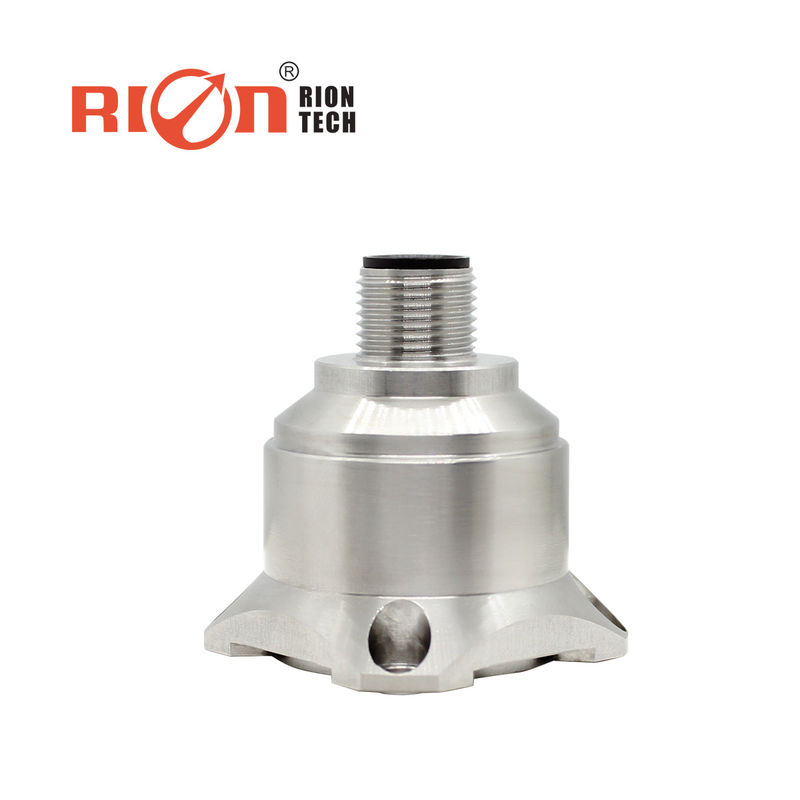

RION Voltage Vibration Accelerometer Sensor Three Axis for Crash record MEMS Based Accelerometer
This accelerometer simultaneously measures acceleration along the X, Y, and Z axes, with an output voltage range of 0 to 5V, compatible with a supply voltage of 9 to 36V. It operates reliably within a wide temperature range from -40°C to +85°C and maintains its performance under similar storage conditions over extended periods.
With excellent bias stability and superior environmental adaptability, the AKF390 withstands impacts, vibrations, and extreme temperature conditions. This versatility makes it widely applicable in numerous scenarios including accident recording, fatigue monitoring and prediction, wind power generation, medical equipment, monitoring of large machinery and engines, structural monitoring of bridges and road rollers, as well as fault detection and analysis in traffic systems and high-speed railways.
The AKF390 triaxial accelerometer not only serves as a high-performance measurement tool but also as a reliable partner in solving complex industrial monitoring challenges. Whether in terms of safety, accuracy, or stability, the AKF390 delivers outstanding performance to ensure precise and dependable data support in your application environment.
| AKF390 | PARAMETER | UNIT | |||||
| Range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
| Deviation Calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
| Measuring Axial | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | Axis |
|
Up/Off Power Repeatability |
<2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
| Sensitivity (± 10%) | 1250 | 625 | 312.5 | 250 | 125 | 62.5 | mv/g |
|
Deviation temp. coefficient |
0.01 | 0.01 | 0.01 | 0.05 | 0.05 | 0.05 | %/℃ |
| Resolution/Threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
| Nonlinearity | <0.5 | <0.5 | <0.8 | <1 | <1 | <1 | % FS(max) |
| Frequency response | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
| Bandwidth (3DB) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | Hz |
| Cross-axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
| Lateral vibration sensitivity ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
| Resonance frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
| Noise density | 21 | 21 | 21 | 86.6 | 86.6 | 86.6 | μg/√Hz |
| 0g output 2.5V | <0.01 | <0.01 | <0.01 | <0.008 | <0.008 | <0.008 | mV |
| The output voltage | 0~5V | ||||||
| Input(Vdd_Vss) | 9~36 VDC | ||||||
| Current Consumption | <60mA @ 12 VDC | ||||||
| Connector | Industrial Standard M12 Connector | ||||||
| Protection grade | IP67 | ||||||
| Weight | Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g | ||||||
| Dimension |
Product size: 34.3*34.3*38.5mm Magnetic adsorption base size: 34.23*34.23*8.1mm L-shaped adapter plate size: 36*44*15mm |
||||||
