High Accuracy Level Inclinometer Sensor, Boom Lift Angle Sensor, High Response Frequency Angle Control Sensor

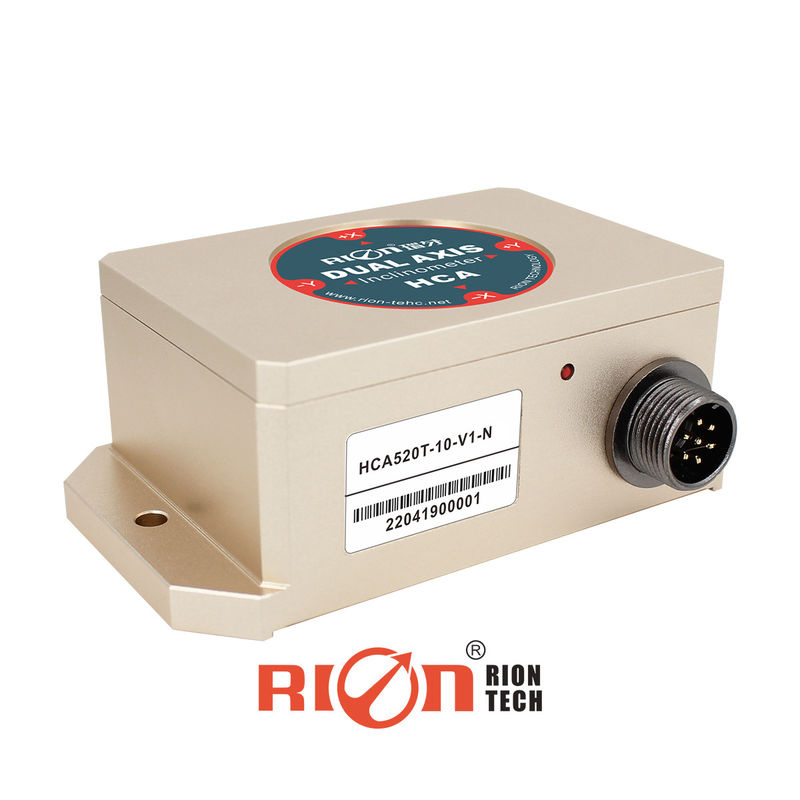

HCA520T is a high accuracy dual axis inclinometer with analog voltage output,small measuring range and the highest precision up to 0.003 °, it is one of the few high-precision inclinometers in mainland. It is mainly used to measure the inclination of the object with respect to the horizontal plane , built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change, the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.
This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!
Features:
Dual-Axis Inclinometer Measuring Range :±1~±90° optional
Accuracy refer to the technical data Wide voltage input: 9~36V
Wide temperature working: -40~+85°C Resolution: 0.001°
IP67 protection class Highly antibration performance >2000g
Small size :90×50×28mm(customized) Water-proof air-plug connector
Application:
Satellite positioning Search Rail-mobile monitoring
engineering mechanical measurement of dip angle oil-well drilling equipment
Radar detection of vehicle platform Underground drill posture navigation
Gun Barrel angle measurement in early shooting Based on the angle direction measurement
Satellite communications vehicle posture detection Shield pipe jacking application
Technical Data
|
HCA510&520T |
CONDITION | PARAMTERS | UNIT | ||
| Measure range | ±10 | ±30 | ±60 | ° | |
| Measure axis | X | X | X | ||
| Zero output | 0° output | 2.5 | 2.5 | 2.5 | V |
| Resolution | 0.001 | 0.001 | 0.001 | ° | |
| Measure accuracy | @25℃ | 0.005 | 0.01 | 0.02 | ° |
| Long term stability | 0.01 | 0.02 | 0.05 | ° | |
| Zero Temp. coefficient | -40～85℃ | ±0.002 | ±0.002 | ±0.002 | °/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | s | |
| Response frequency | 1～20 | 1～20 | 1～20 | Hz | |
| EMC | According to EN61000 and GBT17626 | ||||
| MTBF | ≥50000 hours/times | ||||
| Insulation Resistance | ≥100MΩ | ||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||||
| Anti-vibration | 10grms,10～1000Hz | ||||
| Protection glass | IP67 | ||||
| Cables | Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 5*0.4mm2 aviation connector | ||||
| Weight | 190g(without cable ) | ||||
