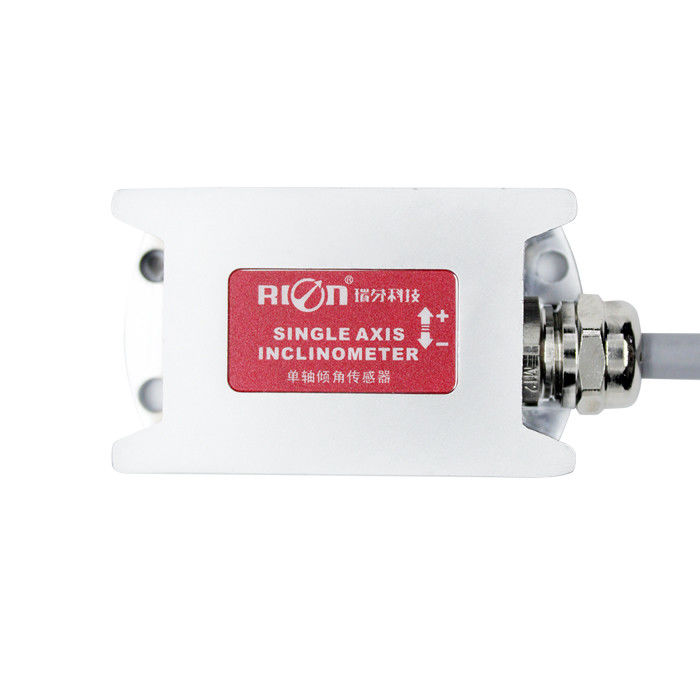

MCA416 High Accuracy 36V 0.2 Deg Tilt Angle Sensor MODBUS Level Control

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: MCA416-TTL-MB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $35/Pieces

Packaging Details: CARTON

Delivery Time: 5-10 work days

Payment Terms: T/T, Paypal

Supply Ability: 10000 per Month

Get Best Price
Contact Now
Specifications
Highlight:

0.2 Deg Tilt Angle Sensor

,

36V Tilt Angle Sensor

,

MODBUS Angle Tilt Sensor

Usage:
Level Sensor
Measuring Axis:
X/Y
Power Supply:
DC 9~36V
Measuring Range:
Within 360 Deg
Best Accuracy:
<0.2°
Angle Resolution:
0.1°
Working Temperature:
-40°~ +85℃
Size:
L61*W35*H21mm
Usage:
Level Sensor
Measuring Axis:
X/Y
Power Supply:
DC 9~36V
Measuring Range:
Within 360 Deg
Best Accuracy:
<0.2°
Angle Resolution:
0.1°
Working Temperature:
-40°~ +85℃
Size:
L61*W35*H21mm
Description
MCA416 High Accuracy 36V 0.2 Deg Tilt Angle Sensor MODBUS Level Control

MCA416 High Accuracy 36V 0.2 Deg Tilt Angle Sensor MODBUS Level Control



General Description

The MCA426M is a MODBUS-compatible inclinometer specifically designed for industrial position control. It utilizes an RS485 differential bus for data transmission. Equipped with a high-precision 12-bit A/D differential converter, it employs a third-order filtering algorithm to measure pitch and roll angles in relation to the horizontal level. The device compensates for temperature drift based on internal temperature changes, ensuring high repeatability under both high and low temperature conditions. Its output response frequency can reach up to 20Hz, with the possibility of higher frequencies upon customization. This industrial-grade product is known for its reliable performance, strong scalability, and multiple output options, making it suitable for a variety of demanding industrial environments.



Feature

●single/dual axis

●measuring range ±45°

●accuracy:±0.5°
●DC 9~36V input

●working temp-40~+85℃

●resolution: 0.1°
●IP66

●anti-shock>2000g

●direct lead interface
●size:L61×W35×H21mm

●output type: MODBUS



Technical data
Item
Conditions
≤±30°
≤±60°
≤±90°
≤±360°
Unit
Resolution





°
Accuracy
25℃




°
Response time





S

Temperature drift
-5~55℃
±0.5
±0.5
±0.5
±0.5
°

-25~70℃
±0.7
±0.7
±0.7
±0.7
°

-40~85℃
±0.8
±0.8
±0.8
±0.8
°
Output load
>500 ohm





Working time
50000 hours/time(no fault)





Insulation resistance
>100 ohm





Anti-shock
10grms,10~1000Hz





Impact resistance
100g@11ms,times/axis(half sinusoid)





Weight
60g





Certificate
CE;FCC;CCC;





Production standard
GB/T 191 SJ 20873-2003 tilt sensor,level sensor general specification





Quality system
ISO9001:2008 standard(certificate No.:128101)








Dimension
MCA416 High Accuracy 36V 0.2 Deg Tilt Angle Sensor MODBUS Level Control 0
Customer Photos
MCA416 High Accuracy 36V 0.2 Deg Tilt Angle Sensor MODBUS Level Control 2
MCA416 High Accuracy 36V 0.2 Deg Tilt Angle Sensor MODBUS Level Control 4



FAQ

Q1. What is your delivery terms?
A: EXW, FOB, CNF, DAP

Q2. What is your terms of payment?
A: T/T 100% , Paypal, or Alibaba

Q3. How about your delivery time?
A: Generally, it will take 7 days for production against the payment confirmation

Q4. Can you produce according to customers requirements?
A: Yes, we could provide customized solution.

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?
A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
