MEMS inertial sensor single/Dual/tri-axis digital output yaw rate gyroscope with RS232/485
General Description

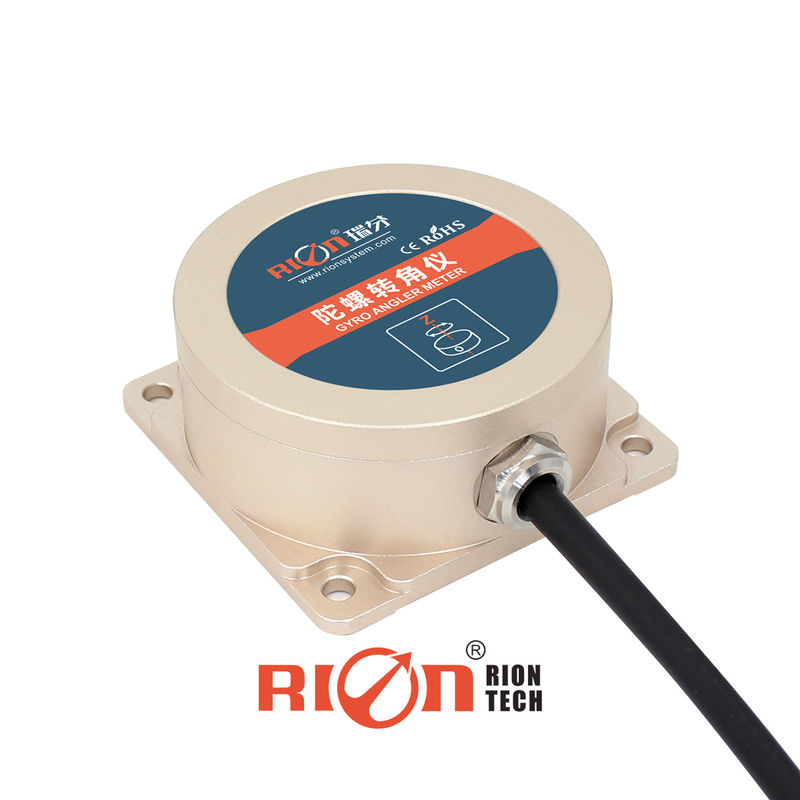

TL740D is RION company newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform ,
by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .
The product inernal integrated RION’s Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve
the gyro short time drift problem as much as possible . this product is specially used for robot car, AVG vehicle azimuth orientation,
attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings,
no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic
tracing and driving.
Features
Azimuth angle output Strong vibration resistance Light weight
Long life,strong stability Cost-effective All solid state
Compact & light design RS232/RS485 output optional DC9~36V power supply
Application
AGV truck Car Navigation 3D virtual reality
Platform stability Auto safety system UAV
Industrial control Robot
Turck-mounted satellite antenna equipment
Order information
|
TL740D-232 |
RS232 output mode |
|
TL740D-485 |
RS485 output mode |
Technical data
|
Mesuring range |
Azimuth Angle (±180) |
|
Acquisition bandwidth (Hz) |
>100 |
|
Resolution(°) |
0.01 |
|
Azimuth accuracy (°/min) |
<0.1 |
|
Nonlinear |
0.1% of FS |
|
Max angle rate (°/s) |
≥300 |
|
Starting time(s) |
30(Static) |
|
Input Voltage(V) |
+9~36V |
|
Current (mA) |
60(12V) |
|
Working Temp.(℃) |
-40 ~ +85 |
|
Storage Temp(℃) |
-40 ~ +85 |
|
Vibration(g) |
5g~10g |
|
Impact(g) |
200g pk,2ms,½sine |
|
Working life |
10 years |
|
Output rate |
5Hz,15Hz,25Hz,50Hz can set |
|
Output signal |
RS232 or RS485 |
|
MTBF |
≥50000 hours /times |
|
Insulation resistance |
≥100 Megohm |
|
Impact resistance |
100g@11ms,3Times/Axis(half sinusoid) |
|
Anti-vibration |
10grms,10~1000Hz |
|
Protecting |
IP67 |
|
Connector |
matched with 1m cable |
|
Weight |
160g(without cable) |
|
|
|
Dimension:
