Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: HCA526T-WL
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $450.00/Pieces
Packaging Details: 1pcs/box ,100pcs/ctn
Supply Ability: 30000 Piece/Pieces per Month
Measure Axis: |
XY |
Measure Range: |
10°~90° |
Power On Time: |
0.5s |
Output Rate: |
5Hz、15Hz、35Hz、50Hz |
Output Signal: |
RS232/RS485/RS422/TTL/CAN/MODBUS |
Protection Grade: |
IP67 |
Input Voltage: |
9~36v |
Small Size: |
90×50×34mm（customized） |
Measure Axis: |
XY |
Measure Range: |
10°~90° |
Power On Time: |
0.5s |
Output Rate: |
5Hz、15Hz、35Hz、50Hz |
Output Signal: |
RS232/RS485/RS422/TTL/CAN/MODBUS |
Protection Grade: |
IP67 |
Input Voltage: |
9~36v |
Small Size: |
90×50×34mm（customized） |

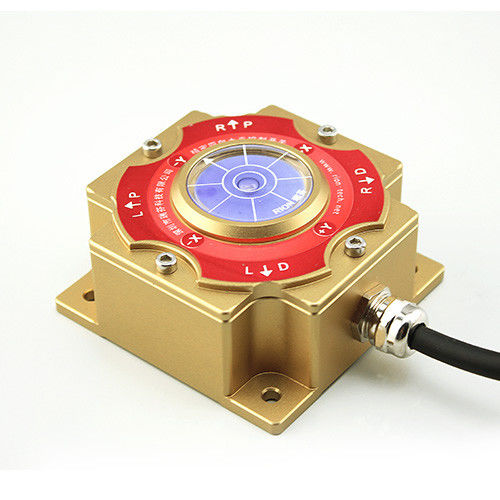

HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception
PRODUCT INTRODUCTION:
HCA526T-WL is a wireless transmission dual-axis tilt sensor launched by RION for the industrial field control field. The product is divided into two parts: wireless induction probe and wireless data reception. Both parts have independent receiving antennas. The wireless ISM full-band working frequency is adopted, which conforms to the ISM band communication standard and does not need to apply for frequency points. Carrier frequency is within 400-480MHZ. The communication distance can reach 200 meters in the visible open area. The GFSK modulation mode adopts a high-efficiency forward error correction channel coding technology, and improves the capability of data for resisting burst interference and random interference.
Features
Application:
Ordering information:
| HCA516&526T-WL | CONDITION | PARAMETERS | UNIT | |||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | |
| Measure axis | XY | XY | XY | XY | ||
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | ° | |
| Measure accuracy | 0.005 | 0.01 | 0.02 | 0.05 | ° | |
| Long term stability | 0.01 | 0.02 | 0.05 | 0.08 | ||
| Zero Temp.coefficient | -40～85° | ±0.002 | ±0.002 | ±0.002 | ±0.002 | °/℃ |
| Sensitivity temp.coefficient | -40～85° | ≤50 | ≤50 | ≤50 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response frequency | 0.02 | 0.02 | 0.02 | 0.02 | s | |
| Output rate | 5Hz,15Hz,35Hz,50Hz可设置 | |||||
| output signal | RS232/RS485/RS422/TTL/CAN/MODBUS | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector | |||||
| Weight | 150g(without cable) | |||||
Wireless receiver size diagram
