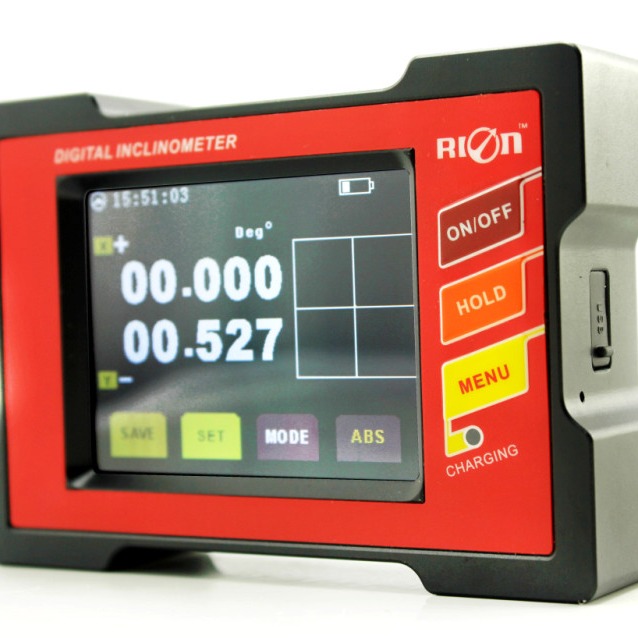

Auto Angle High Accuracy Digital Inclinometer Data Store Industry Grade

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, RHOS

Model Number: DMI820

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $437.00/Pieces

Packaging Details: 1pcs inclinometer / inner wodden box with sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 7 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 30000 Piece/Pieces per Week inclinometers are avaliable

Get Best Price
Contact Now
Specifications
Highlight:

High Accuracy Digital Inclinometer Data store

,

Auto angle High Accuracy Digital Inclinometer

,

Industry Grade digital angle gauge

Incliometer Best Accuracy:
<0.003deg
Repeatability:
0.003deg
Angle Resolution:
0.001deg
Measuring Rang:
+/-15deg Or +/-30deg Optional
Alarm:
User Can Set The Alarm Value By Himsel
Data Store:
Yes
Absolute/Relative Measurement:
Yes
Working Temperature:
-10 ~+70C
°/mm/m Dual Units Switch Function:
Yes
Protection:
IP54
Port:
Shenzhen
Incliometer Best Accuracy:
<0.003deg
Repeatability:
0.003deg
Angle Resolution:
0.001deg
Measuring Rang:
+/-15deg Or +/-30deg Optional
Alarm:
User Can Set The Alarm Value By Himsel
Data Store:
Yes
Absolute/Relative Measurement:
Yes
Working Temperature:
-10 ~+70C
°/mm/m Dual Units Switch Function:
Yes
Protection:
IP54
Port:
Shenzhen
Description
Auto Angle High Accuracy Digital Inclinometer Data Store Industry Grade

Industry Grade Touch Screen Dual-axis Digital inclinometer slope sensor Tilt Switch °/mm/m Dual units Switch



General Description
DMI810 is a digital display inclinometer which took RION company three years to develop professional for
various industy angle controling and measuring.The core of this product is using the micro-mechanical control
principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement
process,and then to use RION patent interleaved and temperature compensation model algorithm to play
absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments
measurement with the long-term stability and repeatability. DMI810 is a uniaxial 90deg measurement, resolution
0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed
for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured
and using normally,very convenient to use, In addition, supporting the selection of DMI810 (SMI810) with the use
of separate measurement, used in combination with the Division HCA series tilt sensor, the transmission mode
wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m,
the cable transmission standard 1 meter (can be customized long distance), DMI810 series has strong scalability,
convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute
competitive advantage in the international market !





Features:

  • Accuracy:<0.003°                                               Repeatability:0.003°                                                Angle resolution:0.001°
  • Measuring range:±90°                                        User can set the alarm value by himself                  Data store function
  • Absolute/Relative measurement can switch        Both sides and bottom can measure                       Double benchmark strong magnet installation
  • Working Temperature : -1~ +65°C                  Auto-angle interleaved compensation function
  • Auto temperature drift compensation                  User can calibrate ZERO by himself                        Built-in rechargable industy battaries
  • Night vision fours colors screen                          IP54protection class                                               °/mm Dual units switch funciton
  • Filter frequency optional                                    Three kinds of measurement mode selectable (radian, angle, mm)



Application :

  • Building construction                     Automobile four wheel testing
  • Road slope                                    Machinery installation
  • Piping installation                          Industrial platform
  • Turntable testing                           Pan unit angle detection
  • Production jig                                Medical instruments

TECHNICAL DATA



Auto Angle High Accuracy Digital Inclinometer Data Store Industry Grade 1PARAMETER DMI810 DMI820 UNIT
Angle Measure range ±15 ° ±30 ° ±15 ° ±30 ° °
MM measure range 267 577 267 577 mm/m
Meausre axis Single axis Single axis Single axis Single axis
Highest measurement accuracy (full range) <0.005 <0.01 <0.005 <0.01 °(RMS)
Angle Measure resolution 0.001 0.001 0.001 0.001 °
Repeatability 0.003 0.003 0.003 0.003 °
MM measure accuracy 0.1 0.2 0.1 0.2 mm/m
Three measurement mode selectable

①Angle ②degree, minute, second ③mm/m

three modes can be set

/
MM measure res 0.02 mm/m
LCD 64 true colors night vision display screen /
LCD visible area size L57.6*W43.2 mm
Working temperature -10°~ +70℃
Working humidity 85 %RH
Power supply 3.7V Charging Lithium battery V
Ideal charging time 5 h
Battery sustainable charging times 11 h
Equipped with PC software VC software /
Data output signal USB1.1 (Virtual Serial Device) /
Connect plug in Standard USB connector, rechargeable /
Shock resistance 10g@11ms,3 Axial Direction (Half Sinusoid) g
Shock impact 10grms,10~100Hz g
Waterproof grade IP54 /
Material Aluminum alloy Anodizing /
Size L107*W75*H27.1 mm
Weight 300 g
