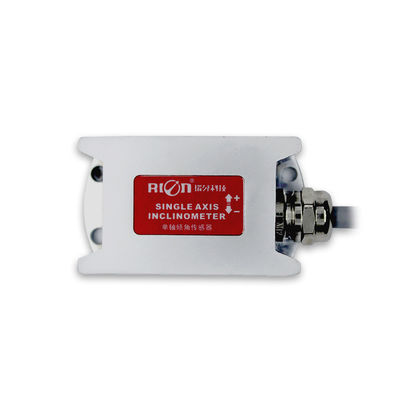

Reliable Low Cost Tilt Sensor Inclinometer Single Dual Axis Angle Tilt Sensor Pitch Roll Angle Sensor Factory Supply
▶ PRODUCTION
We provide different accuracy, range, output type inclinometer sensor, such as MCA4, LCA3, SCA1, HCA5, HCA7, PCA8, ACA6, ACA8 and so on and dynamic inclinometer HDA436 to different applications such as Engineering vehicles automatic leveling/Bridge & dam detection/Laser equipment position /Medical facilities angle control/Underground drill posture navigation / Railway gauging rule , gauge equipment leveling / Precise machine tool level control / Geological equipment inclined monitorin/ solar tracking angle measure/crane angle measure and control and so on.
▶ PARAMETER TABLE
| ACA816T/826T-C1 | Condition | Parameter | Unit | |||
| Measure range | ±3 | ±10 | ±15 | ±30 | ° | |
| Measure axis | X/XY | X/XY | X/XY | X/XY | ||
| Resolution | 0.0005 | 0.0005 | 0.0005 | 0.0005 | ° | |
| Measure accuracy | @25℃ | 0.002 | 0.003 | 0.005 | 0.01 | °(RMS) |
| Long term stability | 0.01 | 0.01 | 0.02 | 0.02 | ° | |
| Zero temp coefficient | -40～85℃ | ±0.0002 | ±0.0002 | ±0.0002 | ±0.0002 | °/℃ |
| Sensitivity temp coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 20 | 20 | 20 | 20 | Hz | |
| Output rate | 20Hz, can set | |||||
| Output signal | CAN OPEN | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,3 axis direction (half sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | With 2 meter, wear-resistant, wide temperature, shielded cable 5P*5.7mm aviation connector | |||||
| Weight | 235g( exclude cable) | |||||
| HCA716/HCA726 | CONDITION | PARAMETERS | UNIT | |||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ±180 | ° | ||
| Measure axis | X Y | X Y | X Y | X Y | X | axis | ||
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.008 | 0.01 | 0.01 | 0.02 | 0.02 | ° |
| RMSE | Room temp. | 0.004 | 0.005 | 0.005 | 0.006 | 0.006 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | °/℃ | |
| Sensitivity temp-coeffi | -40～85℃ | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | %/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Response frequency | 20HZ | |||||||
| Interface | TTL / RS232 / RS485 optional | |||||||
| Communication protocol | RION 68 protocol / MODBUS RTU protocol optional | |||||||
| EMC | According to EN61000 and GBT17626 | |||||||
| MTBF | ≥98000 hours/times | |||||||
| Insulation Resistance | ≥100MΩ | |||||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||||
| Anti-vibration | 10grms,10～1000Hz | |||||||
| Protection grade | IP67 | |||||||
| Cables | Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2 | |||||||
| Weight | ≤150g (including 1 meter cable) | |||||||
| SCA116T/126T | CONDITION | PARAMETER | UNIT | |||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | |
| Measure axis | X Y | X Y | X Y | X Y | axis | |
| Resolution | 0.01 | 0.01 | 0.01 | 0.01 | ° | |
| Measure accuracy | @25℃ | 0.02 | 0.03 | 0.05 | 0.06 | ° |
| Long term.stability | 0.05 | 0.05 | 0.05 | 0.05 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | 0.02 | s | |
| Output rate | 5Hz,15Hz,35Hz,50Hz Optional | |||||
| communication protocol | MODBUS / ROIN 68 Optional | |||||
| EMC | According to EN61000 and GBT17626c | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2 | |||||
| Weight | ≤220g (including 1 meter cable) | |||||
| LCA318T/328T | CONDITION | PARAMETER | UNIT | ||||
| Measure range | ±30 | ±60 | ±90 | ±180 | 0~360 | ° | |
| Measure axis | X Y | X Y | X Y | X | X | Axis | |
| Zero output | 0° output | 12 | 12 | 12 | 12 | 12 | mA |
| Resolution | 0.02 | 0.03 | 0.05 | 0.08 | 0.08 | ° | |
| Measure accuracy | @25℃ | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | ° |
| Long term. stability | <0.5 | <0.5 | <0.5 | <0.5 | <0.5 | ||
| Zero Temp.coefficient | -40～85℃ | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ppm/℃ |
| Power-on start time | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | s | |
| response frequency | 20 | 20 | 20 | 20 | 20 | Hz | |
| EMC | According to EN61000 and GBT17626 | ||||||
| MTBF | ≥45000 hours/times | ||||||
| Insulation Resistance | ≥100 MΩ | ||||||
| Impact resistance | 100g@11ms, 3 Axial Direction (Half Sinusoid) | ||||||
| Anti-vibration | 10grms,10～1000Hz | ||||||
| Protection grade | IP67 | ||||||
| Cables | standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2 | ||||||
| Weight | ≤135g (including 1 meter cable) | ||||||
| MCA416L | CONDITION | INDEX | UNIT |
| Resolution | / | 0.1 | ° |
| Absolute accuracy | @25℃ | 0.3 | ° |
| Zero temp. coefficient | -40～85° | ±0.5 | °/℃ |
| Output Interface | RS232/RS485/TTL/4~20mA-0~5V | ||
| communication protocol | MODBUS/68 | ||
| EMC | According to EN61000 and GBT17626 | ||
| MTBF | ≥50000 hour/time | ||
| Insulation resistance | ≥100 megohm | ||
| Anti-impact | 100g@11ms,three axes direction(half sinusoid) | ||
| Anti-vibration | 10grms,10～1000Hz | ||
| Waterproof grade | IP67 | ||
| Housing material | Sand-grinding oxidation of aluminum alloy | ||
| Screw | Three M4 screws | ||
| Cable | Standard 1-meter length, anti-ultraviolet, shielded cable 4*0.4mm2 | ||
| Weight | 60g (exclude cable) | ||
