Product Details
Place of Origin: China
Brand Name: RION
Certification: CE, ISO
Model Number: HCA516/HCA526
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 328USD/pcs
Packaging Details: carton
Delivery Time: 7 word days
Payment Terms: L/C, T/T, PayPal
Supply Ability: 1000/month
Measure Range: |
±30° |
Measure Axis: |
XY |
Resolution: |
0.001° |
Measure Accuracy: |
0.005° |
Long Term Stability: |
0.01° |
Sensitivity Temp. Coefficient: |
≤50ppm/℃ |
Weight: |
190g |
Measure Range: |
±30° |
Measure Axis: |
XY |
Resolution: |
0.001° |
Measure Accuracy: |
0.005° |
Long Term Stability: |
0.01° |
Sensitivity Temp. Coefficient: |
≤50ppm/℃ |
Weight: |
190g |

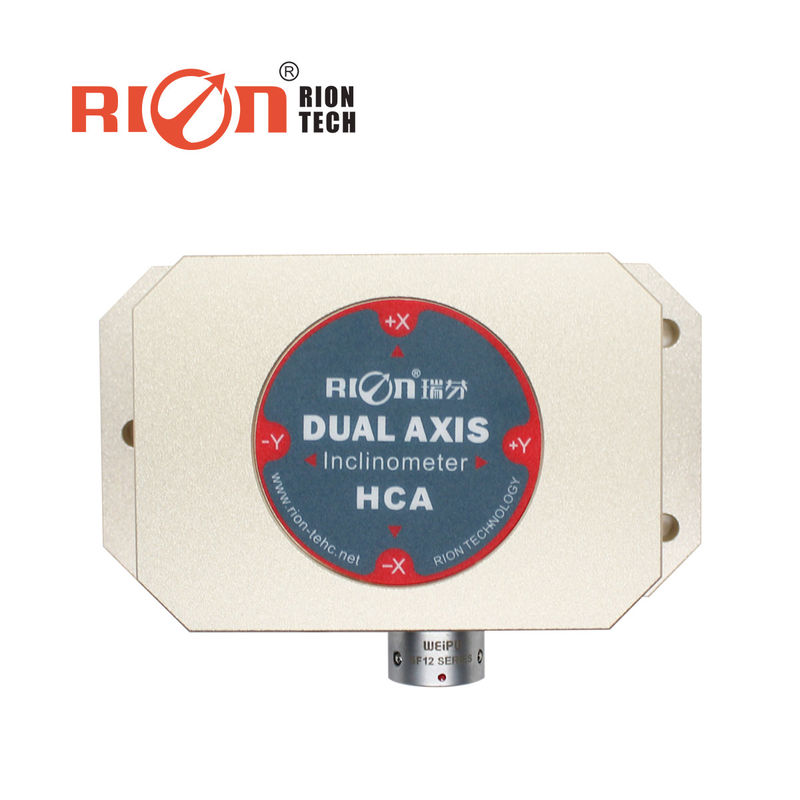

High precision analog current 4-20ma tilt sensor inclinometer with full temper compensation
▶ FEATURES
★ Dual axis inclination measurement
★ Range ± 1 ～ ± 60 ° optional
★ Size: 90 × 50 × 34mm
★ DC 9 ～ 36V wide voltage input
★ Wide temperature operation -40 ～ + 85 ℃
★ Resolution 0.001 °
★ IP67 protection level
★ High vibration resistance> 2000g
★ Waterproof aviation plug
▶ APPLICATION
★Satellite positioning Search
★Rail-mobile monitoring
★engineering mechanical measurement of dip angle
★oil-well drilling equipment
★Radar detection of vehicle platform
★Underground drill posture navigation
★Based on the angle direction measurement
★Satellite communications vehicle posture detection
★Shield pipe jacking application
★Ship’s navigation posture measurement
★Geological equipment inclined monitoring
▶ Parameter
| HCA516&526T-C2 |
CONDITION | PARAMETERS | UNIT | ||
| Measure range | ±10 | ±30 | ±60 | ° | |
| Measure axis | XY | XY | XY | ||
| Resolution | 0.001 | 0.001 | 0.001 | ° | |
| Measure accuracy | @25℃ | 0.005 | 0.01 | 0.02 | ° |
| Long term stability | 0.01 | 0.02 | 0.05 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.002 | ±0.002 | ±0.002 | °/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | s | |
| Output rate | 5Hz,15Hz,35Hz,50Hz can be set | ||||
| Output signal | CAN2.0A | ||||
| EMC | According to EN61000 and GBT17626 | ||||
| MTBF | ≥50000hours/times | ||||
| Insulation Resistance | ≥100MΩ | ||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||||
| Anti-vibration | 10grms,10～1000Hz | ||||
| Protection grade | IP67 | ||||
| Cables | Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 4*0.4mm2 aviation connector | ||||
| Weight | 190g(without cable ) | ||||
=
