One Axis Analog Inclinometer Sensor 35V Voltage Vehicle Leveling
▶ FEATURES
★ Single / dual axis inclination measurement ★ Range ± 1 ～ ± 60 ° optional
★ Accuracy: Refer to technical data ★ Wide voltage input 9 ～ 36V
★ Output mode 0 ～ 5V ★ Wide temperature operation -40 ～ + 85 ℃
★ IP67 protection ★ High vibration resistance> 2000g
★ High resolution 0.001 ° ★ Small size L90mm × W50mm × H34mm (customizable)
▶ APPLICATION
★ Equipment vehicle leveling ★ Bridge and Dam monitoring
★ High-altitude platform safety protection ★ Angle control of medical equipment
★ Attitude navigation of underground drilling rig ★ Leveling of railway gauge and gauge
★ Direction measurement based on tilt angle ★ Tilt monitoring of geological equipment
★ Pitch angle measurement of directional satellite communication antenna
★ Mining machinery, oil drilling equipment ★ Equipment level control
★ Alignment control , curve control
HCA510T & HCA520T is a high-precision analog voltage output single / dual axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane.
Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.
This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!
 HCA510&520T |
CONDITION | PARAMTERS | UNIT | ||
| Measure range | ±10 | ±30 | ±60 | ° | |
| Measure axis | X | X | X | ||
| Zero output | 0° output | 2.5 | 2.5 | 2.5 | V |
| Resolution | 0.001 | 0.001 | 0.001 | ° | |
| Measure accuracy | @25℃ | 0.005 | 0.01 | 0.02 | ° |
| Long term stability | 0.01 | 0.02 | 0.05 | ° | |
| Zero Temp. coefficient | -40～85℃ | ±0.002 | ±0.002 | ±0.002 | °/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | s | |
| Response frequency | 1～20 | 1～20 | 1～20 | Hz | |
| EMC | According to EN61000 and GBT17626 | ||||
| MTBF | ≥50000 hours/times | ||||
| Insulation Resistance | ≥100MΩ | ||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||||
| Anti-vibration | 10grms,10～1000Hz | ||||
| Protection glass | IP67 | ||||
| Cables | Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 5*0.4mm2 aviation connector | ||||
| Weight | 190g(without cable ) | ||||

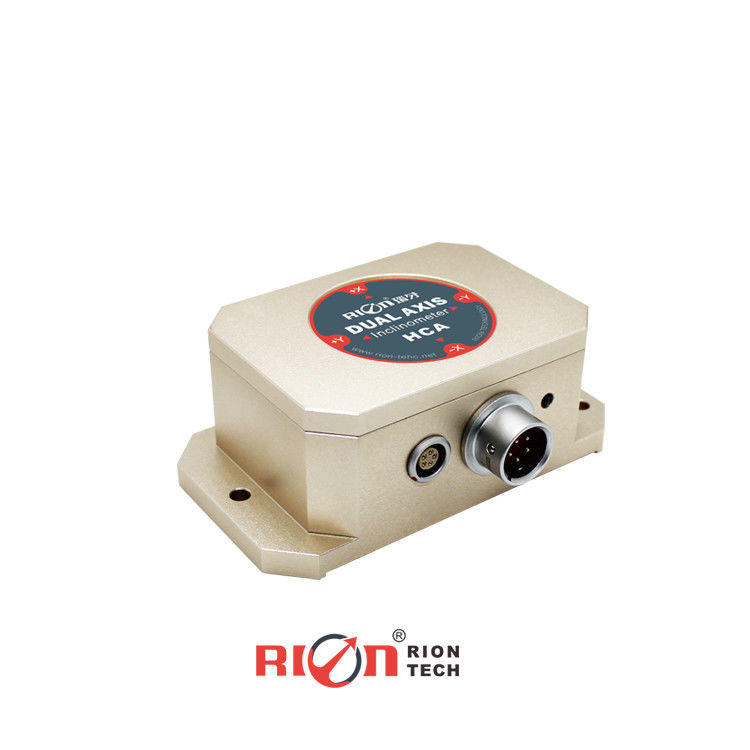

HCA520T engineer vehicle leveling highly accurate MEMS voltage tilt sensor
