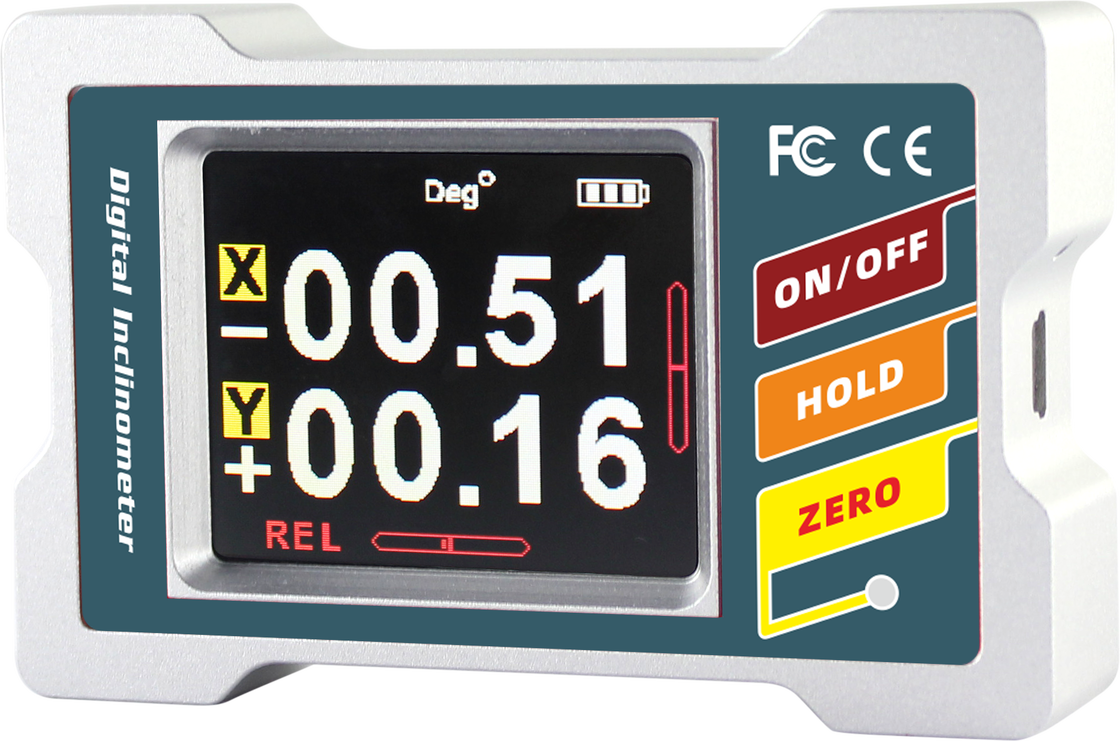

DMI420/410 High Accuracy Digital Display Inclinometer for Industrial platform

DMI410 DMI420 DIGITAL DISPLAY INCLINOMETER.pdf

DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate by himself
• Built-in recharge industry battaries
• Night vision fours colors screen
• IP54 protection class
• Angle/length dual unit switch
• 100g High anti-impact

• Construction of buildings
• Vehicle four-wheel assessment
• Road gradient
• Equipment setup
• Pipe system setup
• Manufacturing platform
• Rotating platform testing
• Cloud level angle measurement
• Manufacturing jig

The DMI410 and DMI420 are high-precision digital display inclinometers developed for industrial angle measurement and control applications. They use advanced micro-electromechanical measurement technology with temperature compensation and calibration functions to provide stable and reliable angle measurement in various working environments.

The main difference is the measurement axis and range:

• DMI410: Single-axis digital inclinometer with a measurement range of ±180°
• DMI420: Dual-axis digital inclinometer with a measurement range of ±90°

Both models provide high accuracy, fast response, and stable measurement performance.

The DMI410 and DMI420 digital inclinometers provide a measurement accuracy of less than 0.05° full scale with a resolution of 0.01°, ensuring precise angle measurement for industrial applications.

The digital inclinometer is widely used in:

• Building construction measurement
• Machinery installation
• Automobile four-wheel alignment testing
• Road slope measurement
• Pipeline installation
• Industrial platform leveling
• Turntable angle testing
• Production jig inspection
• Cloud deck angle detection

The inclinometer uses a dual-core measurement unit combined with RION's patented interleaved compensation algorithm and temperature drift compensation technology. These technologies help reduce measurement errors caused by environmental temperature changes and improve long-term stability and repeatability.

Yes. The DMI410 and DMI420 support user calibration, allowing users to adjust the instrument according to their application requirements and maintain measurement accuracy during long-term operation.

Yes. The DMI410/DMI420 features magnetic adsorption installation design. It can be easily attached to the side or bottom reference surfaces, allowing convenient measurement from different installation positions.

Yes. The inclinometer is designed for industrial applications and features an IP54 protection rating and a high-impact resistance design of up to 100g, making it suitable for demanding working conditions.

Yes. The DMI410/DMI420 supports angle and length dual-unit switching, providing flexible measurement options for different applications.

The product is equipped with built-in rechargeable industrial batteries, providing convenient operation and reducing the need for frequent battery replacement.

The DMI410/DMI420 combines high accuracy, stable performance, easy installation, and cost-effective industrial reliability. It is an ideal solution for professional angle measurement and leveling applications.
