Shock Resistance High Accuracy Digital Inclinometer IP54 For Data Collection

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: DMI810/20

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $435.00/Pieces

Packaging Details: 1pcs inclinometer / inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 5-10 work days

Payment Terms: T/T, , Paypal

Supply Ability: 30000 Piece/Pieces per Week inclinometers are avaliable

Get Best Price
Contact Now
Specifications
Highlight:

Data Collection Digital Inclinometer

,

IP54 High Accuracy Digital Inclinometer

,

Shock resistance Digital Inclinometer

Best Accuracy:
<0.005°
Working Temperature:
-10℃~ +70℃
Shock Impact:
10grms、10~100Hz
Weight:
≤350g
Maximum Measure Range:
±30°
Angle Resolution:
0.001°
Power Supply:
3.6V Lithium Battery
Repeatability:
0.003°
Best Accuracy:
<0.005°
Working Temperature:
-10℃~ +70℃
Shock Impact:
10grms、10~100Hz
Weight:
≤350g
Maximum Measure Range:
±30°
Angle Resolution:
0.001°
Power Supply:
3.6V Lithium Battery
Repeatability:
0.003°
Description

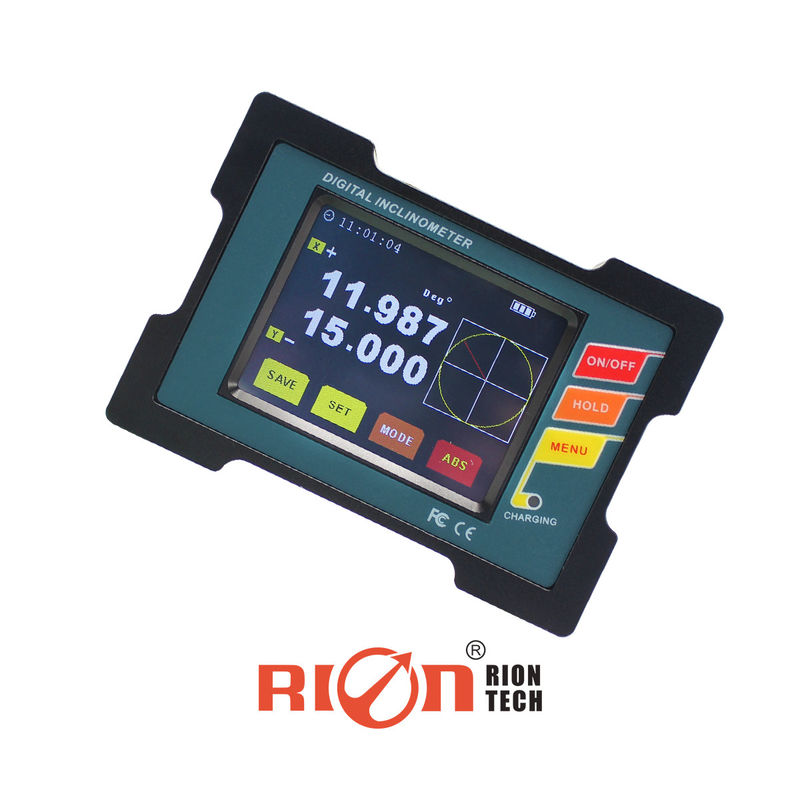

Shock Resistance High Accuracy Digital Inclinometer IP54 For Data Collection

Shock resistance High Accuracy Digital Inclinometer IP54 for Data Collection

DMI810 DMI820 DIGITAL DISPLAY INCLINOMETER DIGITAL...

Product Description:

DMI810/DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !



Features:

★ User can set the alarm value by himself

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Double benchmark strong magnet installation

★ Working Temperature : -10°~ +70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

.



Technical Parameters:

Shock Resistance High Accuracy Digital Inclinometer  IP54 For Data Collection 0PARAMETER DMI810 DMI820 UNIT
Meausre Axis Single Axis Daul Axis Axis
Angle Measure Range ±15 ° ±30 ° ±15 ° ±30 ° °
Angle Measurement Accuracy(Full Range) <0.005 <0.01 <0.005 <0.01 °
Angle Measure Resolution 0.001 0.001 0.001 0.001 °
Mm/m Measure Range 267 577 267 577 mm/m
Mm/m Measure Accuracy 0.1 0.2 0.1 0.2 mm/m
Mm/m Measure Resolution 0.02 0.02 0.02 0.02 mm/m
Repeatability 0.003 0.003 0.003 0.003 °
Measurement Mode Angle,Degree/Minute/Second,Mm/m Three modes can be set
Working Temperature -10°~ +70℃
Working Humidity 85%RH
Power Supply 3.7V Charging Lithium Battery
Ideal Charging Time 5h
Battery Continuous Working Time 11h
Equipped With Pc Software Vc Software
Data Output Signal USB2.0 (Virtual Serial Device)
Connect Plug In Standard Usb Connector, Rechargeable
Shock Resistance 10g@11ms,3 Axial Direction (Half Sinusoid)
Shock Impact

10grms,10~100Hz

Waterproof Grade IP54
Material Aluminum Alloy Anodizing
Lcd 64 True Colors Night Vision Display Screen
Lcd Visible Area Size L57.6*W43.2mm
Size L109*W77*H27mm
Weight ≤350g

This High Accuracy Digital Inclinometer is a high definition, high quality and high precision digital inclinometer designed to meet the technical parameters listed above.



Applications:

★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

★ Industrial platform



Shock Resistance High Accuracy Digital Inclinometer  IP54 For Data Collection 1Shock Resistance High Accuracy Digital Inclinometer  IP54 For Data Collection 2

Shock Resistance High Accuracy Digital Inclinometer  IP54 For Data Collection 3
