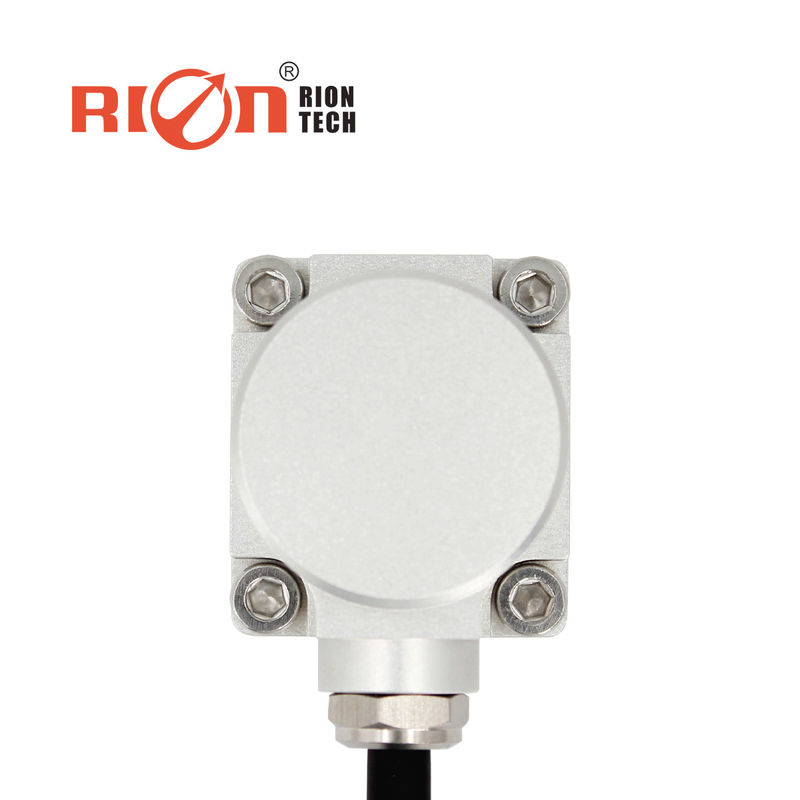

AKM390 Triaxial Vibration Sensor Analog Output Silicon Capacitive Sensor

AKM390 Triaxial  Analog Output, Silicon Capacitive Sensor

Product Description:

The AKM390 three-axis Vibration sensor is a widely used acceleration sensor series product independently developed and produced, which can be applied in multiple fields such as vibration testing and impact testing. The product adopts analog voltage output. AKM390 is a single crystal silicon capacitive sensor, consisting of a silicon chip that has undergone micro mechanical processing, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, has been calibrated, has a sturdy structure, and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection against over voltage. This series of products features sturdy structure, low power consumption, and excellent deviation stability, ensuring the reliability of product output.

Features:

• Three-axis (X, Y, Z)
• Output voltage: 0 ~ 5V
• Power supply voltage: 9~36V
• Operating temperature: -40 ° C ~ + 85 ° C
• Excellent deviation stability, good environmental performance (shock, vibration and temperature)

Technical Parameters:

AKM390	Parameter						Unit
Measure range	±2	±4	±8	±10	±20	±40	g
Deviation calibration	<1	<1	<1	<1	<1	<1	mg
Measure axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Power on/off repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Sensitivity (± 10%)	1250	625	312.5	250	125	62.5	mv/g
Temp. coefficient of deviation	0.01	60.01	0.01	0.05	0.05	0.05	%/℃
Resolution/Threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Nonlinearity	<0.5	<0.5	<0.8	<1	<1	<1	% FS(max)
Response frequency	500	500	500	500	500	500	Hz
Bandwidth (3DB)	1000	1000	1000	1000	1000	1000	Hz
Cross-axis sensitivity	1	1	1	2	2	2	%
Lateral Vibration Sensitivity Ratio	1	1	2	5	5	5	%
Resonant frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Noise density	21	21	21	86.6	86.6	86.6	μg/√Hz
0 G Output 2.5V	<0.01	<0.01	<0.01	<0.008	<0.008	<0.008	mV
Output voltage	0~5V
Input (VDD _ VSS)	9-36 VDC
Operating current consumption	<60mA @ 12 VDC
Protection	IP67
Material	aerospace aluminum
Weight	Product net weight: ≤116g, magnetic base: ≤50g
Size	Product size: L36 × W32 × H24mm Size of magnetic adsorption base plate: L36 × W32 × H8.1mm

Applications:

★ Bridge
★ Automobile
★ Roller
★ Wind power
★ Medical equipment
★ Large machinery and engine
★ Low frequency vibration and automatic monitoring
