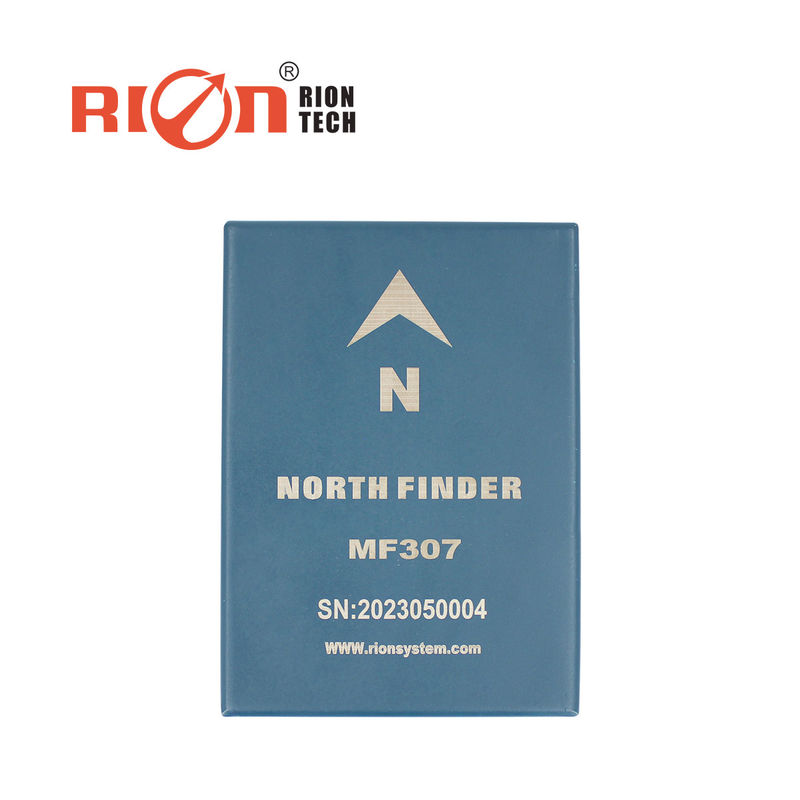

MF3 COMPACT GYROSCOPIC NORTH FINDER DIGITAL OUTPUT | HIGH-PRECISION AZIMUTH NAVIGATION

Product Details

Place of Origin: Shenzhen

Brand Name: RION

Certification: CE

Model Number: MF3

Document: MF307EX NORTH FINDER.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $5,650.00~$8,450.00

Packaging Details: 1pcs gyro sensor in each inner box , 100pcs /ctn

Delivery Time: 2-4 weeks

Payment Terms: T/T,,Paypal

Supply Ability: 1000 Box/Boxes per Month inclinometers are avaliable

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Horizontal Accuracy ≤0.05° Gyroscopic North Finder, Digital Output Gyroscopic North Finder, Compact Gyroscopic North Finder


MTTR:	≤30min	MTBF:	≥ 10000 Hours
Digital Output:	TTL/RS232/RS422/RS485	Power Supply:	9.5~36VDC
Maintain Heading:	3°/h	Material:	Stainless Steel + Aluminum Alloy
Operating Temperature:	-20℃～+50℃	Weight:	≤ 1.1 Kg

MTTR:	≤30min
MTBF:	≥ 10000 Hours
Digital Output:	TTL/RS232/RS422/RS485
Power Supply:	9.5~36VDC
Maintain Heading:	3°/h
Material:	Stainless Steel + Aluminum Alloy
Operating Temperature:	-20℃～+50℃
Weight:	≤ 1.1 Kg

Description

MF3 COMPACT GYROSCOPIC NORTH FINDER DIGITAL OUTPUT | HIGH-PRECISION AZIMUTH NAVIGATION

Product Specifications

Attribute	Value
MTTR	≤30min
MTBF	≥ 10000 Hours
Digital Output	TTL/RS232/RS422/RS485
Power supply	9.5~36VDC
Maintain heading	3°/h
Material	Stainless steel + aluminum alloy
Operating Temperature	-20℃～+50℃
Weight	≤ 1.1 Kg

Product Overview

The gyroscope-based north finder is designed to quickly and independently determine the true north direction. It works by tracking the Earth's rotation angular velocity through a high-precision gyroscope, extracting the Earth's rotation signal, and computing the angle between the gyroscope's primary axis and the true north direction. This allows it to deliver accurate azimuth information for navigation and positioning systems.

System Structure

This device is a highly integrated electromechanical system, incorporating a gyroscope, accelerometer, precision mechanical rotation module, and an embedded computing unit. These components work together to ensure accurate north-seeking performance even in dynamic or challenging environments.

Technical Parameters

Parameters	MF307EX
North seeking time	3 min / 2 min (adjustable)
Range of tilt angles over which north can be found	±15°
North seeking accuracy(1σ)	0.5°
Maintain heading (Zero bias stability 10s 1σ)	3°/h
Power supply	9.5~36VDC (Attention: diameter of power supply line > 0.3mm2, power line and ground wire)
Operating current	Typical value: 0.5 A, maximum impact current: 1 A
Interface	TTL/RS232/RS422/RS485 optional
Operating temperature	-20℃~+50℃
Storage temperature	-40℃~+60℃
Hot and humid environmental conditions	Relative humidity less than 95%
How it works	Automatic self-check is started after power on, automatic north seeking is performed after the self-check is successful, and a north seeking result is sent to the upper computer after the north seeking is completed.
Insulation resistance	The insulation resistance between the independent circuits of the gyro north finder and between the circuit and the shell shall not be less than 10 MΩ under standard atmospheric conditions.
MTBF	≥ 10000 hours
MTTR	≤30min
Material	Stainless steel + aluminum alloy
Weight	≤ 1.1 kg (excluding cable)

Installation Method

Facing the arrow of the gyro north finder, the left and right sides of the mounting base plate are the mounting reference planes. Align the reference planes with the mounting head and tail lines of the carrier, and fix the gyro north finder on the carrier with three M5 screws.

Shell Size

Completeness Requirements

The complete set of equipment includes:

1 set of fiber optic gyroscope north finder
One aviation plug connecting wire
