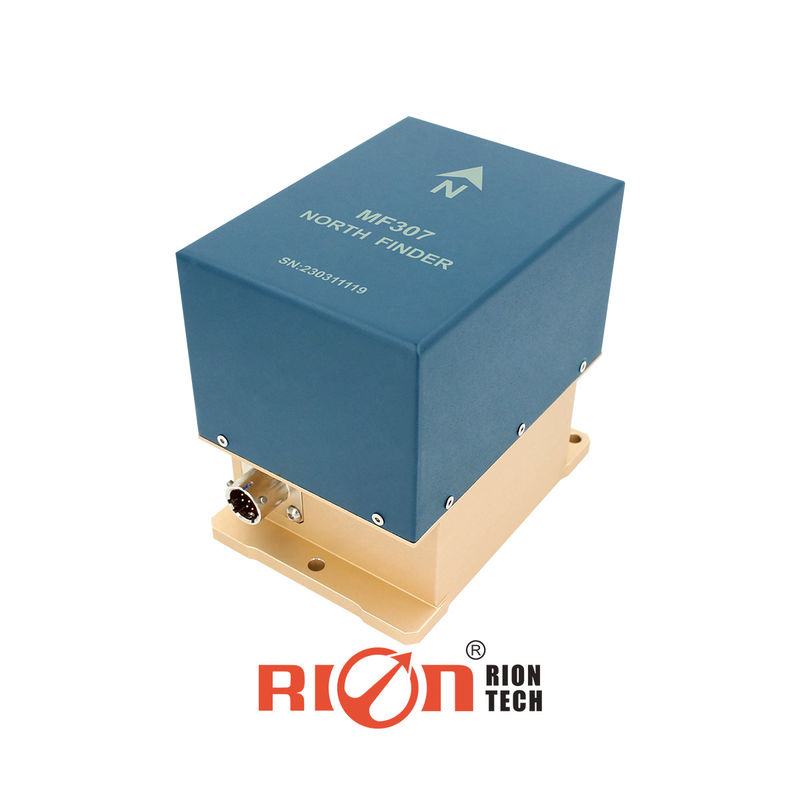

MF3 COMPACT GYROSCOPIC NORTH FINDER DIGITAL OUTPUT | HIGH-PRECISION AZIMUTH NAVIGATION

Product Details

Place of Origin: Shenzhen

Brand Name: RION

Certification: CE

Model Number: MF3

Document: MF307EX NORTH FINDER.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $5,650.00~$8,450.00

Packaging Details: 1pcs gyro sensor in each inner box , 100pcs /ctn

Delivery Time: 2-4 weeks

Payment Terms: T/T,,Paypal

Supply Ability: 1000 Box/Boxes per Month inclinometers are avaliable

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Horizontal Accuracy ≤0.05° Gyroscopic North Finder, Digital Output Gyroscopic North Finder, Compact Gyroscopic North Finder


MTTR:	≤30min	MTBF:	≥ 10000 Hours
Digital Output:	TTL/RS232/RS422/RS485	Power Supply:	9.5~36VDC
Maintain Heading:	3°/h	Material:	Stainless Steel + Aluminum Alloy
Operating Temperature:	-20℃～+50℃	Weight:	≤ 1.1 Kg

MTTR:	≤30min
MTBF:	≥ 10000 Hours
Digital Output:	TTL/RS232/RS422/RS485
Power Supply:	9.5~36VDC
Maintain Heading:	3°/h
Material:	Stainless Steel + Aluminum Alloy
Operating Temperature:	-20℃～+50℃
Weight:	≤ 1.1 Kg

Description

MF3 COMPACT GYROSCOPIC NORTH FINDER DIGITAL OUTPUT | HIGH-PRECISION AZIMUTH NAVIGATION

MF3 Compact Gyroscopic North Finder with Digital Output

High-Precision Azimuth Navigation System

Key Specifications

Attribute	Value
MTTR	≤30min
MTBF	≥ 10000 Hours
Digital Output	TTL/RS232/RS422/RS485
Power supply	9.5~36VDC
Maintain heading	3°/h
Material	Stainless steel + aluminum alloy
Operating Temperature	-20℃～+50℃
Weight	≤ 1.1 Kg

Product Overview

The MF3 gyroscope-based north finder is designed to quickly and independently determine true north direction. Utilizing a high-precision gyroscope, it tracks Earth's rotation angular velocity to compute the angle between the gyroscope's primary axis and true north, delivering accurate azimuth information for navigation and positioning systems.

System Structure

This highly integrated electromechanical system combines:

Precision gyroscope
Accelerometer
Mechanical rotation module
Embedded computing unit

These components work together to ensure accurate north-seeking performance in dynamic or challenging environments.

Technical Parameters

Parameter	MF307EX Specification
North seeking time	3 min/2 min (adjustable)
Tilt angle range	±15°
North seeking accuracy (1σ)	0.5°
Maintain heading	3°/h
Power requirements	9.5~36VDC (wire diameter > 0.3mm²)
Operating current	0.5A typical, 1A max
Interface options	TTL/RS232/RS422/RS485
Environmental tolerance	-20℃~+50℃ operating, -40℃~+60℃ storage

Installation Method

Align the mounting reference planes (left/right sides of base plate) with carrier head/tail lines. Secure with three M5 screws, facing the gyro north finder's arrow direction.

Dimensions

Package Contents

1 × Fiber optic gyroscope north finder unit
1 × Aviation plug connecting wire

Operational Features

Automatic self-check upon power-up
North seeking completes in 2-3 minutes
Results automatically sent to host system
Insulation resistance >10MΩ between circuits
