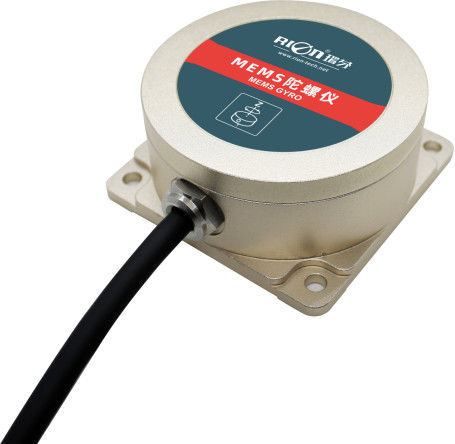

Drift Stability Mems Gyroscope Sensor For Ships Electronic Needle Error Compensation

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: ISO

Model Number: TG632D-485

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $469/Pieces >=1 Pieces

Packaging Details: Carton

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 5000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

DRIFT STABILITY MEMS Gyroscope Sensor

,

SHIPS MEMS Gyroscope Sensor

,

Mems Gyroscope Sensor For Ships

Measuring Range:
±300°/s
Measuring Axis:
X、Y、Z(optional)
Bandwidth:
>100Hz
Resolution:
0.05°/s
Output Signal:
RS232/RS485
Nonlinear:
0.06% Of FS
Temperature Drift:
< ±0.1°/sec,/℃
Start Time:
<1s
Input Voltage:
+9~36V
Current:
60mA
Time Drift:
8°/h
Working Temp.(℃):
-40 ~ +80
Measuring Range:
±300°/s
Measuring Axis:
X、Y、Z(optional)
Bandwidth:
>100Hz
Resolution:
0.05°/s
Output Signal:
RS232/RS485
Nonlinear:
0.06% Of FS
Temperature Drift:
< ±0.1°/sec,/℃
Start Time:
<1s
Input Voltage:
+9~36V
Current:
60mA
Time Drift:
8°/h
Working Temp.(℃):
-40 ~ +80
Description
Drift Stability Mems Gyroscope Sensor For Ships Electronic Needle Error Compensation

Drift Stability MEMS Gyroscope Sensor for Ships Electronic Needle Error Compensation









KEY FEATURES



★ High performance drift stability

★ Low noise

★ Light weight

★ Long life,strong stability

★ Cost-effective

★ Excellent vibration performance

★ All solid state

★ Compact & light design

★ RS232/RS485/SPI output optional

★ Wide temp. range-40 ~+85℃

★ DC+9~36V power supply

★ Temperature drift< ±0.1°/sec/℃



APPLICATION



★ Navigation

★ Car navigation
★ Platform stability

★ Auto safety system

★ Remote control helicopters
★ Industrial control

★ Robot

★ 3D virtual reality

★ Equipments

★ GPS combination

★ Camera stability
★ Turck-mounted satellite antenna equipment

★ Ships electronic needle error compensation on inclined(angle rate)induction equipment


GENERAL DESCRIPTION



TG632D is a gyroscope (angle rate sensor) based on the micro mechanical principle, a miniature inertial devices for mainly measuring the angular velocity of a moving object. Product internal with the silicon ultrafine precision ring sensing technology so that it has a high-performance, waterproof,anti-vibration, light weight, anti-electromagnetic interference characteristics and etc. Uninterrupted the machine with self-test technology, the filtering algorithm and the first time in the country by eliminating resonance technology to solve the influence on data because of the surrounding noise or vibration interference source to the ordinary gyroscope. TG632D add another international temperature sensor compensation technology to solve the temperature drift impact problems,with over-temperature stability and long life characteristics etc. to realize the domestic similar products technology-leading technology.

Products with high cost-effective, small volume ,more advantages than the FOG in application fields, is now widely used in the automotive, marine, moving objects, position control & attitude control, and other applications that require precise angle measurement occasions !





Detailed Data
Drift Stability Mems Gyroscope Sensor For Ships Electronic Needle Error Compensation 0TG632D parameter
Measuring range ±50°/s ±150°/s ±300°/s
Measuring axis X,Y,Z(optional)
Bandwidth >100Hz >100Hz >100Hz
Resolution 0.05°/s 0.1°/s 0.2°/s
Nonlinear 0.06% of FS 0.1% of FS 0.15% of FS
Temperature drift < ±0.1°/sec,/℃ < ±2°/sec < ±3°/sec
Start time <1s
Input voltage +9~36V
Current 60mA
Working temperature -40~+85℃
Store temperature -40~+85℃
Time Drift 8°/h
Shock 5g~10g
Impact 200g pk,2ms,½sine
Working life 11 years
Output rate 5Hz,15Hz,35Hz,50Hz can be set
Output signal RS232/RS485/TTL
MTBF ≥50000 hours/times
Insulation resistance ≥100M
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection class IP67
Connector 4 pins with 1M cable
Weight 152g(standard cable)











Drift Stability Mems Gyroscope Sensor For Ships Electronic Needle Error Compensation 1



Drift Stability Mems Gyroscope Sensor For Ships Electronic Needle Error Compensation 2

Dimension

Drift Stability Mems Gyroscope Sensor For Ships Electronic Needle Error Compensation 4
