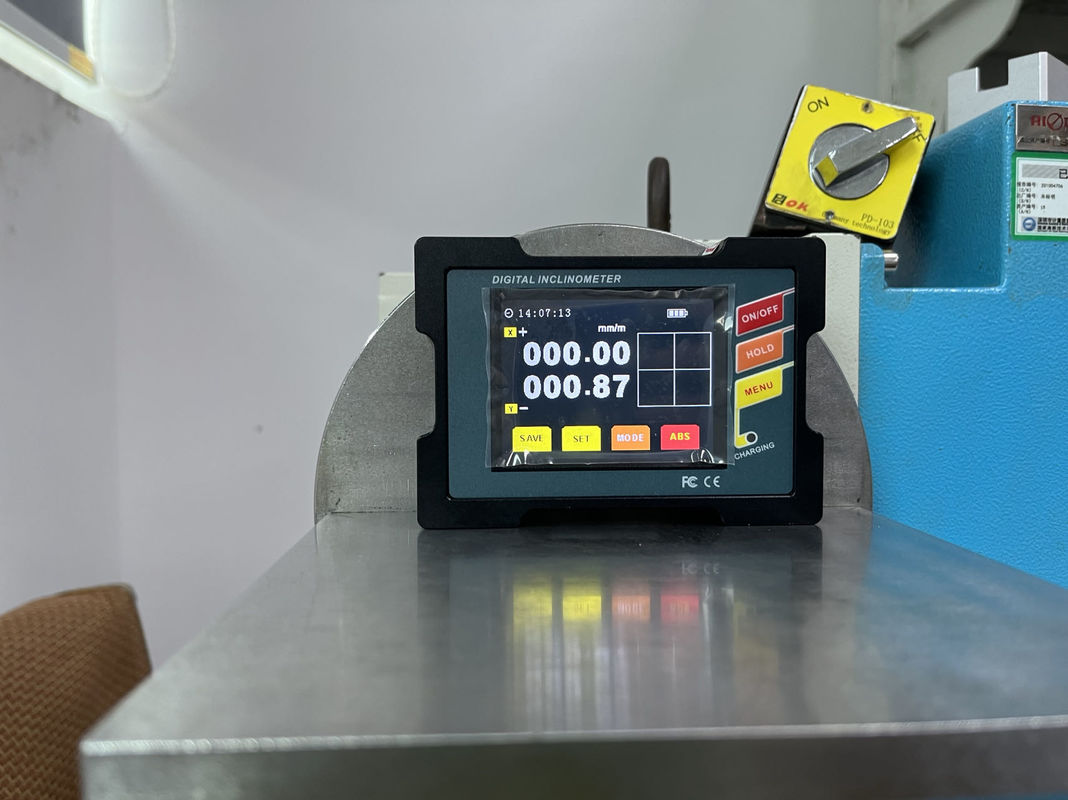

2 Axis Digital Inclinometer for Building Construction Automobile Four-wheel Testing DMI820
Download the data sheet of DMI810/DMI820 digital inclinometer
DMI810 DMI820 DIGITAL DISPLAY INCLINOMETER DIGITAL...
▶ FEATURES
★ Best accuracy:<0.005°
★ Repeatability:0.003°
★ Angle resolution:0.001°
★ Maximum measure range:±30°
★ User can set the alarm value by himself
★ Data store function
★ Absolute/Relative measurement can switch
★ Double benchmark strong magnet installation
★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function
★ Auto temperature drift compensation
★ User can calibrate ZERO by himself
★ Built-in rechargable industry batteries
★ Night vision fours colors screen
★ °/mm/m Dual units switch function
★ Filter frequency optional
★ Three kinds of measurement mode selectable (radian, angle, mm)
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Industrial platform
★ Racing car
▶ DESCRIPTION
Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !
▶ TECHNICAL DAT
| PARAMETER | DMI810 | DMI820 | UNIT | |||
| Angle Measure range | ±15 ° | ±30 ° | ±15 ° | ±30 ° | ° | |
| MM measure range | 267 | 577 | 267 | 577 | mm/m | |
| Meausre axis | Single axis | Single axis | Single axis | Single axis | ||
| Highest measurement accuracy (full range) | <0.005 | <0.01 | <0.005 | <0.01 | °(RMS) | |
| Angle Measure resolution | 0.001 | 0.001 | 0.001 | 0.001 | ° | |
| Repeatability | 0.003 | 0.003 | 0.003 | 0.003 | ° | |
| MM measure accuracy | 0.1 | 0.2 | 0.1 | 0.2 | mm/m | |
| Three measurement mode selectable |
①Angle ②degree, minute, second ③mm/m three modes can be set |
/ | ||||
| MM measure res | 0.02 | mm/m | ||||
| LCD | 64 true colors night vision display screen | / | ||||
| LCD visible area size | L57.6*W43.2 | mm | ||||
| Working temperature | -10°~ +70℃ | ℃ | ||||
| Working humidity | 85 | %RH | ||||
| Power supply | 3.7V Charging Lithium battery | V | ||||
| Ideal charging time | 5 | h | ||||
| Battery sustainable charging times | 11 | h | ||||
| Equipped with PC software | VC software | / | ||||
| Data output signal | USB1.1 (Virtual Serial Device) | / | ||||
| Connect plug in | Standard USB connector, rechargeable | / | ||||
| Shock resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) | g | ||||
| Shock impact | 10grms,10~100Hz | g | ||||
| Waterproof grade | IP54 | / | ||||
| Material | Aluminum alloy Anodizing | / | ||||
| Size | L107*W75*H27.1 | mm | ||||
| Weight | 300 | g | ||||
★ Turntable testing ★ Pan unit angle detection ★ Production jig
PRODUCT DIMENSION
