Wireless Transmission Tilt Sensor Inclinometer For Engineering Mechanical Measurement

Wireless Transmission Inclination Sensor Monitor for Engineering Mechanical Measurement

▶ FEATURES

★ Remote display of all inclination product data of RION

★ Transmission distance up to: 200m

★ Resolution: 0.01°/0.001°

★ Powered by lithium battery

★ Wide temperature operation -20～+70℃

★ IP54 protection grade

★ Shell size: L115×W38×H77mm

★ For installation with screw holes

▶ APPLICATION

★ Engineering vehicle leveling

★ Bridge and dam monitoring

★ Laser equipment positioning

★ Angle control of medical equipment

★ Attitude navigation of underground drilling rigs

★ Railway gauge and gauge leveling

★ Precision machine tool level control

★ Geological equipment tilt monitoring

▶ ENERAL DESCRIPTION

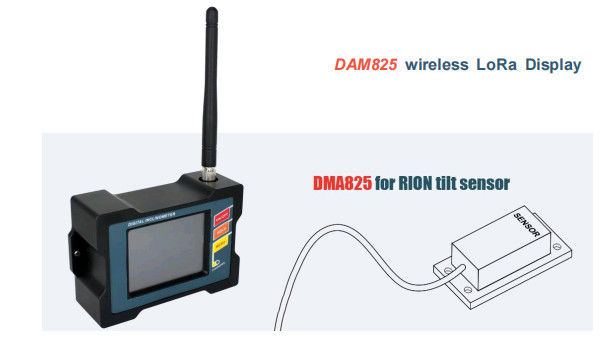

RION company independently develops and produces wireless LoRa displays, which can be matched with some of our inclination sensor products, it can display the real-time angle of the sensor from a long distance, adopts the latest LoRa technology, and has a long transmission distance. This product also uses frequency hopping technology, which can pass pseudo random codes. The sequence is subjected to frequency shift keying, which makes the carrier frequency hop continuously and spreads the spectrum. It has the characteristics of strong anti-interference ability, low working power consumption and low cost, and can adapt to most complex environments.

The display adopts an industrial wide temperature digital screen, and the screen is clearly visible,it is equipped with PVC film buttons to enhance the customer's operating experience, and it is equipped with a large rechargeable battery to achieve long battery life, the metal shell design is portable and easy to install, especially suitable for real time monitor jobs in harsh industrial sites. Accept the customization of customer function keys, panel colors, and third-party sensors for access acquisition solutions.

▶ TECHNICAL DATA

DMA825	Parameter	Unit
Communication method	470M LoRa communication	/
Supported resolution	0.01/0.001	°
LCD screen	64 True Colors Night Vision Display Screen	/
LCD Viewable area size	L57.6*W43.2	mm
Power	3.7V Chargeable lithium battery	V
Working humidity	85	%RH
Storage temperature	-20～+35	℃
Working temperature	-20～+70	℃
charging temperature	0～+45	℃
Charging interface	5V Standard USB connector	/
Ideal charging time	12	hour
Battery continuous working time	8	hour
Anti-vibration	10g@11ms,3 Axial Direction (Half Sinusoid)	g
impact resistance	10grms,10～100Hz	g
Waterproof grade	IP54	/
Material	Aluminum alloy anodizing	/
Size	L115×W38×H77	mm
Weight	300	g
