Product Details
Place of Origin: China
Brand Name: RION
Certification: CE, FCC,ROHS , ISO
Model Number: TL610D
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: US$246~US$462
Packaging Details: carton with safety sponge
Delivery Time: 1-2 weeks
Gyroscope Sensor Range: |
Max ±300°/s |
Bandwidth: |
>2000Hz |
Resolution: |
0.1°/s |
Output Voltage: |
0-5V |
Time Drift: |
20°/h |
Protection: |
IP67 |
Gyroscope Sensor Range: |
Max ±300°/s |
Bandwidth: |
>2000Hz |
Resolution: |
0.1°/s |
Output Voltage: |
0-5V |
Time Drift: |
20°/h |
Protection: |
IP67 |

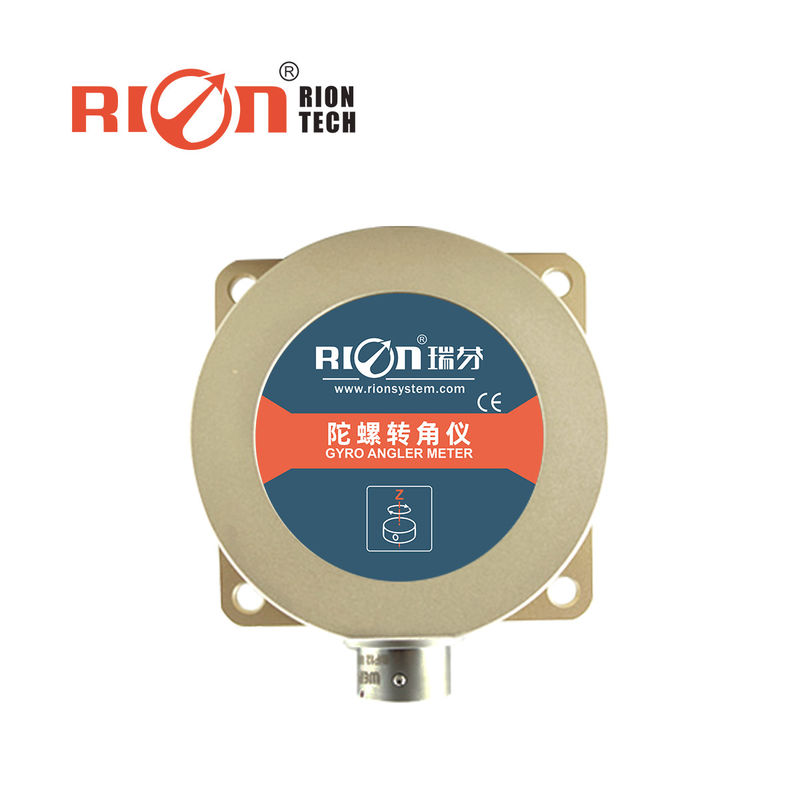

TL610D MEMS Voltage 5V Electronic Gyroscope Sensor High Performance Drift Stability Angular Rate Sensor
▶ KEY FEATURES
★ High performance drift stability
★ Low noise
★ Light weight
★ Long life,strong stability
★ Cost-effective
★ Excellent vibration performance
★ Compact & light design
★ 0～5V voltage output
★ Wide temperature range
★ DC+9～36V power supply
▶ APPLICATION
★ Navigation
★ Car navigation
★ 3D virtual reality
★ Platform stability
★ Auto safety system
★ Remote control helicopters
★ Turck-mounted satellite antenna equipment
★ Industrial control
★ Equipments
★ Robot
★ Ships electronic needle error compensation on inclined(angle rate) induction equipment
▶ GENERAL DESCRIPTION
TL610D is a gyroscope (angle rate sensor) based on the micro mechanical principle,
Products with high cost-effective, small volume ,more advantages than the FOG in application fields, is now widely used in the automotive, marine, moving objects, position control & attitude control, and other applications that require precise angle measurement occasions !
▶ TECHNICAL DATA
| TL610D |
PARAMETERS | ||
| Measure range | ±50°/s | ±150°/s | ±300°/s |
| Measure axis | X,Y,Z(optional) | X,Y,Z(optional) | X,Y,Z(optional) |
| Bandwidth | >2000Hz | >2000Hz | >2000Hz |
| Resolution | 0.1°/s | 0.1°/s | 0.1°/s |
| Nonlinear | 0.1% of FS | 0.1% of FS | 0.1% of FS |
| Temperature drift | < ±0.1°/sec,/℃ | < ±0.1°/sec,/℃ | < ±0.1°/sec,/℃ |
| Start time | 5ms | 5ms | 5ms |
| Input voltage | 9~36V | 9~36V | 9~36V |
| Output voltage | 0~5V | 0~5V | 0~5V |
| Current | 6mA | 6mA | 6mA |
| Working temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ |
| Store temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ |
| Capacitive load | 1000Pf | 1000Pf | 1000Pf |
| Shock | 5g~10g | 5g~10g | 5g~10g |
| Impact | 200g pk,2ms,½sine | ||
| Time Drift | 20°/h | ||
| Working life | 11 years | ||
| Electromagnetic compatibility | According to EN61000 and GBT17626 | ||
| MTBF | ≥98000hours/times | ||
| Insulation resistance | ≥100M | ||
| Shockproof | 100g@11ms,3Times/Axis(half sinusoid) | ||
| Anti-vibration | 10grms,10～1000Hz | ||
| Protection class | IP67 | ||
| Connector | 5 pins air-plug, matched with 1M cable | ||
| Weight | 110g(Without cable) | ||
