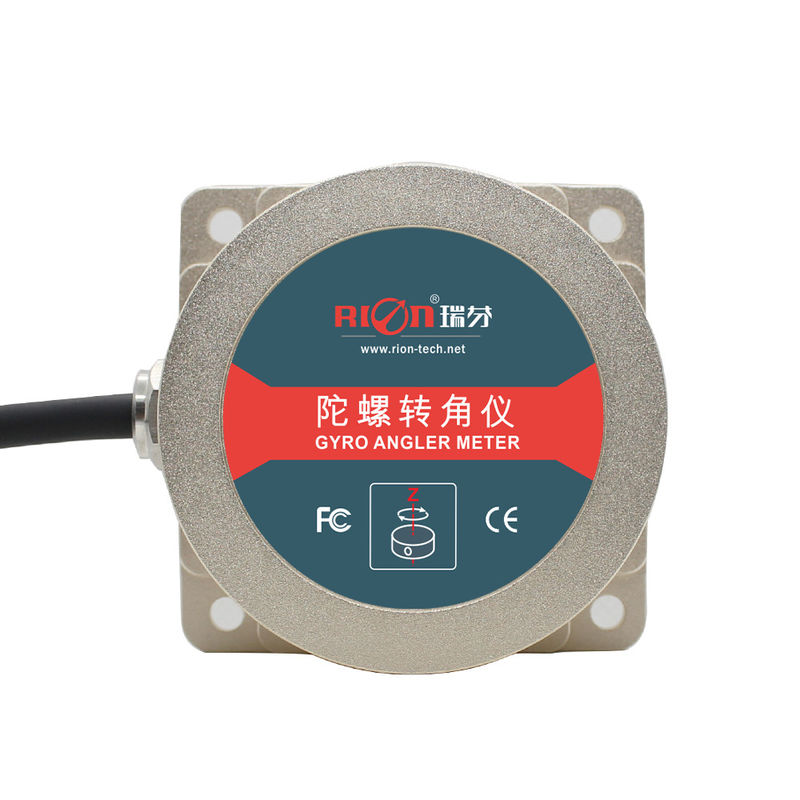

TL740D ANGULAR GYRO SENSOR for AGV angle sensor fo...
▶ KEY FEATURES
★ relative heading angle output
★ Strong vibration resistance
★ Light weight
★ Long life,strong stability
★ Cost-effective
★ All solid state
★ Compact & light design
★ RS232/RS485/TTL output optional
★ DC9~36V power supply
▶ APPLICATION
★ AGV truck
★ Car Navigation
★ 3D virtual reality
★ Platform stability
★ Auto safety system
★ UAV / Robot
★ Turck-mounted satellite antenna equipment
★ Industrial control
▶ GENERAL DESCRIPTION
TL740D is RION-TECH newly developed horizontal relative heading angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s relative heading angle .The product inernal integrated RION’s Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .
This product is specially used for robot car, AVG vehicle relative heading orientation, attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
▶ SPECIFICATIONS
 TL740D |
PARAMETERS |
| Mesuring range | relative heading Angle (±180°) |
| Acquisition bandwidth | >100Hz |
| Resolution | 0.01° |
| relative heading accuracy | <0.1°/min |
| positional accuracy | <2mm/m (converted from angle accuracy) |
| Nonlinear | 0.1% of FS |
| Max angle rate | 150°/s |
| Accelerometer range | ±4g |
| Acceleroemter resultuion | 0.001g |
| Acceleroemter accuracy | 5mg |
| Starting time | 5s(Static) |
| Input Voltage | DC9V~36V |
| Current | 60mA(12V) |
| Working Temp. | -40 ~ +85℃ |
| Storage Temp. | -40 ~ +85℃ |
| Vibration | 5g~10g |
| Impact | 200g pk,2ms,½sine |
| Working life | 10 years |
| Output rate | 5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set |
| Output signal | RS232 / RS485 / TTL (Optional) |
| MTBF | ≥98000 hours /times |
| Insulation resistance | ≥100 Megohm |
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Protecting | IP67 |
| Weight | ≤150g (including 1 meter cable) |
