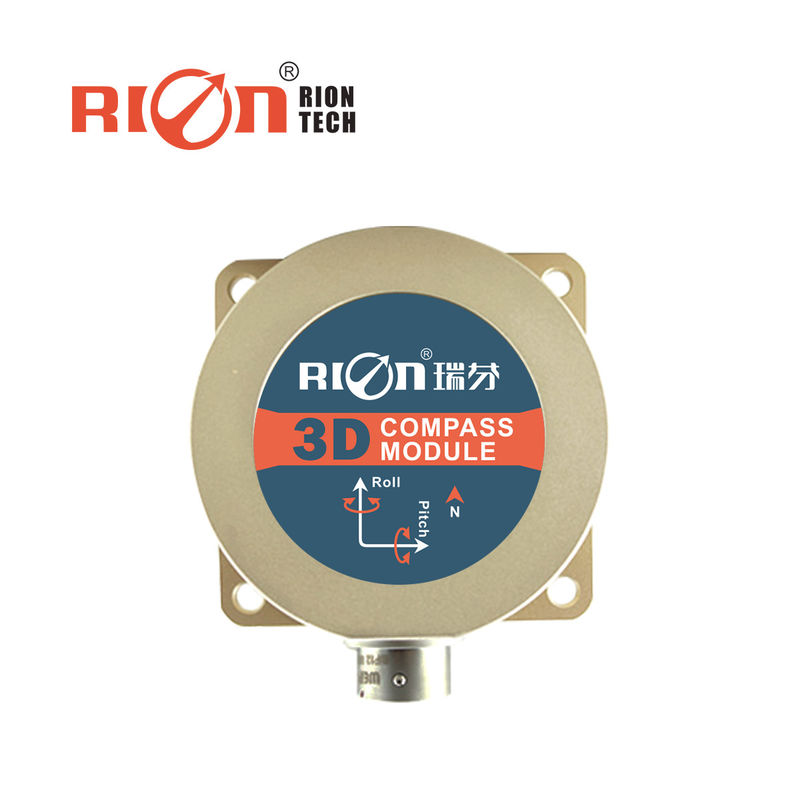

High Accuracy 3D Compass Inclinometer For Antenna Stabilization

High Accuracy 3D Compass Inclinometer for Antenna Stabilization & Vehicle Navigatio

▶ INTRODUCTION

DCM301B/DCM302B is a 3D electronic compass with high precision using two-dimensional plane calibration algorithm. The calibration does not require a three-dimensional attitude tilt, and only needs to rotate the plane in place to complete the calibration process. Using hard magnetic and soft magnetic calibration algorithms, the compass can achieve ideal measurement results through three-dimensional calibration in an environment with magnetic interference. This compass integrates three-axis magnetic sensing technology, which can calculate the heading in real time through the central processing unit, and A three-axis accelerometer is used to compensate for a wide range of tilt angles to ensure that the compass can provide accurate heading data even at tilt angles of up to ±85°. The electronic compass integrates high-precision MCU control, with diversified output modes. The standard interfaces include RS232/RS485/TTL and other interfaces, and other communication interfaces can be customized.

DCM302B is small, low in power consumption, and can be used in many fields such as antenna stability, vehicles, and system integration. Its high shock resistance and high reliability also enable the compass to work normally in extremely harsh environments, and it is suitable for high-precision measurement integration control system.

▶ APPLICATION

★ Satellite antenna search satellite

★ Marine navigation surveying and mapping

★ GPS integrated navigation

★ Antenna servo control

★ Infrared imager

★ Laser range finder

★ Map for plotter

★ ROV underwater robot navigation

★ Oceanography measurement instruments

▶ SPECIFICATION

DCM301B / DCM302B		PARAMETER
Compass heading	The best heading accuracy	0.5°
	Resolution	0.1°
Compass tilt parameter	Pitch accuracy	0.1°<15°(Measure range)
		0.2°<30°(Measure range)
		0.3°<60°(Measure range)
		0.3°<85°(Measure range)
	Pitch tilt range	±85°
	Roll accuracy	0.1°<15°(Measure range)
		0.2°<30°(Measure range)
		0.3°<60°(Measure range)
		0.3°<85°(Measure range)
	Roll tilt range	±85°
	Resolution	0.1°
	The best tilt compensation range	<40°
Calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Magnetic field interference calibration method	Plane rotation in 1circle(2D Calibration)
Physical features	Dimension	L60×W59×H29mm
	Weight	PCB:20g,with shell:100g
	RS-232/RS485/TTL interface connector	5PINconnector
Interface features	Start delay	<50MS
	Maximum output rate	20Hz/s
	Communication rate	2400 to 19200baud
	Output format	Binary high performance protocol
Power	Power supply	(Default)DC+5V
		(Customized)DC9～36V
	Current(Maximum)	40mA
	Ideal mode	30mA
	Sleep Mode	TBD
Enviroment	Operating range	-40℃～+85℃
	Storage temperature	-40℃～+85℃
	Resistance shock performance	2500g
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥40000 hours/times
Insulation	≥100M
Anti-shock	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz

HOUSING SIZE
