IP67 Azimuth Compass Magnetic Heading Sensor For Antenna / UAV / Mining

1 Units
IP67 Azimuth Compass Magnetic Heading Sensor For Antenna / UAV / Mining
Features Gallery Product Description Request A Quote
Size: L57 X W49 XH25.50mm
Carrying Mode: Handheld Type
NMEA Inclinometer Heading Range: 360deg
Best Heading Accuracy: 0.3°
Roll Range: +/-180°
Pitch Range: +/-85°
Interface Port: RS232 /RS485/TTL Optional
Working Temperature: -40C ~+85C°
Production: IP67
High Light:

Azimuth Compass Magnetic Heading Sensor


IP67 Magnetic Heading Sensor


Antenna Digital Compass Sensor

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HCM385-485
Payment & Shipping Terms
Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn
Delivery Time: 7 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 1000 pcs per month
Product Description

IP67 Azimuth Magnetic Heading Compass Sensor For Antenna/UAV/Mining



●Satellite Antenna Searching
● Navigation Navigation Mapping
● GPS Integrated Navigation
● Antenna● Servo Control
● Artillery launch system
● Infrared imager
● Laser rangefinder
● Map complementer
● ROV underwater robot navigation
● Oceanographic Tester
● Special occasion robot
● Unmanned aerial vehicle
● Unmanned aircraft

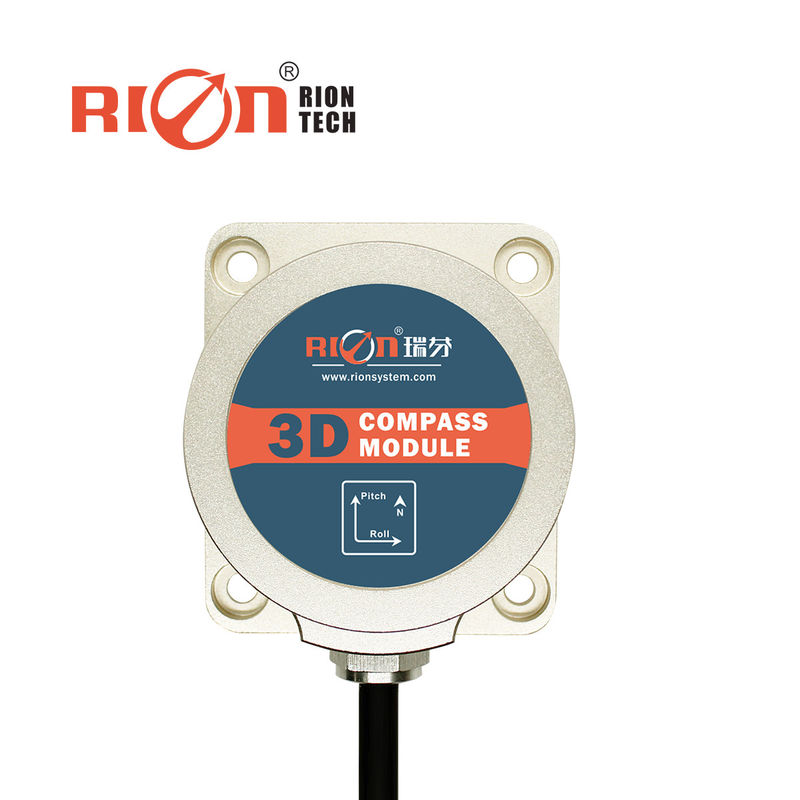

HCM380B / HCM385B is a high-precision 3D compass sensor, and the protection reaches IP67 level. Using
advanced hard and soft iron calibration algorithms, make any tool surface with a roll angle of 360 ° can still provide
high-precision heading information. With the characteristics of small size and low power consumption, it is more suitable for today's miniaturized sensitive measurement systems. The product can be ordered with a complete sealed casing or a circuit board.
HCM380B / HCM385B integrates three-axis magnetic flux gate technology. It uses a central processing unit to calculate heading data in real time, and uses a three-axis accelerometer to compensate for a wide range of tilt angles. It is a high-performance, high-stability military-grade product. HCM380B / HCM385B has been widely used in many fields such as stable antennas, vehicles, and system integration.


IP67 Azimuth Compass Magnetic Heading Sensor For Antenna / UAV / Mining 0HCM380B/HCM385B Parameters
Compass heading Best heading accuracy 0.5° tilt <10°
2.0° tilt<60°
3.0° tilt<80°
Resolution 0.1°
Compass tilt angle Pitch accuracy 0.1°<15°(Measure range )
0.1°<30°(Measure range)
0.1°<60°(Measure range)
0.2°<90°(Measure range)
Pitch measure range ±85°
Roll accuracy 0.1°<15°(Measure range)
0.1°<30°(Measure range)
0.1°<60°(Measure range)
0.2°<180°(Measure range)
Roll measure range ±180°
Resolution 0.1°
Calibration Hard iron calibration Yes
Soft iron calibration Yes
Soft Magnetic field interference calibration method

Horizontal rotation 360 °;

vertical rotation (optional)

physical characteristics Dimension L57×W49×H25.5mm
Weight 130g(without cable)
RS232/RS485/TTL interface Direct leading cable
Interface characteristics Start delay <50ms
Max output 20Hz/s
Communication rate 2400 ~115200baud
Output format Binary high performance protocol
Power supply Power voltage (default)DC+5V
Current (max) 30mA
Idea mode 26mA
Sleep mode TBD
Environment Working temperature -40℃~+85℃
Storage temperature -40℃~+85℃
Anti vibration performance 100g
  Protective performance IP67
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥40000 hours/time
Insulation resistance ≥100 Mega ohm
Impact resistance 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti vibration 10grms,10~1000Hz
