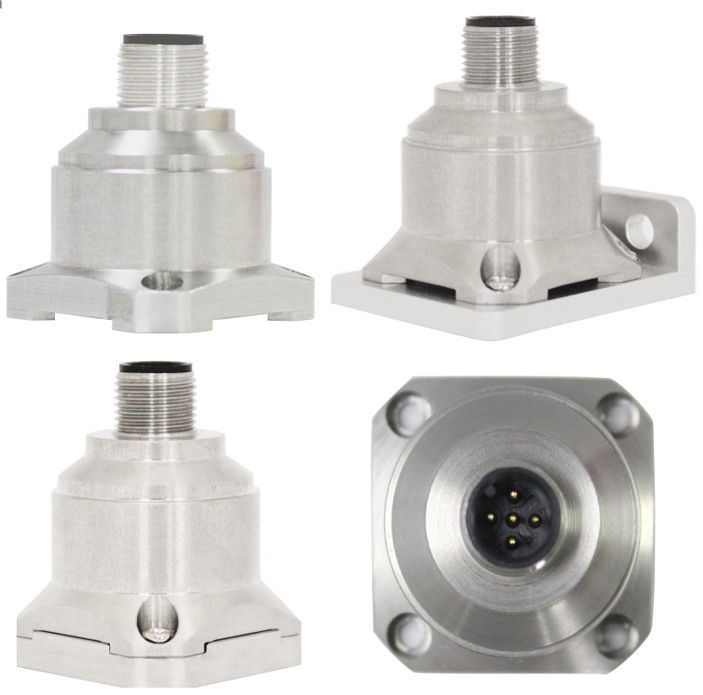

AKG392 Vibration Sensor Analog Digital Output For Bridge

Name: AKG392 Vibration Sensor Analog Digital Output For Bridge
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKG394
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKG394

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,PAYPAL

Supply Ability: 3000 PCS/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Analog Digital Output Vibration Sensor, AKG392 Vibration Sensor For Bridge


Name:	Vibratory Sensor	Output:	RS485
Power On/off Repeatability:	<2mg	Non-linearity:	<0.5% FS(max)
Bandwidth (3DB):	500Hz	Resonance Frequency:	5.5kHz

Name:	Vibratory Sensor
Output:	RS485
Power On/off Repeatability:	<2mg
Non-linearity:	<0.5% FS(max)
Bandwidth (3DB):	500Hz
Resonance Frequency:	5.5kHz

Description

AKG392 Vibration Sensor Analog Digital Output For Bridge

AKF392 MEMS DIGITAL VIBRATION SENSOR.pdf

▶ APPLICATION

★ Medical equipment

★ Bridge

★ Automobile

★ Road roller

★ Crash records, fatigue monitoring and prediction

★ Wind power generation

★ Large machinery, engines

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

The AKF392B three axis Vibration Sensor is produced using Swiss patented technology. This acceleration series can be applied to various fields such as vibration testing and impact testing.The product adopts digital interface output, RS232/485/TTL optional, different address codes can be set, and multiple sensors can be used in series for long distances, which is convenient for multi-point measurement and data analysis. The AKF392B is a monocrystal line silicon capacitive sensor, consisting of a micromachined silicon chip , a low-power ASIC for signal conditioning , a microprocessor for storing compensation values and a temperature sensor. This product has low power consumption, Complete calibration system, solid structure and stable output.The new electronic configuration provides solid-state power for reset, and providing full protection for over-current.In the full range,Typical values for long-term stability and bias of the scale factor are less than 0.1%. This series of products has the characteristics of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability

Specifications

AKG392	PARAMETERS						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Bias calibration	<1	<1	<1	<1	<1	<1	mg
Measure axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Power on/off repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Bias temperature coefficient	0.15	0.15	0.15	0.75	0.75	0.75	%/℃(typical)
Resolution/threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Non-linearity	<0.5	<0.8	<1	<1	<1	<1	% FS(max)
Bandwidth (3DB)	500	500	500	500	500	500	Hz
Cross axis sensitivity	1	1	1	2	2	2	%
Transverse vibration sensitivity ratio	1	1	2	5	5	5	%
Resonance frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface	RS232/RS485/TTL
Protocol	RION 68 protocol and MODBUS RTU protocol
Reliability	MIL-HDBK-217,Grade 2
Impact resistance	100g@11ms, 3 Axial Direction (Half Sinusoid)
Recovery Time	<1ms(1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration	20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes)
Input(VDD_VSS)	9~36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g
Size	Product size: 34.334.338.5mm Magnetic adsorption base size: 34.2334.236mm L-shaped adapter plate size: 364415mm

▶ CONNECTION

THREAD COLOR FUNCTION COLOR

FUNCTION

BLACK

WHITE

BLUE

BROWN

GND

RS232(RXD)/

RS485(D+)

RS232(TXD)/

RS485(D-)

Vcc 9～36V

Size

AKG392 Vibration Sensor Analog Digital Output For Bridge
