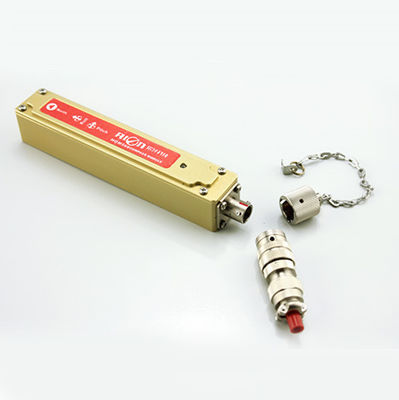

Current Output Measure Heading Sensor Compass For Satellite Antenna Dishes

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HCM508B-232

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $438.00/Units

Packaging Details: 1pcs compass sensor in each box with safe sponge inside , 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 30000 Unit/Units per Month compass sensor are avaliable

Get Best Price
Contact Now
Specifications
Highlight:

Satellite Heading Sensor Compass

,

Antenna Dishes Heading Sensor Compass

,

Satellite Dishes 3D Digital Compass

Usage:
Antenna Dishes Compass
Heading Accuracy:
0.3°
Pitch Accuracy:
0.1°<15°
Inclinometer Compass Heading Range:
360deg
Pitch Range:
+/-180deg
Interface Port:
4~20mA
Dimension:
L125*W22*H24mm
Digital Compass MTBF:
≥40000 Hours/time
Working Temperature:
-40C ~+85C
Production:
IP67
Usage:
Antenna Dishes Compass
Heading Accuracy:
0.3°
Pitch Accuracy:
0.1°<15°
Inclinometer Compass Heading Range:
360deg
Pitch Range:
+/-180deg
Interface Port:
4~20mA
Dimension:
L125*W22*H24mm
Digital Compass MTBF:
≥40000 Hours/time
Working Temperature:
-40C ~+85C
Production:
IP67
Description
Current Output Measure Heading Sensor Compass For Satellite Antenna Dishes

Antenna dishes heading measure sensor, current output heading sensor for satellite dishes


Application

●Satellite antenna search satellite
●Marine navigation surveying and mapping
●GPS integrated navigation
●Antenna servo control
●Gun emission system
●Infrared imager
●Laser range finder
●Map for plotter
●ROV underwater robot navigation
●Oceanography measurement instruments
●Special occasion robot
●Unmanned aircraft


Specifications

HCA508B   PERFORMANCE PARAMETER
Compass heading parameter The best heading accuracy 0.3°
Resolution 0.1°
Compass tilt parameter Pitch accuracy 0.1°<15°(Measure range)
0.1°<30°(Measure range)
0.1°<60°(Measure range)
0.2°<85°(Measure range)
Pitch tilt range ±85°
Roll accuracy 0.1°<15°(Measure range)
0.1°<30°(Measure range)
0.1°<60°(Measure range)
0.2°<180°(Measure range)
Roll tilt range ±180°
Resolution 0.1°
Calibration Hard iron calibration Yes
Soft iron calibration Yes
Magnetic field interference calibration method 24 points(3D calibration)
Physical features Dimension L125*W22*H24mm
Weight 90g
RS232/RS485/TTL interface connector 5PIN connector
nterface features Start delay <50MS
Maximum output rate 20Hz/s
Communication rate 2400 to19200baud
Output format Binary high performance protocol
Analog output 4-20mA FS(0-360deg) Only for heading 4-20mA output
Power Power supply Default DC 12 V; 18~36v optional
Current(Maximum) 40mA
Ideal mode 28mA
Sleep Mode TBD
Enviroment Operating range -40℃~+85℃
Storage temperature -40℃~+85℃
Resistance shock performance 2500g
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥40000 hours/times
Insulation resistance ≥100M
Shock resistance 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz



Current Output Measure Heading Sensor Compass For Satellite Antenna Dishes 0
