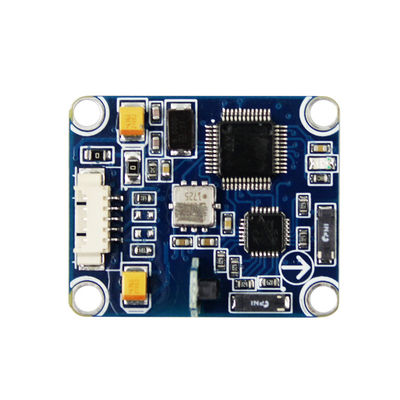

DCM250B Low Cost 3D Electronic Compass Sensor Single Board With Heading Accuracy 0.8deg
General Description
DCM250B is a low-cost 3D electronic compass (Single board), using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM250B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.
DCM250B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.
Features:
Application :
 DCM250B&260B Parameters |
||
| Compass heading parameters | Heading accuracy | 0.8° tilt<10° |
| 1.5° tilt <30° | ||
| 2.0° tilt <40° | ||
| 3.0° tilt <60° | ||
| Resolution | 0.1° | |
| Compass inclination parameter | Pitch accuracy | 0.1°<15°(measure range) |
| 0.2°<30°(measure range) | ||
| 0.3°<60°(measure range) | ||
| Pitch range | ±85° | |
| Rolling accuracy | 0.1°<15°(measure range) | |
| 0.2°<30°(measure range) | ||
| 0.3°<60°(measure range) | ||
| Roll range | ±85° | |
| Resolution | 0.1° | |
| Tilt compensation angle range | <40° | |
| calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Magnetic field interference calibration method | Rotate horizontally one round (2D calibration) | |
| Physical characteristics | Size | L55×W37×H24mm |
| RS232/RS485/TTL | 4 cores 1-meter direct lead | |
| Interface | Start delay | <50mS |
| Output rate | 20Hz/s | |
| Baud rate | 2400 to 19200baud | |
| Output format | Binary high-performance protocol | |
| Power supply | Supply voltage | (default) DC+5V |
| (optional) DC 9～36V | ||
| Current (MAX) | 45mA | |
| Ideal mode | 35mA | |
| Sleep mode | TBD | |
| Environment | Operating range | -40℃～+85℃ |
| Storage temperature | -40℃～+100℃ | |
| Anti-vibration performance | 2500g | |
| EMC | According to EN61000 and GBT17626 | |
| MTBF | ≥40000 hours/time | |
| Insulation resistance | ≥100MΩ | |
| Impact resistance | 100g@11ms, three direction (half sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
| Weight | Single board: 20g shell package: 90g (Without cable) | |
