Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: HCM605
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $547.00/Sets >=1 Sets
Packaging Details: 1pcs /inner box , 100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 3000 Piece/Pieces per Month
Heading Accuracy: |
0.5° Tilt<10° |
Resolution: |
0.1° |
Pitch Accuracy: |
0.1°<15°(measure Range) |
Pitch Range: |
±85° |
Roll Accuracy: |
0.1°<15°(measure Range) |
Roll Range: |
+/-180deg |
Size: |
L110×W19.5×H19.5mm |
Weight: |
80g(exclude Cable) |
Protection: |
IP67 |
Working Temperature: |
-40C ~+85C |
Storage Temperature: |
-40C ~+100C |
Heading Accuracy: |
0.5° Tilt<10° |
Resolution: |
0.1° |
Pitch Accuracy: |
0.1°<15°(measure Range) |
Pitch Range: |
±85° |
Roll Accuracy: |
0.1°<15°(measure Range) |
Roll Range: |
+/-180deg |
Size: |
L110×W19.5×H19.5mm |
Weight: |
80g(exclude Cable) |
Protection: |
IP67 |
Working Temperature: |
-40C ~+85C |
Storage Temperature: |
-40C ~+100C |
High Accuracy Dynamic Compass Gyor Anti-interference 3D Digital Compass
▶ PRODUCT INTRODUCTION
HCM600B/HCM605B is a dynamic anti-interference 3D compass, Internal integrated triaxial accelerometer, triaxial gyro and triaxial magnetic field sensor, long strip shape, 1.6cm wide, IP67 waterproof grade. It is suitable for drilling measurement especially. It adopts advanced hard iron and soft iron calibration algorithm, so that it can provide high-precision heading information when the roll angle is at any point of 360°. It is small and low power consumption, and suitable for today's miniaturized sensitive measurement system.
HCM600B/HCM605B integrates patented three-axis fluxgate technology, calculates the heading data at real-time through the central processor, And use three-axis accelerometer and three-axis gyroscope to make heading compensation for a wide range of tilt angles,and uses the three-axis accelerometer to compensate the heading angle in a wide tilt range. It is military-grade product of high performance and high stability, it is small size and low power consumption and widely used in many fields such as antenna stabilization, vehicle, system integration and so on.
| HCM600B-HCM605B parameters |
||
| heading | Heading accuracy | 0.5° tilt<10° |
| 2.0° tilt>60° | ||
| Resolution | 0.1° | |
| Tilt parameters | Pitch accuracy | 0.1°<15°(measure range) |
| 0.1°<30°(measure range) | ||
| 0.1°<60°(measure range) | ||
| 0.2°<90°(measure range) | ||
| Pitch range | ±85° | |
| Roll accuracy | 0.1°<15°(measure range) | |
| 0.1°<30°(measure range) | ||
| 0.1°<60°(measure range) | ||
| 0.2°<180°(measure range) | ||
| Roll range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Magnetic interference calibration | Rotate 360deg horizontally; vertical rotation(option) | |
| Physical feature | Size | L110×W19.5×H19.5mm |
| Weight | 80g(exclude cable) | |
| RS-232/RS485/TTL | 5PIN quick plug connector | |
| interface | Start delay | <50ms |
| Max output speed | 20Hz/s | |
| Communication speed | 2400 to 115200baud | |
| Output format | Binary High-performance Protocol | |
| Power | Power voltage | (default) DC+5V |
| Current(max) | 30mA | |
| Ideal mode | 26mA | |
| Hibernate mode | TBD | |
| Environment | Operating range | -40℃～+85℃ |
| Storage temperature | -40℃～+100℃ | |
| Vibration resistance | 100g | |
| Protection | IP67 | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥40000 hours/time | |
| Insulation resistance | ≥100mego-ohm | |
| Impact resistant | 100g11ms, triaxial and coaxial (half sine wave) | |
| Anti-Vibration | 10grms, 10~1000Hz | |
▶ FEATURE
●Heading Accuracy: 0.3°～0.5° ●Roll Range:±180°
●Tilt Resolution: 0.1° ●Tilt Accuracy: <0.2°(Full Range)
●Wide Temp.Range: -40℃～+85℃ ●Dimension: L110×W19.5×H19.5mm
●With Hard-Soft Magnetic And Tilt Compensation ●RS232/RS485/TTL
▶ APPLICATION
●Satellite Antenna Search Satellite ●Marine Navigation Surveying And Mapping
●Gps Integrated Navigation ●Antenna Servo Control
●Gun Emission System ●Infrared Imager
●Laser Range Finder ●Map For Plotter
●Rov Underwater Robot Navigation ●Oceanography Measurement Instruments
●Special Occasion Robot ●Unmanned Aircraft

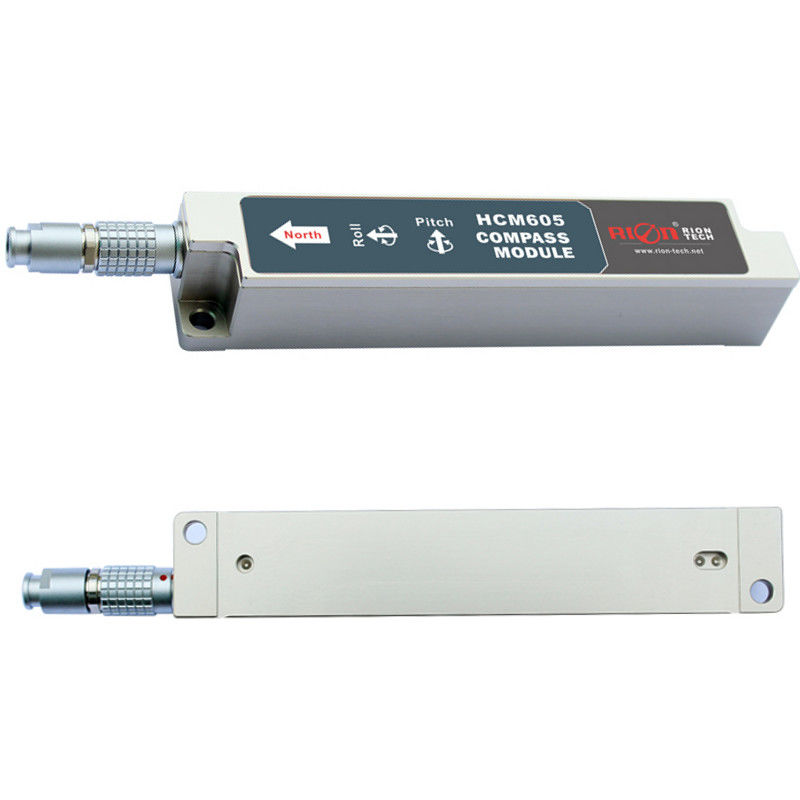

Real product show
