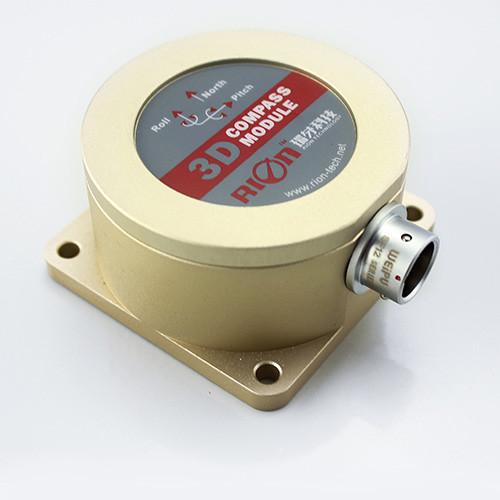

RION Mems Compass High Accuracy Heading Sensor 40g TTL

100 Units
RION Mems Compass High Accuracy Heading Sensor 40g TTL
Features Gallery Product Description Request A Quote
Usage: Position Sensor
Theory: Capacitance Sensor
Output: Digital Sensor
Brand: Compass Sensor
Voltage - Supply: DC5V
Output Type: Digital (RS232, RS485, TTL )
Operating Temperature: -40℃~+85℃
Mounting Type: Horizontal
Resolution (Bits): 0.1°
Package / Case: Aluminum Alloy Oxidation
Measuring Range: Heading 0-360° , Roll /Pitch +/-85°
Interface: Digital
Technology: MEMS
Compass Sensor Heading Range: 360deg
Best Heading Accuracy: 0.3deg
Roll Range: +/-85deg
Pitch Range: +/-85deg
Interface Port: RS232 /RS485/TTL Optional
Digital Compass MTBF: ≥40000 Hours/time
Working Temperature: -40C ~+85C
Storage Temperature: -40C ~+100C
Production: IP67
High Light:

TTL High Accuracy Heading Sensor


40g High Accuracy Heading Sensor


RION mems compass sensor

Basic Infomation
Place of Origin: China
Brand Name: RION
Certification: CE, ISO
Model Number: DCM302B-TTL
Payment & Shipping Terms
Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 3000/month
Product Description

3 Axis Digital Compass High Accuracy Heading Sensor 3D Digital Compass



Products Desc.

DCM302B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process.  Using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM302B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.  DCM302B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.

Main Feature
●Heading accuracy:0.5°~0.8°
●Tilt angle measuring range :±85°      ●Tilt angle resolution: 0.1°
●Tilt angle accuracy: 0.1° ●Wide temperature :  -40℃~+85℃
●Size:  L60×W59×H33mm ●With hard magnetic ,soft magnetic and angle compensation
●DC 5V power supply   ●Standard RS232/RS485/TTL output interface
● IP 67 protection class

●Satellite antenna search satellite
●Marine navigation surveying and mapping ●GPS integrated navigation
●Antenna servo control ●Gun emission system
●Infrared imager ●Laser range finder
●Map for plotter ●ROV underwater robot navigation
●Oceanography measurement instruments     ●Special occasion robot
 ●Unmanned aircraft


RION Mems Compass High Accuracy Heading Sensor 40g TTL 0
The best heading accuracy
0.5° tilt<10°
1.0° tilt <30°
2.0° tilt<40°
2.5 tilt° <70°
Pitch accuracy
0.1°<15°(Measuring range)
0.2°<30°(Measuring range)
0.3°<60°(Measuring range)
0.3°<85°(Measuring range)
Pitch tilt range
Roll accuracy
0.1°<15°(Measuring range)
0.2°<30°(Measuring range)
0.3°<60°(Measuring range)
0.3°<85°(Measuring range)
Roll tilt range
Compass tilt the best compensation angle range
Hard iron calibration
Soft iron calibration
Magnetic field interference calibration method
Plane rotation in 1circle(2D Calibration)
RS-232/RS485/TTL interface connector
Start delay
Maximum output rate
Communication rate
2400 to 19200baud
Output format
Binary high performance protocol
Power supply
Ideal mode
Sleep Mode
Operating range
Storage temperature
Resistance shock performance
Electromagnetic compatibility
According to EN61000 and GBT17626
≥40000 hours/times
Insulation resistance
Shock resistance
100g@11ms,3Times/Axis(half sinusoid)
40g(not include cable)
RION Mems Compass High Accuracy Heading Sensor 40g TTL 2
RION Mems Compass High Accuracy Heading Sensor 40g TTL 4
RION Mems Compass High Accuracy Heading Sensor 40g TTL 6
RION Mems Compass High Accuracy Heading Sensor 40g TTL 8


RION Mems Compass High Accuracy Heading Sensor 40g TTL 10
