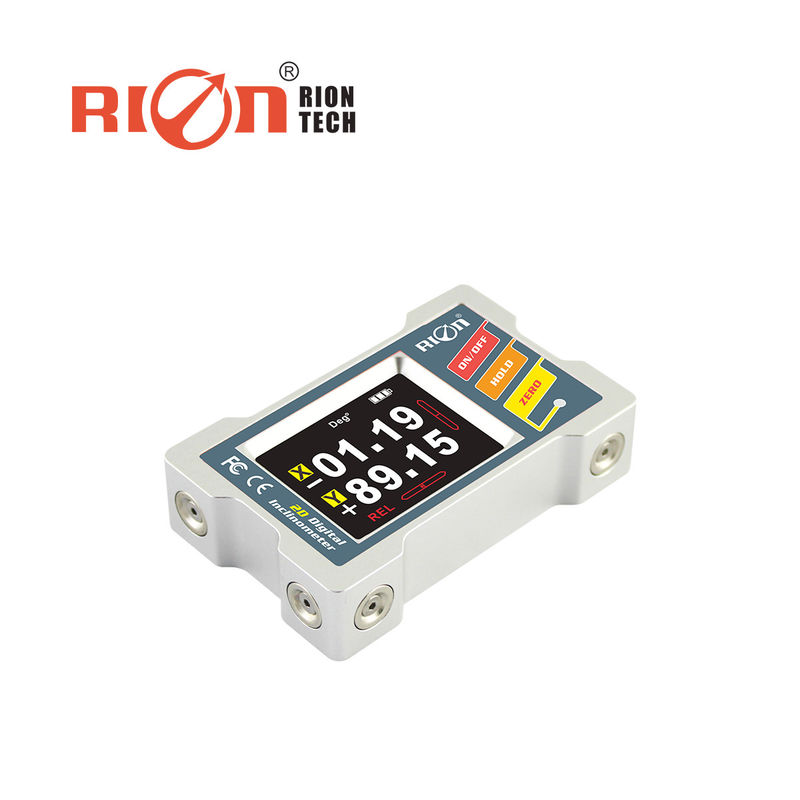

DMI420 2 Axes High Precision Digital Inclinometer 3.7V Full Range

DMI420 Slope Meter High Precision Digital Inclinometer Full Range 2 Axis Digital Inclinometer

 DMI420 Slope Meter High Precision Digital Inclinometer Full Range 2 Axis Digital Inclinometer

▶ PRODUCT DESCRIPTION

DMI410&DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

▶ KEY FEATURES

★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation

★ User can calibrate by himself ★ Built-in recharge industry battaries

★ Night vision fours colors screen ★ IP54 protection class

★ Angle/length dual unit switch ★ 100g High anti-impact

Parameter :

PARAMETERS	DMI410 DMI420
Angle measure range	±180 °	±90 °
Length measure range	0~±999.9mm/m	0~±999.9mm/m
Measure axis	Single axis	Dual axis
Angle measure accuracy	0.05 °(full range)	0.05 °(full range)
Angle measure resolution	0.01°	0.01°
Length measure accuracy	0.9mm/m(full range)	0.17mm/m(full range)
Length measure resolution	0.17mm/m	0.1mm/m
LCD visible area size	L40*W32mm
Working temperature	-10℃～ +70℃
Working humidity	85℃
Power supply	3.7V Charging Lithium battery
Ideal charging time	3h
Battery continuous working time	8h(±0.5)
Data output signal	Standard 5Pin USB connector
Anti-vibration	10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance	10grms,10～100Hz
Weight	125g
Waterproof level	IP54
Material	Metal aluminum
Size	L83*W53*H19.2mm

Product Photos :

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc
