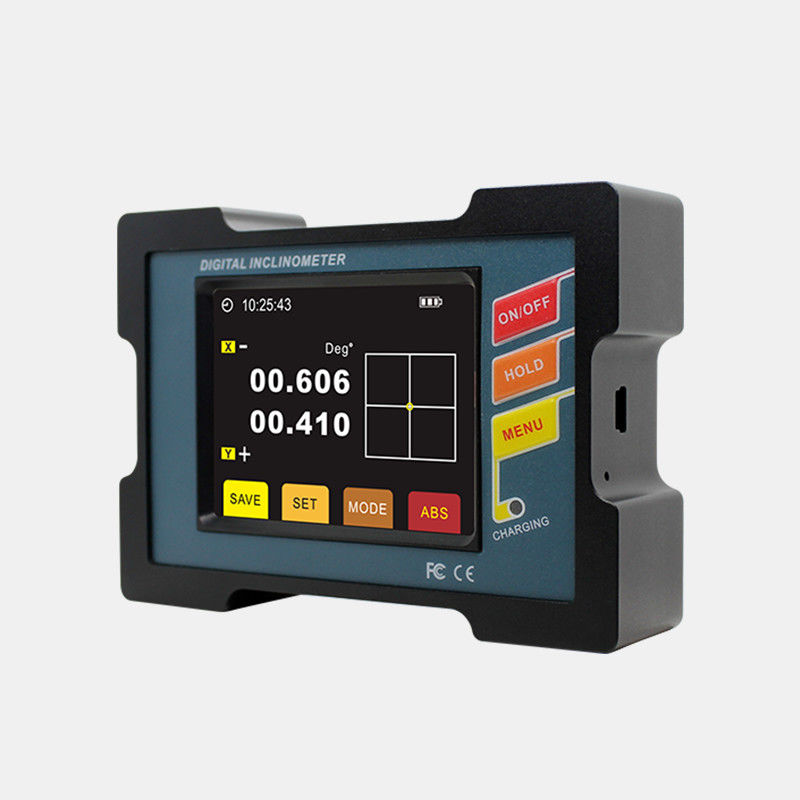

100g High Accuracy 2 Axis Digital Inclinometer DMI820 Dual Units Switch

100g High Accuracy 2 Axis Digital Inclinometer DMI820 Dual Units Switch
Features Gallery Product Description Request A Quote
Theory: MEMS
Usage: Magnetic Sensor
Output: Digital Sensor
Measuring Range: +/-15deg Or +/-30deg Optional
Accuracy: 0.005deg
Repeatability: 0.005deg
Resolution: 0.001deg
User Can Calibrate By Himself: Yes
Night Vision Fours Colors Screen: Yes
°/mm Dual Units Switch Funciton: Yes
Data Hold On Function: Yes
Both Sides And Bottom Can Measure: Yes
Working Temperature: -20 ~ +65C
Port: Shenzhen
High Light:

DMI820 2 Axis Digital Inclinometer


High Accuracy 2 Axis Digital Inclinometer


100g magnetic angle gauge

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DMI820-15
Payment & Shipping Terms
Packaging Details: 1pcs in wooden box with safe sponge inside
Delivery Time: 5-10 work days
Payment Terms: L/C, Paypal
Supply Ability: 30000 Unit/Units per Month
Product Description

DMI820 Dual Units Switch 2 Axis Digital Inclinometer High Accuracy 0.005deg And Big Measuring Range Inclinomerer



DMI810&DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !


★ Best accuracy:<0.005° ★ Repeatability:0.003°

★ Angle resolution:0.001° ★ Maximum measure range:±30°

★ User can set the alarm value by himself ★ Data store function

★ Absolute/Relative measurement can switch ★ Both sides and bottom can measure

★ Double benchmark strong magnet installation ★ Working Temperature : -10°~ +70℃

★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation

★ User can calibrate ZERO by himself ★ Built-in rechargable industry batteries

★ Night vision fours colors screen ★ IP54 protection class

★ °/mm/m Dual units switch function ★ Filter frequency optional

★ Three kinds of measurement mode selectable (radian, angle, mm)


★ Building construction ★ Automobile four-wheel testing ★ Road slope

★ Machinery installation ★ Piping installation ★ Industrial platform

★ Turntable testing ★ Pan unit angle detection ★ Production jig





100g High Accuracy 2 Axis Digital Inclinometer DMI820 Dual Units Switch 0PARAMETER DMI810 DMI820 UNIT
Angle Measure range ±15 ° ±30 ° ±15 ° ±30 ° °
MM measure range 267 577 267 577 mm/m
Meausre axis Single axis Single axis Single axis Single axis
Highest measurement accuracy (full range) <0.005 <0.01 <0.005 <0.01 °(RMS)
Angle Measure resolution 0.001 0.001 0.001 0.001 °
Repeatability 0.003 0.003 0.003 0.003 °
MM measure accuracy 0.1 0.2 0.1 0.2 mm/m
Three measurement mode selectable

①Angle ②degree, minute, second ③mm/m

three modes can be set

MM measure res 0.02 mm/m
LCD 64 true colors night vision display screen /
LCD visible area size L57.6*W43.2 mm
Working temperature -10°~ +70℃
Working humidity 85 %RH
Power supply 3.7V Charging Lithium battery V
Ideal charging time 5 h
Battery sustainable charging times 11 h
Equipped with PC software VC software /
Data output signal USB1.1 (Virtual Serial Device) /
Connect plug in Standard USB connector, rechargeable /
Shock resistance 10g@11ms,3 Axial Direction (Half Sinusoid) g
Shock impact 10grms,10~100Hz g
Waterproof grade IP54 /
Material Aluminum alloy Anodizing /
Size L107*W75*H27.1 mm
Weight 300 g
