36V Three Axis Vibration Sensor 5kHz Bias Stability M12 Connector

Name: 36V Three Axis Vibration Sensor 5kHz Bias Stability M12 Connector
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKF390B
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKF390B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Three Axis Accelerometer 5kHz, 36V Three Axis Accelerometer, M12 3 axis accelerometer sensor


Usage:	VIBRATION SENSOR	Theory:	Capacitance Sensor
Output:	Analog SENSOR	Vibration Sensor Axis:	X, Y , Z
Output:	0-5V	Power Supply:	DC 9~36V
Anti-impact:	2000G	Weight:	73.5
Working Temperature:	-40°C To +85°C	Store Temperature:	-55°C To +100°C
Excellent Bias Stability:	Yes

Usage:	VIBRATION SENSOR
Theory:	Capacitance Sensor
Output:	Analog SENSOR
Vibration Sensor Axis:	X, Y , Z
Output:	0-5V
Power Supply:	DC 9~36V
Anti-impact:	2000G
Weight:	73.5
Working Temperature:	-40°C To +85°C
Store Temperature:	-55°C To +100°C
Excellent Bias Stability:	Yes

Description

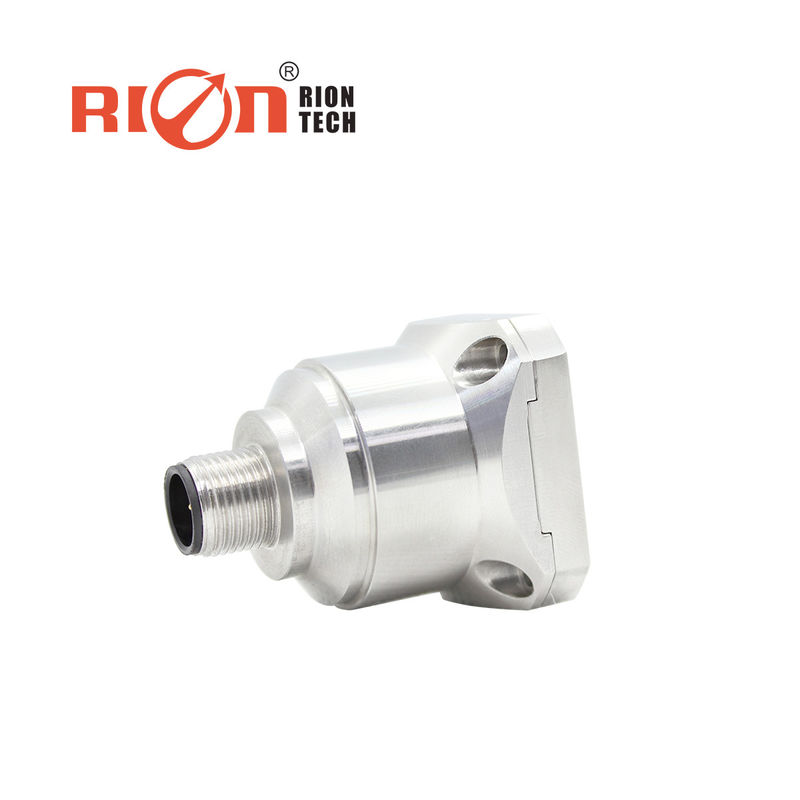

36V Three Axis Vibration Sensor 5kHz Bias Stability M12 Connector

General Description

The AKF390 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

Feature

three axis (X,Y,Z)
output voltage: 0-5V
power supply:9-36V
anti-impact:2000G
working temperature: -40°C ~ +85°C
store temperature: -55°C ~ +100°C
size: L34.4*W34.4*H38mm
weight: 73.5g
excellent bias stability
Good environmental performance (impact, vibration and temperature)

Application

Crash record, fatigue monitoring and prediction
Wind power generation
Traffic system monitoring, roadbed analysis and high-speed railway fault detection
Large machinery, engine
Low frequency vibration and automatic monitoring
Medical equipment
Bridge
Vehicle
Road roller

Technical Data:

Parameters	AKF390B	Unit
Range	±2 , ±4, ±8	g
Bias calibration	<1	mg
Measuring axis	X,Y,Z	axis
Power on/down repeatability	<2	mg (max value)
Bias temperature coefficient [3]	0.05	mg/℃ typical value
Resolution / Threshold (@ 1Hz)	< 1	mg(max)
Nonlinearity	<3	% FS(max)
Bandwidth [4]	500	Hz
Resonance frequency	5	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz, can be set
Output voltage	0-5V
Magnetic based	optional
Reliability	MIL-HDBK-217,class 2
Anti-impact	100g@11ms,Triaxial and identical (half sine wave)
Restore time	<1ms (1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration	20g rms,20~2000Hz (Random noise, o, p, i acting on each axis for 30 minutes)
Input(VDD_VSS)	9-36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	73.5g
Size	Magnetic adsorption installation size:34.334.343.2mm, Screw positioning installation size:34.334.338.5mm

Electrical connection:

BLACK	WHITE	BLUE	BROWN	GRAY
BLACK	WHITE	BLUE	BROWN	GRAY
GND Power GND	X-axis voltage signal	Y-axis voltage signal	Vcc 9~36V Power supply positive	Z-axis voltage signal
GND Power GND	X-axis voltage signal	Y-axis voltage signal	Vcc 9~36V Power supply positive	Z-axis voltage signal

FAQ

Q1. What is your delivery terms?

A: EXW, FOB, CNF, DAP

Q2. What is your terms of payment?

A: T/T 100% , Paypal,

Q3. How about your delivery time?

A: Generally, it will take 7 days for production against the payment confirmation

Q4. Can you produce according to customers requirements?

A: Yes, we could provide customized solution.

Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?

A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
