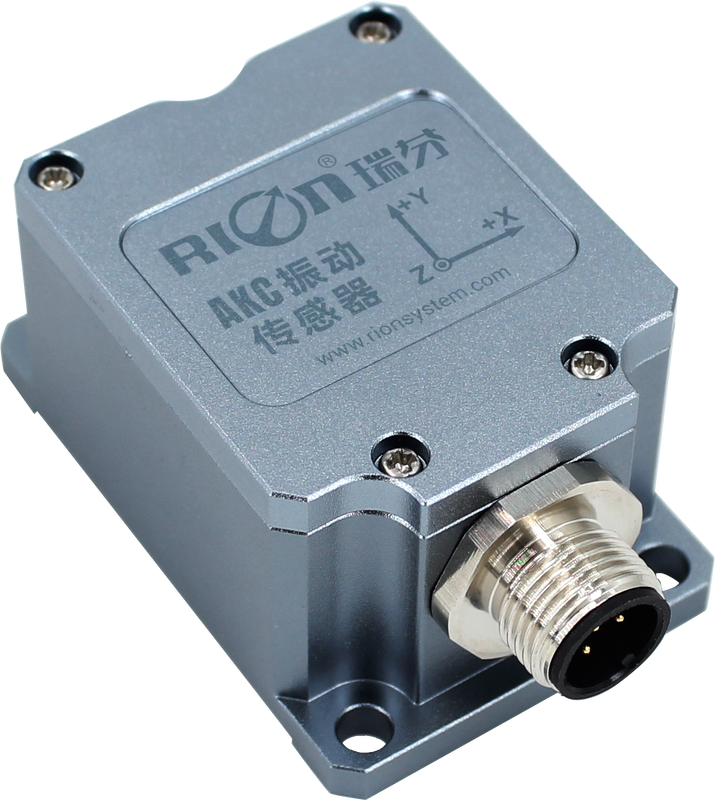

AKC378 3-Axis Industrial Vibration Sensor for Structural Health Monitoring

Name: AKC378 3-Axis Industrial Vibration Sensor for Structural Health Monitoring
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKC378
Price: 99 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO,ROHS

Model Number: AKC378

Document: AKC378 MEMS current-type vi...or.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $99pcs/Pieces

Packaging Details: packing carton

Delivery Time: 5~8 work days

Payment Terms: T/T

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      3-axis industrial vibration sensor, vibration sensor for structural health, industrial vibration detection sensor


Measuring Axial:	X,Y,Z	Wide Operating Temperature Range:	-40 To +85℃
Power Supply Voltage:	9-36V DC	Measurement Range:	±2g To ±16g
Protection Rating:	IP67	Resolution:	<1mg

Measuring Axial:	X,Y,Z
Wide Operating Temperature Range:	-40 To +85℃
Power Supply Voltage:	9-36V DC
Measurement Range:	±2g To ±16g
Protection Rating:	IP67
Resolution:	<1mg

Description

AKC378 3-Axis Industrial Vibration Sensor for Structural Health Monitoring

AKC378 MEMS current-type vibration sensor.pdf

APPLICATION SCOPE

Bridge impact monitoring
Machine control
Low-frequency vibration monitoring
Structural Health Monitoring

KEY FEATURES

Three-axis MEMS vibration sensor
output :4-20mA
Wide operating temperature range: -40 to +85℃
Measurement range: ±2g to ±16g
Self-test function
protection rating:IP67

SPECIFICATIONS

AKC378	PARAMETER
Measurement Range	±2g~±16g
Measuring Axial	X,Y,Z
resolution	<1mg
Zero-point acceleration	12mA (Output current)
Full-range output	4-20mA (Output current)
linearity	1%
Power-on/power-off repeatability	<2mg
Response frequency	0 - 200Hz Integrated low-pass filter
bandwidth	200Hz @ 3Db
Impact	>100g@11ms (half sine wave)
Shock recovery time	<1millisecond
Operating temperature range	-40~+85℃
Storage temperature range	-40~+85℃
Power supply voltage	9-36V DC
Maximum power consumption	65mA @12V DC
Noise density	<25µg/√ Hz @ ±2g	<60µg/√ Hz @ ±16g
Maximum calibration uncertainty	<1mg
Electrical protection	EMC and RFI shield
reliability	MIL-HDBK-217 Level 2
Self-check	±1g @ 10Hz ST When the line is grounded
Protection level	IP67
Product Dimensions	L55W37H29mm
Product weight	≤100g(Cables not included)

AKC378 3-Axis Industrial Vibration Sensor for Structural Health Monitoring

FAQ

Q1: What is the AKC378 vibration sensor?

The AKC378 is a three-axis MEMS vibration sensor with a 4-20mA analog current output. It is designed for industrial vibration monitoring, structural health monitoring, machine control, and low-frequency vibration measurement.

Q2: What is the output signal of the AKC378 vibration sensor?

The AKC378 provides a DC-coupled 4-20mA analog current output, making it suitable for integration with industrial PLCs, monitoring systems, and compatible data acquisition equipment.

Q3: What is the measurement range of the AKC378?

The AKC378 offers selectable measurement ranges from ±2g to ±16g, allowing users to select a suitable range according to their vibration monitoring requirements.

Q4: What is the frequency response of the AKC378?

The AKC378 has a frequency response of 0Hz to 200Hz, making it suitable for DC acceleration measurement and low-frequency vibration monitoring applications.

Q5: Is the AKC378 suitable for outdoor and harsh industrial environments?

Yes. The AKC378 features an IP67 protection rating, electromagnetic interference shielding, and an operating temperature range of -40°C to +85°C, making it suitable for many demanding industrial environments.
