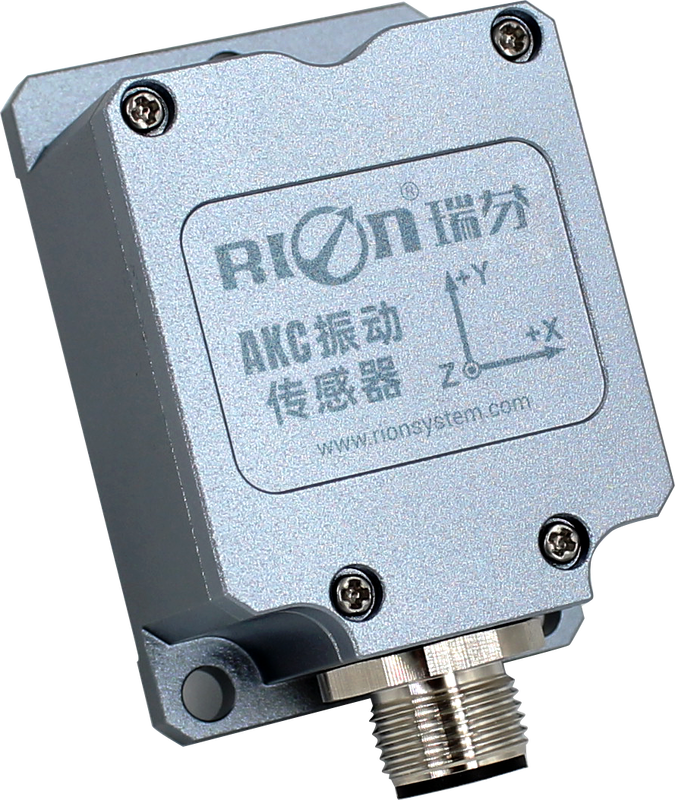

AKC370 Low-Frequency Vibration Sensor for Structural and Bridge Monitoring

Name: AKC370 Low-Frequency Vibration Sensor for Structural and Bridge Monitoring
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKC370
Price: 99 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO,ROHS

Model Number: AKC370

Document: AKC370 MEMS voltage-type vi...or.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $99pcs/Pieces

Packaging Details: packing carton

Delivery Time: 5~8 work days

Payment Terms: T/T

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      low-frequency vibration sensor for bridges, structural monitoring vibration sensor, AKC370 bridge vibration detector


Resolution:	<1mg	Protection Class:	IP67
Output:	0.5-4.5V	Measurement Range:	±2g~±16g
Measuring Axis:	X,Y,Z Axis	Product Weight:	≤100g(excluding Cable)

Resolution:	<1mg
Protection Class:	IP67
Output:	0.5-4.5V
Measurement Range:	±2g~±16g
Measuring Axis:	X,Y,Z Axis
Product Weight:	≤100g(excluding Cable)

Description

AKC370 Low-Frequency Vibration Sensor for Structural and Bridge Monitoring

AKC370 MEMS voltage-type vibration sensor.pdf

● APPLICATION SCOPE

Bridge impact monitoring
Structural monitoring
Low-frequency vibration monitoring

● KEY FEATURES

Triaxial MEMS Vibration sensor
0.5-4.5V output
Measurement range ±2g~±16g
Self-test function
Wide operating temperature range -40~+85℃
IP67 protection rating

● SPECIFICATIONS

AKC370	Parameters
Measurement Range	±2g~±16g
Measuring Axis	X,Y,Z Axis
Resolution	<1mg
Zero-Point Acceleration	2.5V (Voltage Output)
Full-Range Output	0.5-4.5V (Voltage Output)
Linearity	1%
Power-On/Power-Off Repeatability	<2mg
Response Frequency	0 - 200Hz Integrated low-pass filter
Bandwidth	200Hz @ 3Db
Shock	>100g@11ms (half sine wave)
Shock Recovery Time	<1 ms
Operating Temperature Range	-40~+85℃
Storage Temperature Range	-40~+85℃
Supply Voltage	9-36V DC
Maximum Power Consumption	35-38mA @12V DC
Noise Density	<25µg/√ Hz @ ±2g	<60µg/√ Hz @ ±16g
Maximum Calibration Uncertainty	<1mg
Electrical Protection	EMC and RFI shielding
Reliability	MIL-HDBK-217 Level 2
Self-Test	±1g @ 10Hz ST line grounding
Protection Class	IP67
Product Dimensions	L55W37H29mm
Product Weight	≤100g(excluding cable)

FAQ:

Q1: What is the operating frequency range of the AKC370?

The AKC370 supports DC-coupled measurement over an operating frequency band of 0–200Hz, making it suitable for low-frequency vibration monitoring and acceleration measurement within this bandwidth.

Q2: Can the AKC370 be used for bridge vibration monitoring?

Yes. Its triaxial measurement capability can support bridge impact monitoring and structural vibration data collection when integrated with a compatible monitoring system.

Q3: Is the AKC370 suitable for outdoor industrial applications?

The AKC370 has an IP67 protection rating and operates from -40°C to +85°C, making it suitable for many demanding outdoor and industrial environments when properly installed.

Q4: Does the AKC370 have a self-test function?

Yes. The built-in self-test function helps monitor sensor status. System-level diagnostics and fault handling depend on the connected equipment and implementation.

Q5: What applications is the AKC370 designed for?

Typical applications include bridge impact monitoring, machine control, structural monitoring, and low-frequency vibration measurement.
