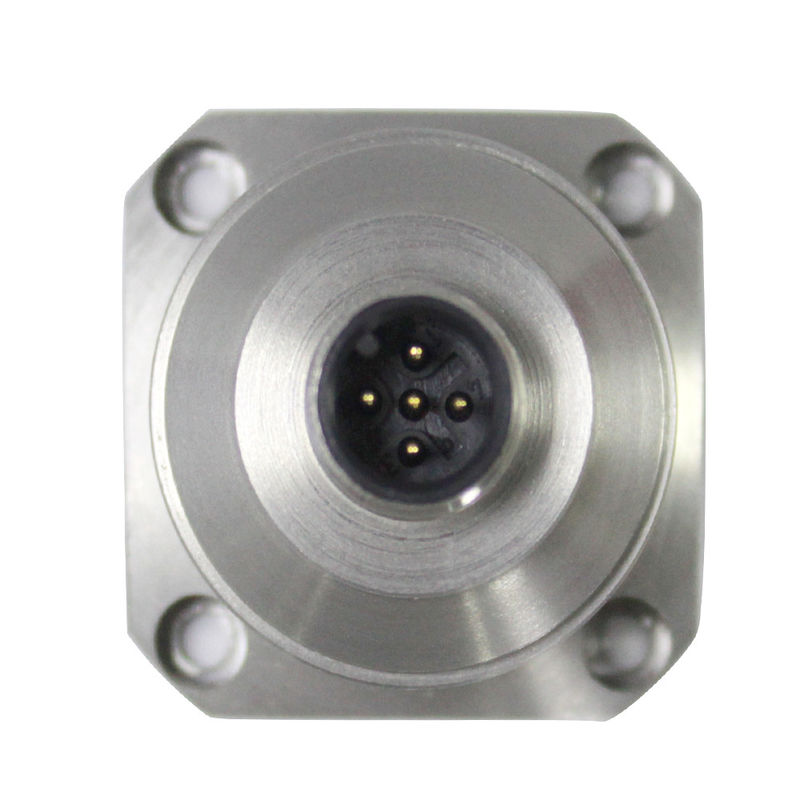

AKF390B 5V Output MEMS Based Vibration Sensor

Name: AKF390B 5V Output MEMS Based Vibration Sensor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKF390B
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKF390B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 DAYS FOR SAMPLE

Payment Terms: T/T,PAYPAL

Supply Ability: 3000/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      5V MEMS Based Accelerometer, triaxial MEMS Based Accelerometer, AKF390B 3 axis vibration sensor


Vibration Sensor Axis:	X, Y , Z	Output:	0-5V
Power Supply:	DC 9~36V	Anti-impact:	2000G
Weight:	73.5	Working Temperature:	-40°C To +85°C
Store Temperature:	-55°C To +100°C	Excellent Bias Stability:	Yes
Usage:	VIBRATION SENSOR	Theory:	Capacitance Sensor

Vibration Sensor Axis:	X, Y , Z
Output:	0-5V
Power Supply:	DC 9~36V
Anti-impact:	2000G
Weight:	73.5
Working Temperature:	-40°C To +85°C
Store Temperature:	-55°C To +100°C
Excellent Bias Stability:	Yes
Usage:	VIBRATION SENSOR
Theory:	Capacitance Sensor

Description

AKF390B 5V Output MEMS Based Vibration Sensor

AKF390 MEMS VOLTAGE VIBRATION SENSOR.pdf

General Description

The AKF390 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

Feature

three axis (X,Y,Z)
output voltage: 0-5V
power supply:9-36V
anti-impact:2000G
working temperature: -40°C ~ +85°C
store temperature: -55°C ~ +100°C
size: L34.4×W34.4×H38mm
excellent bias stability

Application

Crash record, fatigue monitoring and prediction
Wind power generation
Traffic system monitoring, roadbed analysis and high-speed railway fault detection
Large machinery, engine
Low frequency vibration and automatic monitoring
Bridge

Technical Data:

Parameters	AKF390B	Unit
Range	±2 , ±4, ±8	g
Bias calibration	<1	mg
Measuring axis	X,Y,Z	axis
Power on/down repeatability	<2	mg (max value)
Bias temperature coefficient [3]	0.05	mg/℃ typical value
Resolution / Threshold (@ 1Hz)	< 1	mg(max)
Nonlinearity	<3	% FS(max)
Bandwidth [4]	500	Hz
Resonance frequency	5	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz, can be set
Output voltage	0-5V
Magnetic based	optional
Reliability	MIL-HDBK-217,class 2
Anti-impact	100g@11ms,Triaxial and identical (half sine wave)
Restore time	<1ms (1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration	20g rms,20~2000Hz (Random noise, o, p, i acting on each axis for 30 minutes)
Input(VDD_VSS)	9-36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	73.5g
Size	Magnetic adsorption installation size:34.334.343.2mm, Screw positioning installation size:34.334.338.5mm

Electrical connection:

Color Function	BLACK	WHITE	BLUE	BROWN	GRAY

	GND Power GND	X-axis voltage signal	Y-axis voltage signal	Vcc 9~36V Power supply positive	Z-axis voltage signal

FAQ

Q1. What is your delivery terms?

A: EXW, FOB, CNF, DAP

Q2. What is your terms of payment?

A: T/T 100% , Paypal,

Q3. How about your delivery time?

A: Generally, it will take 7 days for production against the payment confirmation

Q4. Can you produce according to customers requirements?

A: Yes, we could provide customized solution.

Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?

A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
