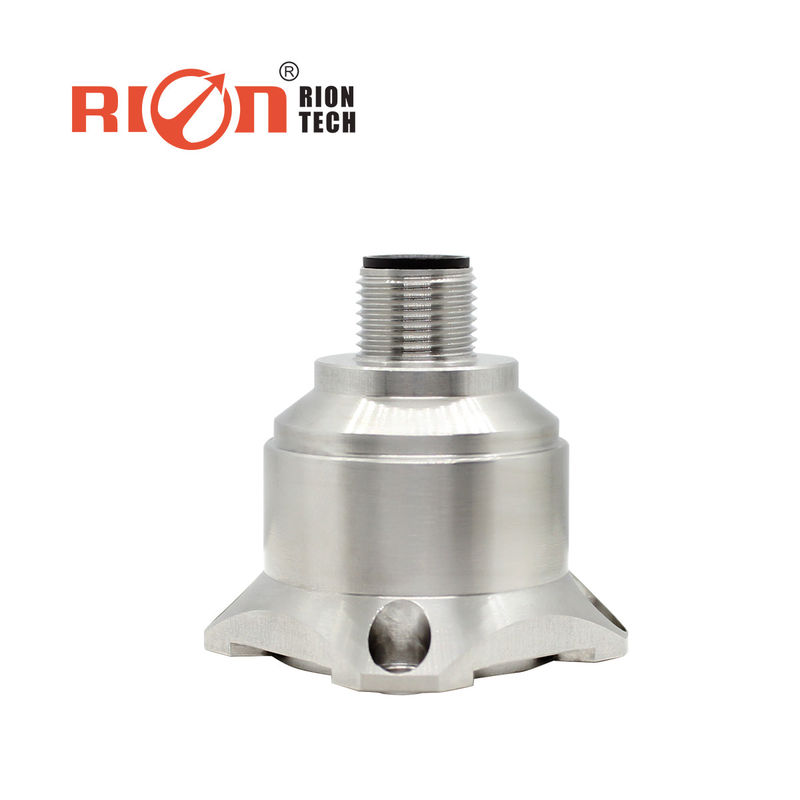

AKG394 Vibration Amplitude Sensor impulse test Three axes (X, Y, Z) accelerometer
| AKG392 | PARAMETERS | UNIT | |||||
| Range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
| Bias calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
| Measure axis | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | axis |
| Power on/off repeatability | <2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
| Bias temperature coefficient | 0.15 | 0.15 | 0.15 | 0.75 | 0.75 | 0.75 | %/℃(typical) |
| Resolution/threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
| Non-linearity | <0.5 | <0.8 | <1 | <1 | <1 | <1 | % FS(max) |
| Bandwidth (3DB) | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
| Cross axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
| Transverse vibration sensitivity ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
| Resonance frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
| Output rate | 5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz | ||||||
| Output Interface | RS232/RS485/TTL | ||||||
| Protocol | RION 68 protocol and MODBUS RTU protocol | ||||||
| Reliability | MIL-HDBK-217,Grade 2 | ||||||
| Impact resistance | 100g@11ms, 3 Axial Direction (Half Sinusoid) | ||||||
| Recovery Time | <1ms(1000g, 1/2 sin 1ms, Impact on the i-axis) | ||||||
| Vibration | 20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes) | ||||||
| Input(VDD_VSS) | 9~36 VDC | ||||||
| Operating current consumption | <60mA @ 12 VDC | ||||||
| Connector | Industry standard M12 connector | ||||||
| Weight |
Product net weight: 82g, |
||||||
| Size |
Product size: 34.3*34.3*38.5mm |
||||||
▶ MAIN FEATURE
★ Three axes (X, Y, Z)
★ Output signal: RS232; RS485; TTL
★ Power supply voltage: 9-36V
★ Impact resistance: 2000G
★ Working temperature: -40°C ~ +85°C
★ Storage temperature: -40°C ~ +85°C
★ Size: L34.3×W34.3×H38.5mm
★ Excellent deviation stability, good environmental performance (shock, vibration and temperature)
▶ APPLICATION
★ Medical equipment
★ Bridge
★ Automobile
★ Road roller
★ Wind power generation
★ Large machinery, engines
★ Low-frequency vibration and automatic monitoring
★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection
RION 68 protocol and MODBUS protocol mutual switching method:
Open the serial port debugging assistant, select the baud rate 115200, no parity, stop bit 1, the connection port number, make the host computer send hexadecimal 0xAA regularly for every 10ms. Power on the product and reply "RION" or "MRTU" to indicate that the change to the corresponding protocol is successful. After the switch is successful, the parameters are all the above default parameters.
