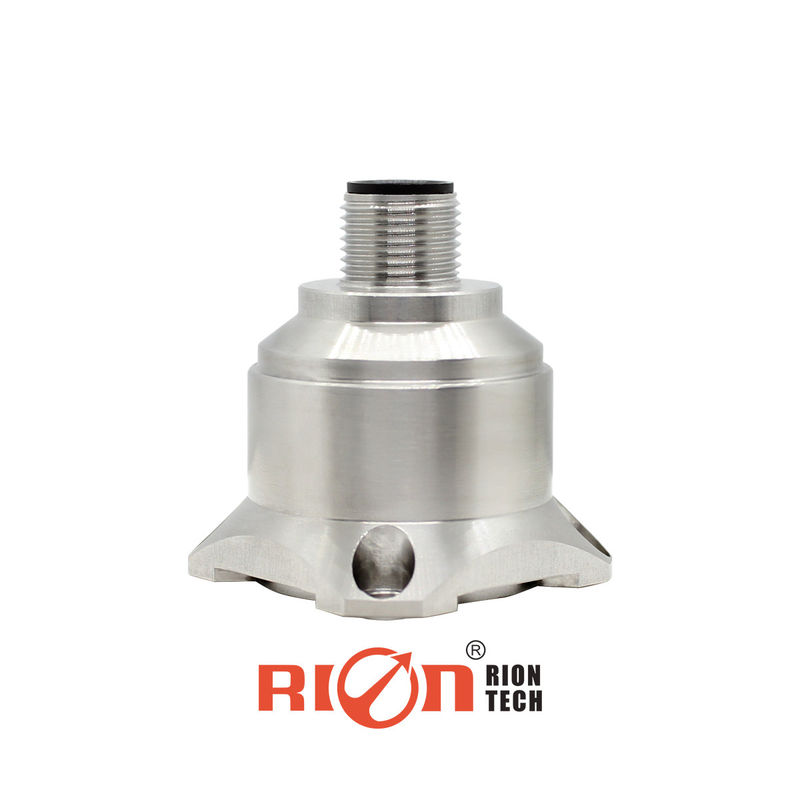

AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring

Name: AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKG392-485
Price: 260.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKG392-485

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $260.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,PAYPAL

Supply Ability: 3000 PCS/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      MEMS Digital Accelerometer, AKF392 MEMS Digital Accelerometer, Bridge Monitoring Vibration Detection Sensor


Name:	Roller Vibration Measure	Protocol:	RION 68 Protocol And MODBUS RTU Protocol
Power On/off Repeatability:	<2mg	Input（VDD_VSS）:	9~36 VDC
Output Interface:	RS232/RS485/TTL	Material:	Stainless Steel

Name:	Roller Vibration Measure
Protocol:	RION 68 Protocol And MODBUS RTU Protocol
Power On/off Repeatability:	<2mg
Input（VDD_VSS）:	9~36 VDC
Output Interface:	RS232/RS485/TTL
Material:	Stainless Steel

Description

AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring

RION AKG392 MEMS Digital Accelerometer Three axis Vibration Sensor for Bridge Monitoring

▶ MAIN FEATURE

★ Three axes (X, Y, Z)

★ Output signal: RS232; RS485; TTL

★ Power supply voltage: 9~36V

★ Size: L34.3×W34.3×H38.5mm

★ Working temperature: -40°C ~ +85°C

★ Storage temperature: -40°C ~ +85°C

★Excellent deviation stability, good environmental performance (shock, vibration and temperature)

▶ APPLICATION

★ Medical equipment

★ Bridge

★ Large machinery, engines

★ Automobile

★ Road roller

★ Crash records, fatigue monitoring and prediction

★ Wind power generation

★ Low-frequency vibration and automatic monitoring

★ Traffic system monitoring, roadbed analysis and high-speed railway

fault detection

Specifications

AKG392	PARAMETERS						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Bias calibration	<1	<1	<1	<1	<1	<1	mg
Measure axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Power on/off repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Bias temperature coefficient	0.15	0.15	0.15	0.75	0.75	0.75	%/℃(typical)
Resolution/threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Non-linearity	<0.5	<0.8	<1	<1	<1	<1	% FS(max)
Bandwidth (3DB)	500	500	500	500	500	500	Hz
Cross axis sensitivity	1	1	1	2	2	2	%
Transverse vibration sensitivity ratio	1	1	2	5	5	5	%
Density of noise	21	21	21	86.6	86.6	86.6	μg/√Hz
Resonance frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface	RS232/RS485/TTL
Protocol	RION 68 protocol and MODBUS RTU protocol
Input(VDD_VSS)	9~36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g
Size	Product size: 34.334.338.5mm Magnetic adsorption base size: 34.2334.236mm L-shaped adapter plate size: 364415mm

▶ COMMUNICATION PROTOCOL

The product includes 68 protocol and MODBUS RTU two protocols. The default configuration parameters of the protocol are as follows:

PROTOCOL	RION 68 PROTOCOL	MODBUS-RTU
Address code	0	1
Broadcast address	255	0
Serial port baud rate	9600	9600
Parity bit	No parity	Even parity
Serial port start bit	1 bit	1 bit
Serial port data length	8 bits	8 bits
Serial port stop bit	1 bit	1 bit
Output mode	Question and answer	Question and answer
Data Format	Data format	Data format
Data check method	Checksum	CRC16

RION 68 protocol and MODBUS protocol mutual switching method:

Open the serial port debugging assistant, select the baud rate 115200, no parity, stop bit 1, the connection port number, make the host computer send hexadecimal 0xAA regularly for every 10ms. Power on the product and reply "RION" or "MRTU" to indicate that the change to the corresponding protocol is successful. After the switch is successful, the parameters are all the above default parameters.

Size

AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring 0

AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring 1
