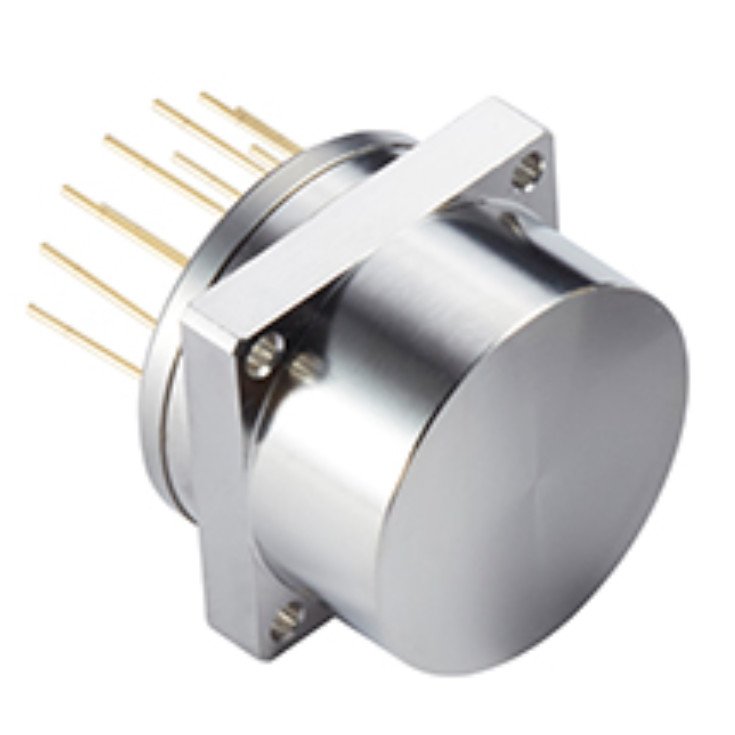

18V 50g Range 1kHz Quartz Flexible Accelerometer High Performance

$1,470.00/Pieces >=1 Pieces
18V 50g Range 1kHz Quartz Flexible Accelerometer High Performance
Features Gallery Product Description Request A Quote
Usage: Position Sensor
Theory: Other
Output: Digital Sensor
Operation Voltage: 12~18v
Working Temp.: -40~120 Celcius Degree
Working Current: <20mA
Weight: <80g
Measurement Range: +-25g
Port: Shenzhen
High Light:

1kHz Quartz Flexible Accelerometer


18V Quartz Flexible Accelerometer


50g range quartz accelerometers

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Model Number: AS1910
Payment & Shipping Terms
Packaging Details: 1pcs/box
Delivery Time: 2 weeks for samples
Payment Terms: T/T
Supply Ability: 200 Piece/Pieces per Month
Product Description

Good Quality Flexible Quartz Accelerometer Competitive Price In China

Product Description





No. Parameter AS1920-01 AS1920-02
1 measuring range ±70g ±70g
2 Threshold value 5μg 5μg
3 Deviation value k0/k1 ≤(±3 mg) ≤(±5 mg)
4 Scale factor k1 1.3±0.2 mA/g 1.3±0.2 mA/g
5 Second-order nonlinear coefficientK2 ≤±20μg /g2 ≤±30μg /g2
6 0g 4 h short-term stability ≤10 μg ≤20 μg
7 1g 4 h short-term stability ≤10 ppm ≤20 ppm
8 Deviation value Comprehensive repeatabilityσk0 (1σ,1 month) ≤10 μg ≤30 μg
9 Scale factor Comprehensive repeatabilityσk1/k1 (1σ,1 month) ≤15ppm ≤30 ppm
10 Nonlinear coefficient Comprehensive repeatabilityσk2/k1(1σ,1 month) ≤±10 μg /g2 ≤±20 μg /g2
11 Deviation valueTemperature Coefficient ≤±20 μg /℃ ≤±30 μg /℃
12 Scale factorTemperature Coefficient ≤±20 ppm /℃ ≤±30ppm /℃
13 noise(Sampling resistance is 840Ω) ≤5mv ≤8.4mv
14 Natural frequency 400~800 Hz 400~800 Hz
15 bandwidth 800~2500 Hz 800~2500 Hz
16 vibration 5g(20-2000Hz) 5g(20-2000Hz)
17 Shock 100g,5ms,1/2sin 100g,5ms,1/2sin
18 Operating temperature measuring range -40-+85℃ -40-+85℃
19 storage temperature measuring range -60-+120℃ -60-+120℃
20 powered ±12~±15V ±12~±15V
21 Current consumption ≤±20mA ≤±20mA
22 Tempe Sensor Yes and No two type Yes and No two type
23 size Ф25.4X30mm Ф25.4X30mm
24 weight ≤80g ≤80g

S1910 is a high precise quartz accelerometer sensor designed based on inertial principle. It convert the input accelerated speed into infinitesimal displacement and balance by feedback force.the force feedback loop make it own features of super high precision, high anti-interference performance, wider measuring range and high overload capacity. It is the indispensable key part in inertial navigation and guiding system.

18V 50g Range 1kHz Quartz Flexible Accelerometer High Performance 1

Main feature

  • military level performance
  • exllent enablement repeatability
  • analog output
  • optional measuring range
  • temperature output(optional)
  • wide measuring range
  • high precision
  • high anti-interference performance
  • small size
  • low power consumption


  • Satellite microgravity measurement system
  • High precision inertial navigation system
  • Rock and soil foundation drilling measurement
  • petroleum drilling
  • Continuous level survey system
  • carrier rocket
  • long-range ballistic missile
  • spacecraft
  • medium-range missile
  • tactical missile
  • military aircraft
  • ships and warships


18V 50g Range 1kHz Quartz Flexible Accelerometer High Performance 2
