Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: AKF390
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $236.00/Pieces
Packaging Details: 1pcs accelerometer in each inner box , 80pcs /ctn
Delivery Time: 1 weeks for samples
Payment Terms: T/T
Supply Ability: 500/month
Usage: |
VIBRATION SENSOR |
Output: |
Voltage |
Range Rs=100: |
±40g |
Threshold (Resolution): |
1mg |
Deviation Temp. Coefficient: |
0.01%/℃ |
Nonlinearity: |
<0.5% FS（max） |
Frequency Response: |
500Hz |
Bandwidth (3DB): |
1000Hz |
Resonance Frequency: |
2.4kHz |
Noise Density: |
21 μg/√Hz |
Usage: |
VIBRATION SENSOR |
Output: |
Voltage |
Range Rs=100: |
±40g |
Threshold (Resolution): |
1mg |
Deviation Temp. Coefficient: |
0.01%/℃ |
Nonlinearity: |
<0.5% FS（max） |
Frequency Response: |
500Hz |
Bandwidth (3DB): |
1000Hz |
Resonance Frequency: |
2.4kHz |
Noise Density: |
21 μg/√Hz |
voltage output 0~5v output accelerometer
PRODUCT INTRODUCTION

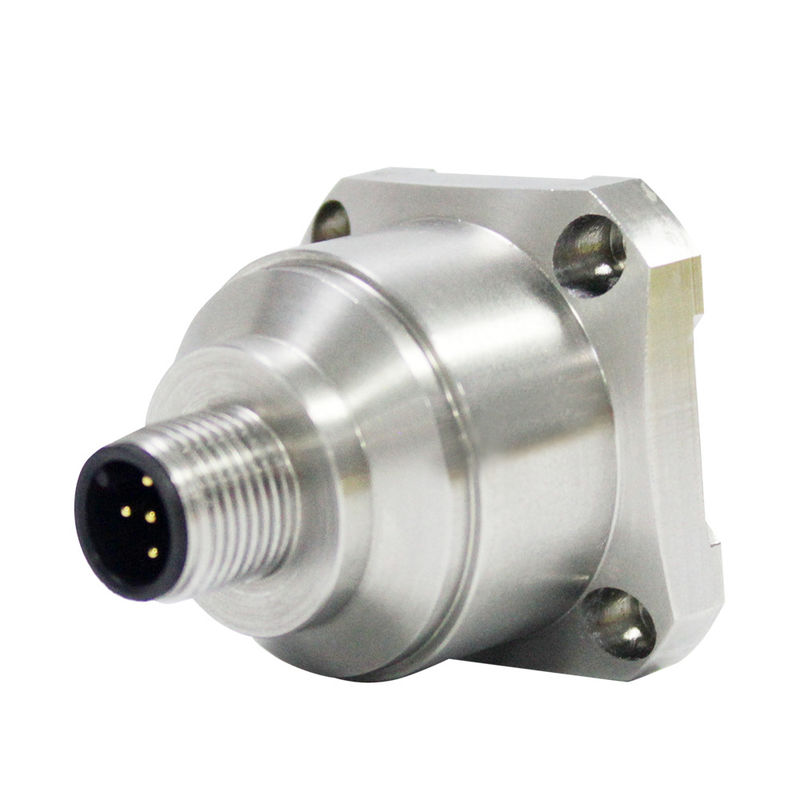

The AKF390 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.
PRODUCT PARAMETERS
| AKF390 |
PARAMETER | UNIT | |||||
| Range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
| Deviation Calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
| Measuring Axial | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | Axis |
| Up/Off Power Repeatability | <2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
| Sensitivity (± 10%) | 1250 | 625 | 312.5 | 250 | 125 | 62.5 | mv/g |
| Deviation temp. coefficient | 0.01 | 0.01 | 0.01 | 0.05 | 0.05 | 0.05 | %/℃ |
| Resolution/Threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
| Nonlinearity | <0.5 | <0.5 | <0.8 | <1 | <1 | <1 | % FS(max) |
| Frequency response | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
| Bandwidth (3DB) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | Hz |
| Cross-axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
| Lateral vibration sensitivity ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
| Resonance frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
| Noise density | 21 | 21 | 21 | 86.6 | 86.6 | 86.6 | μg/√Hz |
| 0g output 2.5V | <0.01 | <0.01 | <0.01 | <0.008 | <0.008 | <0.008 | mV |
| The output voltage | 0~5V | ||||||
| Reliability | MIL-HDBK-217,Grade 2 | ||||||
| Shock Resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | ||||||
| Recovery Time | <1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis) | ||||||
| Vibrate | 20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes ) | ||||||
| Input(Vdd_Vss) | 9-36 VDC | ||||||
| Current Consumption | <60mA @ 12 VDC | ||||||
| Connector | Industrial Standard M12 Connector | ||||||
| Protection grade | IP67 | ||||||
| Weight | 73.5g | ||||||
| Dimension | 34.3*34.3*38.5mm |
||||||
Q: How to choose suitable products before ordering?
A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price.
Q: What's kind of payment methods ?
A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible.
Q: How about lead time for order ?
A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay.
Q: How about quality inspection before shipment ?
A: We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment .
Q: What's the transportation methods ?
A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder .
Q: How about after-sale service ?
A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible.
Q: How about product warranty and repair service?
A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a reasonable fee according to the actual situation.
Q: Are the samples available free of charge?
A: At first time co-operation, we need charge related cost for samples , because our products belong to the military & Industry grade and with high quality , thus the cost is much more expensive than the average consumer goods. If we work closely together with each other more times in future, we will consider applying for free samples according to your specific requirements and sending them to you, thanks for your understanding .
Hope a pleasant cooperation with you !
