Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: AKF398
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $236.00/Pieces >=1 Pieces
Packaging Details: 1pcs/inner box, 100pcs/ctn
Delivery Time: 1 weeks for samples
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Week
Usage: |
Vibration Acceleration Measurement |
Output: |
4~20mA |
Deviation Calibration: |
<1mg |
Sensitivity: |
4mA/g |
Nonlinearity: |
<0.5% FS（max |
Bandwidth (3Db): |
1000Hz |
Usage: |
Vibration Acceleration Measurement |
Output: |
4~20mA |
Deviation Calibration: |
<1mg |
Sensitivity: |
4mA/g |
Nonlinearity: |
<0.5% FS（max |
Bandwidth (3Db): |
1000Hz |

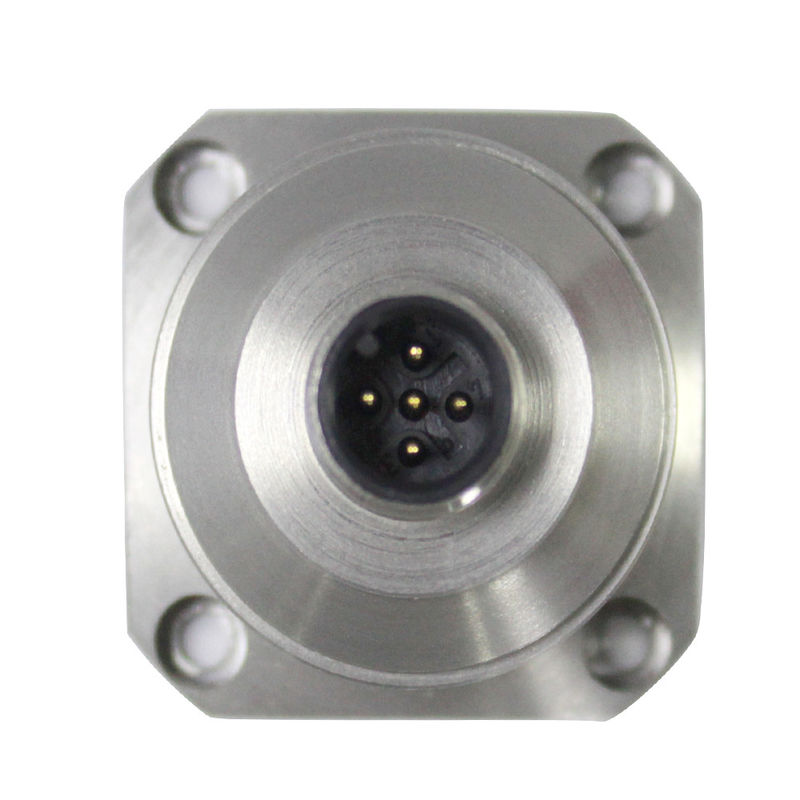

AKF398 Current Output 4 - 20mA 3 Axis Vibration Detection Sensor
▶ PRODUCT FEATURES
★ three axis (X,Y,Z)
★ output voltage: 4-20mA
★ power supply:9-36V
★ excellent bias stability
★ working temperature: -40°C ~ +85°C
★ store temperature: -40°C ~ +85°C
★ size: L34.3×W34.3×H38.5mm
★ weight: 73.5g
★ Good environmental performance (impact, vibration and temperature)
▶ APPLICATION
★ Crash record, fatigue monitoring and prediction
★ Wind power generation
★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection
★ Large machinery, engine
★ Low frequency vibration and automatic monitoring
★ Medical equipment
★ Bridge
★ Vehicle
★ Road roller
▶ PRODUCT INTRODUCTION
The AKF398 triaxial accelerometer is a voltage-output accelerometer independently developed and produced by RION Technology. It is widely used in applications such as vibration testing and impact testing. The product features an analog voltage output, with configurable address codes, allowing for multiple sensors to be connected in series over long distances, making it convenient for multi-point measurements and data analysis.
The AKF398 uses a single crystal silicon capacitive sensor, consisting of a micro-machined silicon chip, a low-power ASIC for signal conditioning, a microprocessor for storing compensation values, and a temperature sensor. This design ensures low power consumption, calibrated performance, robust structure, and stable output. The new electronic configuration provides solid-state power for resets and comprehensive protection against over-voltage conditions.
With its sturdy construction, low power consumption, and excellent deviation stability, the AKF398 ensures reliable product output for a wide range of applications.
▶ SPECIFICATIONS
| AKF398 | PARAMETER | UNIT | |||||
| Range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
| Deviation Calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
| Measuring Axial | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | axis |
| Up/Off Power Repeatability | <2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
| Sensitivity (± 10%) | 4 | 2 | 1 | 0.8 | 0.4 | 0.2 | mA/g |
|
Deviation temp. coefficient |
0.01 | 0.01 | 0.01 | 0.05 | 0.05 | 0.05 | %/℃ |
| Resolution/Threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
| Nonlinearity | <0.5 | <0.5 | <0.8 | <1 | <1 | <1 | % FS(max) |
| Frequency response | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
| Bandwidth (3Db) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | Hz |
| Cross-axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
| Lateral vibration sensitivity ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
| Resonant frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
| noise density | 21 | 21 | 21 | 86.6 | 86.6 | 86.6 | μg/√Hz |
| 0g output 12mA | <0.005 | <0.005 | <0.005 | <0.003 | <0.003 | <0.003 | mA |
| Output current | 4~20mA | ||||||
| Input(VDD_VSS) | 9~36 VDC | ||||||
| Running current consumption | <60mA @ 12 VDC | ||||||
| Connector | Industrial Standard M12 Connector | ||||||
| Protection grade | IP67 | ||||||
| Weight | Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g | ||||||
| Size |
Product size: 34.3*34.3*38.5mm Magnetic adsorption base size: 34.23*34.23*8.1mm L-shaped adapter plate size: 36*44*15mm |
||||||
