Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: SCA110T
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 94 USD/pcs
Packaging Details: carton
Delivery Time: 5-7 days
Payment Terms: T/T,paypal
Supply Ability: 30000 Piece/Pieces per Month
Wide Voltage Input: |
9~36V |
Output Interface: |
0~5V |
Protection Class: |
IP67 |
Resolution: |
0.01~0.05° |
Response Frequency: |
20Hz |
Measure Range: |
±1~±180° Optional |
Size: |
L94×W40×H26mm |
Working Temp.: |
-40 To +85℃ |
Wide Voltage Input: |
9~36V |
Output Interface: |
0~5V |
Protection Class: |
IP67 |
Resolution: |
0.01~0.05° |
Response Frequency: |
20Hz |
Measure Range: |
±1~±180° Optional |
Size: |
L94×W40×H26mm |
Working Temp.: |
-40 To +85℃ |

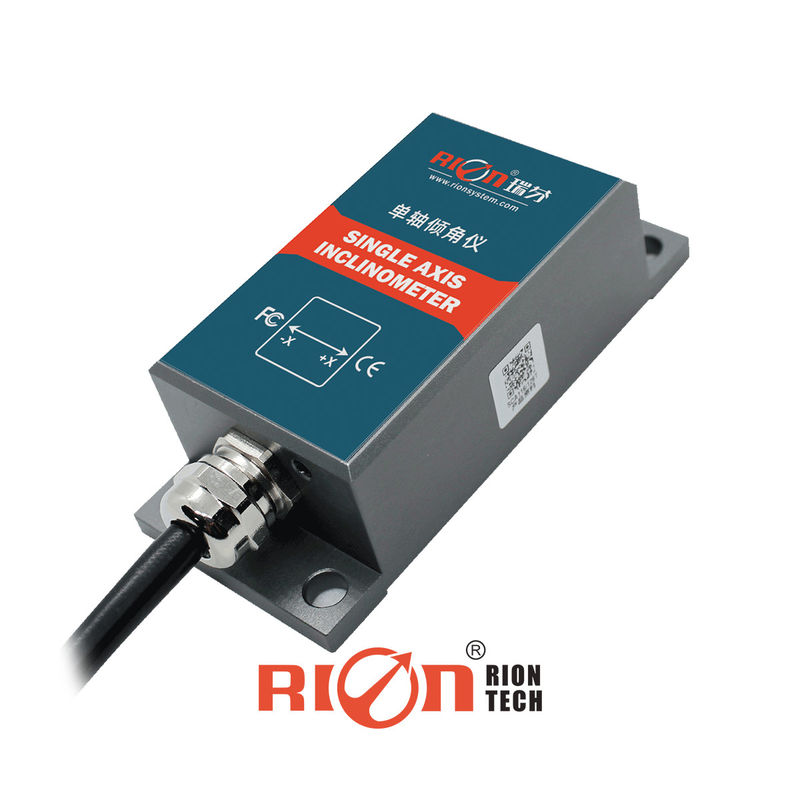

SCA110T MEMS sensor voltage output. high precision inclinometer ,level control
SCA110 SCA120T VOLTAGE TYPE INCLINOMETER.pdf
Features
★ Wide temperature working: -40~+85℃
★ Resolution: 0.01°
★ IP67 protection class
★ Highly anti-vibration performance >2000g
★ Size: L94×W40×H26mm
★ Output interface :0~5V
Application:
★ Leveling of construction vehicles
★ Monitoring of bridges and Dadian
★ Safety protection of high-altitude platforms
★ Medical equipment angle control
★ Equipment level control
★ Shield pipe jacking application
★ Direction measurement based on inclination
This product adopts the principle of non-contact measurement, can output the current attitude inclination in real time, and is easy to install. MEMS sensor production technology, high precision, small size, strong resistance to external electromagnetic interference, strong ability to withstand shock and vibration, is an ideal choice for industrial equipment and platform measurement attitude!
Ordering information:
Technical Data
SCA110/SCA120T | CONDITION PARAMETER | UNIT | |||||
Measure range | ±10 | ±30 | ±60 | ±90 | ±180 | ° | |
Measure axis | X/XY | X/XY | X/XY | X/XY | X | Axis | |
Zero output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | V |
Resolution | 0.01 | 0.01 | 0.02 | 0.03 | 0.05 | ° | |
Measure accuracy | @25℃ | 0.03 | 0.05 | 0.06 | 0.08 | 0.1 | ° |
ZeroTemp.coefficient | -40~85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
Sensitivity temp-coeffi | -40~85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
Power-on start time | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | S | |
Response frequency | 20Hz | ||||||
EMC | According to EN61000和GBT17626c | ||||||
MTBF | ≥98000 hours/times | ||||||
Insulation Resistance | ≥100MΩ | ||||||
Impact resistance | 100g@11ms,3 Axis Direction (Half Sinusoid) | ||||||
Anti-vibration | 10grms,10~1000Hz | ||||||
Protection grade | IP67 | ||||||
Cables | Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2 | ||||||
Weight | ≤220g (including 1 meter cable) |
