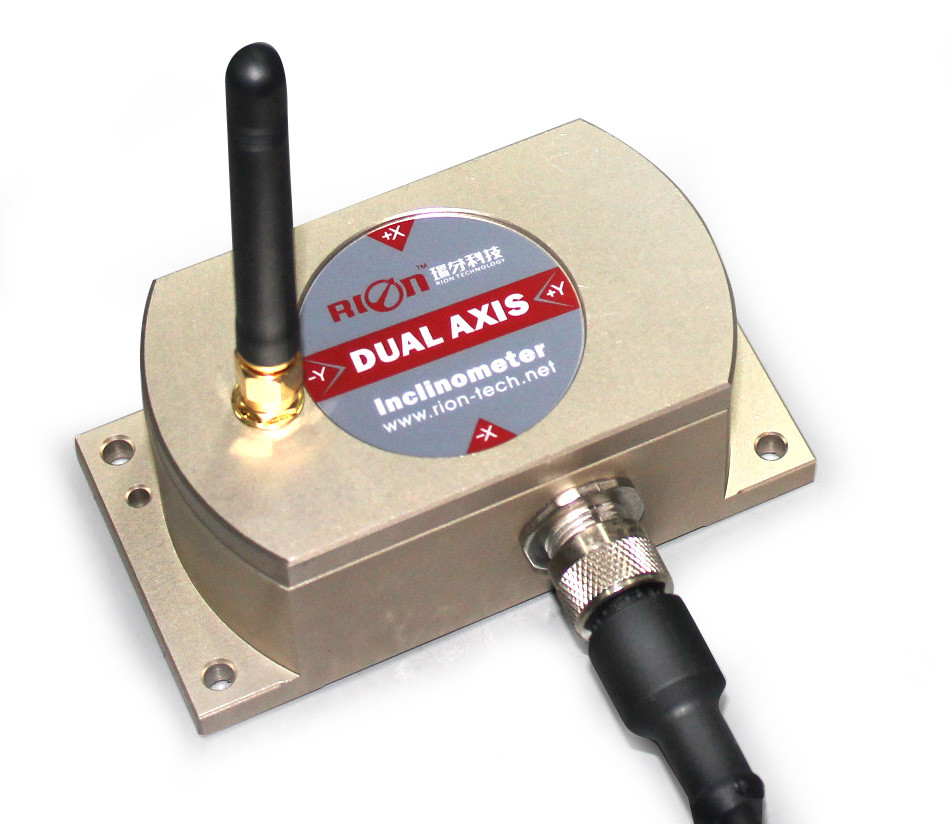

Biaxis Wireless Inclinometer Wifi Tilt Sensor 16bit Differential Converter

$590.00/Pieces >=1 Pieces
Biaxis Wireless Inclinometer Wifi Tilt Sensor 16bit Differential Converter
Features Gallery Product Description Request A Quote
Dual-Axis Inclinometer: Measuring Range :±1~±90° Optional
Wide Voltage Input: 9~36V: Wide Temperature Working: -40~+85°C
Resolution: 0.01°: IP67 Protection Class
200M Wireless Transmission: Small Size : 97*50*48.5mm
High Light:

High Resolution wifi tilt sensor


biaxis wifi tilt sensor


16bit wireless inclinometer sensor

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Model Number: SCA126T-WL
Payment & Shipping Terms
Packaging Details: 1pcs/inner box, 10pcs/ctn
Supply Ability: 30000 Set/Sets per Week
Product Description

High Resolution Biaxis receiver equip Tilt Sensor 16bit Differential Converter Wireless Inclinometer



Item No.:SCA126T-WL

Description:Wireless Type Dual-Axis Inclinometer


Production implementation standard reference

1) Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101)

2)Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification  of  Level

3) Tilt sensor measurement colleges quasi-standard: JJF1119-2004 Electronic Level calibration  Specification

4) Gyro accelerometer test standard: QJ 2318-92 Gyro accelerometer test methods

5)Software development reference standard: GJB 2786A-2009 military software development General requirements

6) Product environmental testing standards: GJB150

7) Electromagnetic anti-interference test standards: GB / T 17626



General Description


SCA126T-WL is a wireless transmission type dual-axis inclinometer launched by RION company to the field of industrial control,Is composed of the measurement transmitter and the receiver two parts, using wireless ISM all band operating frequency, in line with the global ISM band communications standard, no need to apply frequency point. The carrier frequency is within 400-480MHz. Open area in visual communication distance up to 200 meters. GFSK modulation method and adopt efficiency forward error correction channel encoding technology, to improve the ability of the data against burst interference and random interference. Acceleration measurement structure is made of aluminum alloy shell, fully waterproof structure, long-term work in the outdoor monitoring applications.


This product is composed of wireless inclinometer and wireless data receiver two parts, both of two parts along with receiving antenna and the air connector components, through RS232/RS485 interface port the receiver output the acceleration measurement values which received by wireless module, the user simply to provide the power supply and collecting its digital signal then can real-time measure and analyze the remote object accelerometer and vibraton changes


The inclinometer built-in high-precision 16bit A / D differential converter, through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485, RS232, RS422, TTL, are optional.Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 18Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment.






1.Dual-Axis Inclinometer

2.Measuring Range :±1~±90° optional

3.Accuacy: refer to the technical data

4.Wide voltage input: 9~36V

5.Wide temperature working: -40~+85°C

6.Resolution: 0.01°

7.IP67 protection class

8.Highly anti-vibration perfermance >2000g

9.200M wireless transmission

10.Small size : 97×50×48.5mm

11.Output mode RS232/RS485/RS422 (optional)




1.Satellite positioning Search

2.Rail-mobile monitoring mechanical measurement of dip angle

4.oil-well drilling equipment

5.Radar detection of vehicle platform

6.Underground drill posture navigation

7.Gun Barrel angle measurement in early shooting

8.Based on the angle direction measurement

9.Satellite communications vehicle posture detection

10.Shield pipe jacking application

11.Ship’s navigation posture measurement

12.Geological equipment inclined monitoring
