IMU406 Inertial Navigation Module Platform Attitude Accurate Measurement

Name: IMU406 Inertial Navigation Module Platform Attitude Accurate Measurement
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: IMU406
Price: 32 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, FCC

Model Number: IMU406

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: US$32

Packaging Details: 1pcs in each inner box , 80pcs in each carton

Delivery Time: 5-10 days

Payment Terms: Paypal , T/T bank wire

Supply Ability: 30000pcs per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Accurate Measurement IMU406, Platform Attitude IMU406, IMU406 Inertial Navigation Module


Operational Bandwidth:	>100Hz	Working Temperature:	-40°C~+80°C
Vibration:	5g~10g	3 Axis Attitude:	Azimuth±180° Roll ±180° Pitch±90°
Starting Time:	500ms	Resolution:	0.01°
Gyro Measure Range:	250°/s	Current:	60mA

Operational Bandwidth:	>100Hz
Working Temperature:	-40°C~+80°C
Vibration:	5g~10g
3 Axis Attitude:	Azimuth±180° Roll ±180° Pitch±90°
Starting Time:	500ms
Resolution:	0.01°
Gyro Measure Range:	250°/s
Current:	60mA

Description

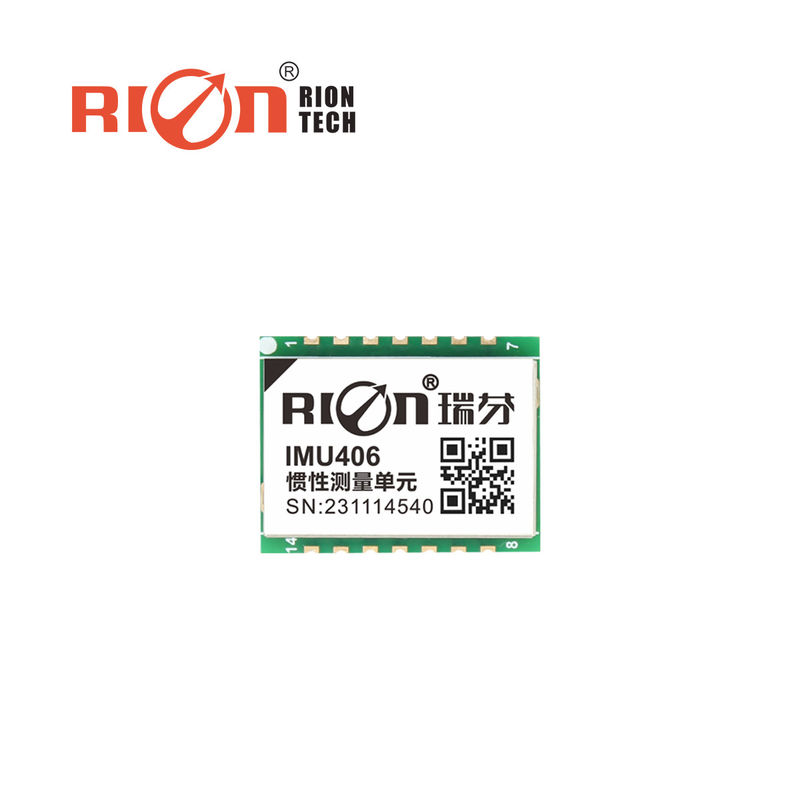

IMU406 Inertial Navigation Module Platform Attitude Accurate Measurement

IMU406 inertial navigation module platform attitude accurate measurement

Product Description:

IMU406 is a professional gyroscope IMU designed for precise measurement and control of platform posture, built-in industrial grade three-axis gyroscope and three-axis accelerometer .This product can still output smooth posture data even when the platform has vibrations. Developed based on the MEMS inertial measurement platform, the dynamic attitude algorithm is applied to the angular rate of the gyroscope to output real-time dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis acceleration, and forward axial body acceleration data of the object; It can also be output through Z-axis single axis integration and real-time feedback counting output; This product is specifically designed for precise control and operation of pan tilt platforms, providing efficiency. It is an essential component for the new generation of automated posture precision control.

Features:

Horizontal azimuth attitude angle output
Real time angular rate output
Lightweight
Long life, strong stability
Industry IMU sensor
All solid state

Technical Parameters:

IMU406			PARAMETER
3 axis attitude			Azimuth±180° Roll ±180° Pitch±90°
Operational bandwidth			>100Hz
Resolution			0.01°
Nonlinear			0.1% of FS
3 axis Gyro	Measure range		250°/s
	Zero bias instability(allan)		4.5°/h
	Angle random walk coefficient(allan)		0.25°/sqrt(h)
	Zero bias stability(10s mean value)		8.5°/h
	Gyroscopic bias(@Temp.-10℃~+65℃)		±0.25°/s(RMS)
3 axis Acceleromation	Measure range		±4g
	Resolution	Test condition @4g	0.001g
	Accuracy		1mg
	Zero bias instability(allan)		0.05mg
	Speed random walk coefficient(allan)		0.015m/s/sqrt(h)
	Zero bias stability(10s mean value)		0.15mg
Starting time			500ms
Input voltage			DC3.3V(ripple wave＜50mVpp)
Current			60mA
Working temperature			-40 ~ +80℃
Storage temperature			-40 ~ +85℃
Vibration			5g~10g
Impact			200g pk,2ms,½sine
Working life			10 years
Output rate			5Hz / 15Hz / 25Hz / 35Hz / 50Hz / 100Hz Can be set
Output signal			3.3V-TTL
MTBF			≥98000 hours /times
Impact resistance			100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration			10grms,10～1000Hz
Weight			≤15g(without cable )

Applications:

★ Precise measurement control of PTZ

★ platform stability monitoring

★ PTZ angle and attitude monitoring

IMU406 Inertial Navigation Module Platform Attitude Accurate Measurement 1

IMU406 Inertial Navigation Module Platform Attitude Accurate Measurement 2

IMU406 Inertial Navigation Module Platform Attitude Accurate Measurement 3
